YR29LV-MRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

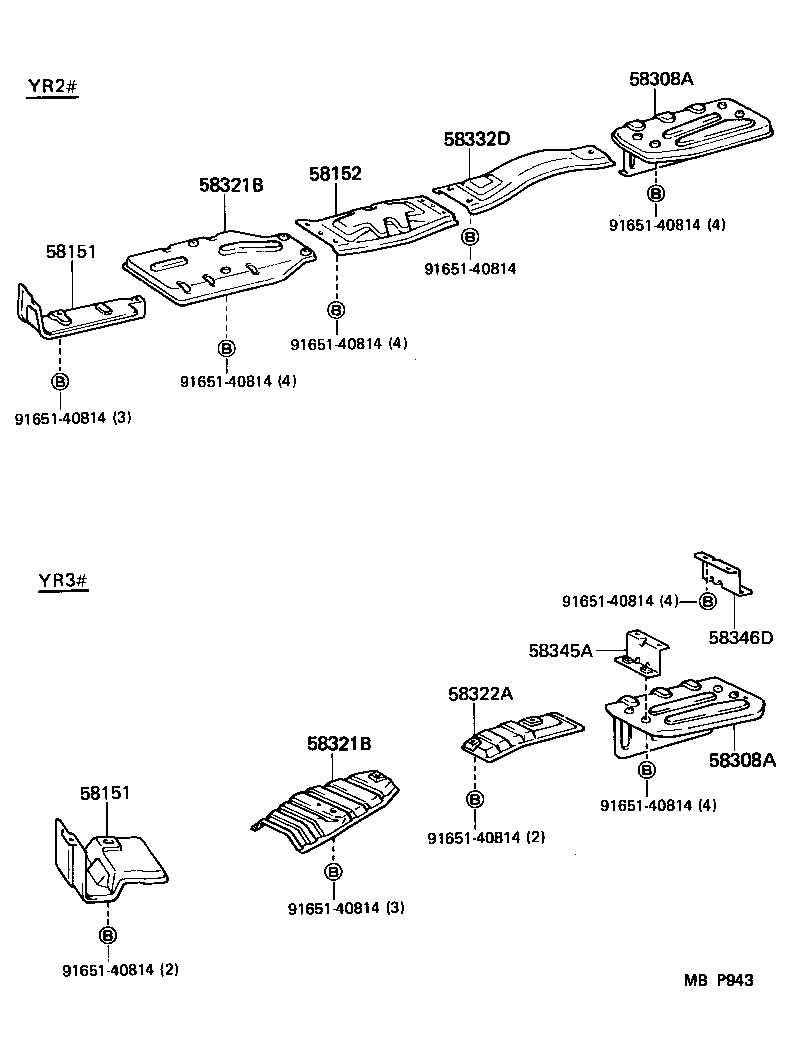

Click highlighted areas on diagram

diagram 58151 58151 58152 58308A 58308A 58321B 58321B 58322A 58332D 58345A 58346D 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-28010

YR29..5F

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-28010

YR29..5F

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-87001

YR29

 1
58308A - PANEL SUB-ASSY, HEAT PROOF
58308-87002

YR2#,3#

 1
58308A - PANEL SUB-ASSY, HEAT PROOF
58308-87002

YR2#,3#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-87004

YR2#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-87004

YR2#

 1
58332D - INSULATOR, REAR FLOOR HEAT, NO.3
58332-87001

YR29

 1
Common parts
91651-40814
