YR29LV-MRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-28030 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-87001 |
YR29,32 |
1 | ||
| 52155-28020 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28010 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52155-87001 |
YR29,32 |
1 | ||
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-28030 |
YR29,32 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-28020 |
YR29,32 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28010 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52159-87001 |
YR29,32 |
1 | ||
| 52191B - GROMMET, REAR BUMPER STAY | ||||
| 52191-28010 |
YR29,32 W(URETHANE BUMPER) |
2 | ||
| 52191-87002 |
YR29,32 |
2 | ||
| 52191B - GROMMET, REAR BUMPER STAY | ||||
| 52191-28010 |
YR29,32 W(URETHANE BUMPER) |
2 | ||
| 52191-87002 |
YR29,32 |
2 | ||
| 52551 - FILLER, REAR BUMPER | ||||
| 52551-28010 |
YR29,32 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52305-28010 |
YR29,32 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-28010 |
YR29,32 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-28010 |
YR29,32 |
1 | ||
| Common parts | ||||
| 90109-06066 | ||||
| 90119-12007 | ||||
| 90179-06007 | ||||
| 90468-04030 | ||||
| 90950-01266 | ||||
| 91655-40620 | ||||
| 93580-15014 | ||||

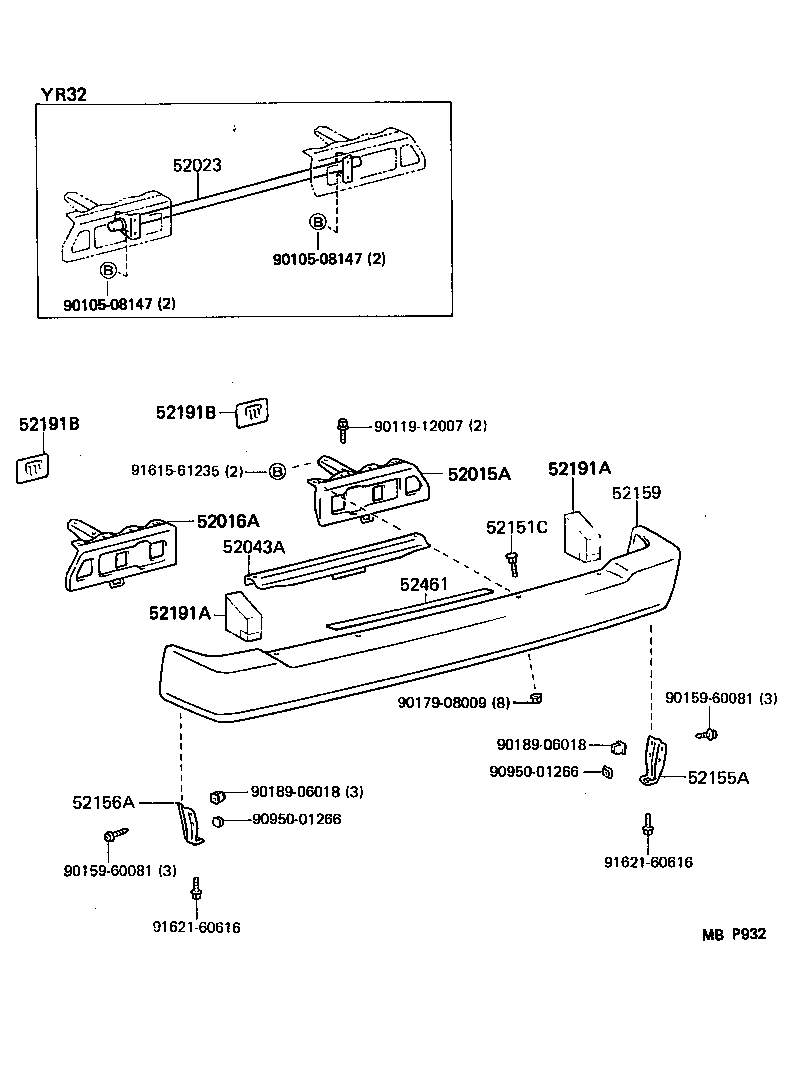

(8808- )YR29,32
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-87002 |
YR29 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-87004 |
YR29 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-28030 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52043A - REINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2 | ||||
| 52043-87001 |
YR29,32 |
1 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08033 |
YR29,32 UPR |
4 | ||
| 90112-08061 |
YR29,32 LWR |
4 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-87001 |
YR29,32 |
1 | ||
| 52155-28020 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28010 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52155-87001 |
YR29,32 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28010 |
YR29,32 W(URETHANE BUMPER) |
1 | ||
| 52159-87001 |
YR29,32 |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52192-87002 |
YR29 |
2 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52192-87002 |
YR29 |
2 | ||
| 52191B - GROMMET, REAR BUMPER STAY | ||||
| 52191-28010 |
YR29,32 W(URETHANE BUMPER) |
2 | ||
| 52191-87002 |
YR29,32 |
2 | ||
| 52191B - GROMMET, REAR BUMPER STAY | ||||
| 52191-28010 |
YR29,32 W(URETHANE BUMPER) |
2 | ||
| 52191-87002 |
YR29,32 |
2 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-87002 |
YR29,32 |
1 | ||
| Common parts | ||||
| 90105-08147 | ||||
| 90119-12007 | ||||
| 90159-60081 | ||||
| 90179-08009 | ||||
| 90189-06018 | ||||
| 90950-01266 | ||||
| 91615-61235 | ||||
| 91621-60616 | ||||
