YR29LV-MRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR2#

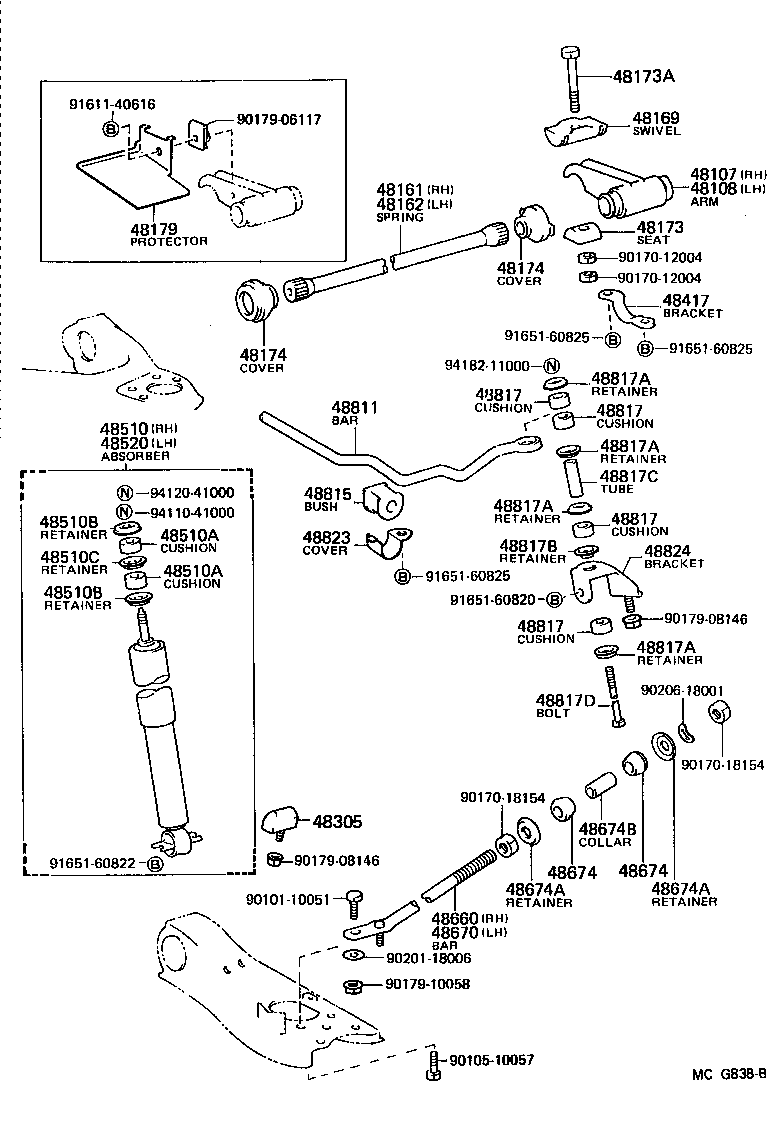

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48179 48305 48417 48510 48510A 48510A 48510B 48510B 48510C 48520 48660 48670 48674 48674 48674A 48674A 48674B 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48817D 48823 48824 9010110051 9010510057 9017012004 9017012004 9017018154 9017018154 9017906117 9017908146 9017908146 9017910058 9020118006 9020618001 9161140616 9165160820 9165160822 9165160825 9165160825 9165160825 9411041000 9412041000 9418211000
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-28010

YR2#,3#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-28010

YR2#,3#

 1
48161 - SPRING, TORSION BAR, RH
48161-28020

YR2#

 1
48162 - SPRING, TORSION BAR, LH
48162-28020

YR2#

 1
48169 - SWIVEL, ANCHOR ARM
48169-28010

YR2#

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

YR2#,3#

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12096

YR2#,3#

 2
48174 - COVER, TORSION BAR DUST
48174-27010

YR2#,3#

FR

 2
48175-27010

YR2#,3#

RR

 2
48174 - COVER, TORSION BAR DUST
48174-27010

YR2#,3#

FR

 2
48175-27010

YR2#,3#

RR

 2
48179 - PROTECTOR, TORSION BAR DUST COVER, LH
48179-27010

YR2#,31

 1
48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2
48305-30030

YR2#,3#

 2
48417 - BRACKET, SPRING
48417-28030

YR2#,3#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29385

YR2#

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01029

YR2#,3#

LWR

 2
90948-01003

YR2#,3#

UPR

 2
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01029

YR2#,3#

LWR

 2
90948-01003

YR2#,3#

UPR

 2
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02076

YR2#,3#

LWR

 2
90948-02002

YR2#,3#

UPR

 2
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02076

YR2#,3#

LWR

 2
90948-02002

YR2#,3#

UPR

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02105

YR2#,3#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29385

YR2#

 1
48660 - BAR ASSY, STRUT, RH
48660-28020

YR2#

 1
48670 - BAR ASSY, STRUT, LH
48670-28020

YR2#

 1
48674 - CUSHION, STRUT BAR
48674-22021

YR2#

 4
48674 - CUSHION, STRUT BAR
48674-22021

YR2#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

YR2#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

YR2#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18002

YR2#

 2
48811 - BAR, STABILIZER, FRONT
48811-28080

YR2#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30100

YR2#,3#

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

YR2#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

YR2#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

YR2#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

YR2#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

YR2#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

YR2#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

YR2#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

YR2#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02005

YR2#,3#

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14004

YR2#

 2
48817D - BOLT(FOR FRONT STABILIZER)
90101-10090

YR2#

 2
48823 - COVER, STABILIZER LINK(FOR FRONT)
48824-28061

YR2#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-27030

YR2#

RH

 1
48829-27030

YR2#

LH

 1
Common parts
90101-10051
90105-10057
90170-12004
90170-18154
90179-06117
90179-08146
90179-10058
90201-18006
90206-18001
91611-40616
91651-60820
91651-60822
91651-60825
94110-41000
94120-41000
94182-11000
