YR29LV-MRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )5F

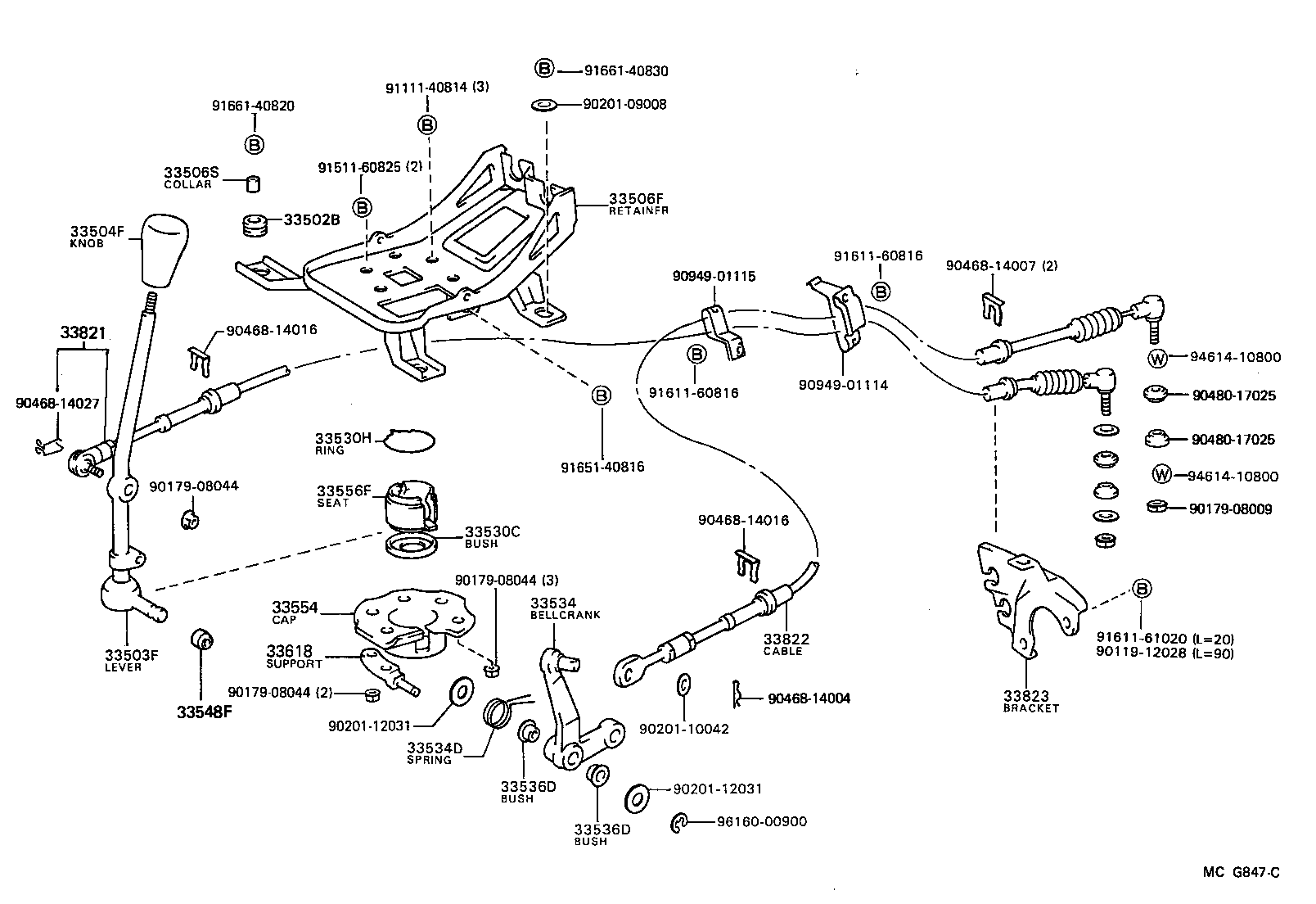

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13012 |
YR2#,3# |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-28010 |
YR2#,3#..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1407014 |
YR29,32..5F BLUE,TRIM8# |
1 | ||
| 33504-1407043 |
YR29,32..5F GRAY,TRIM1# |
1 | ||
| 33504-1407046 |
YR29,32..5F BROWN,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-28140 |
YR2#,3#..5F |
1 | ||
| 33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
YR2#,3#..5F |
4 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 90385-24001 |
YR2#,3#..5F |
1 | ||
| 33530H - RING, SNAP (FOR SHIFT LEVER) | ||||
| 90520-34002 |
YR2#,3#..5F |
1 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-28050 |
YR2#,3#..5F |
1 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-28001 |
YR2#,3#..5F |
1 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-12013 |
YR2#,3#..5F |
2 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-12013 |
YR2#,3#..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
YR2#,3#..5F |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-28060 |
YR2#,3#..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20020 |
YR2#..5F |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-28030 |
YR2#,3#..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-28060 |
YR2#,3#..5F |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-28060 |
YR2#,3#..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-28020 |
YR2#..5F |
1 | ||
| Common parts | ||||
| 90119-12028 | ||||
| 90179-08009 | ||||
| 90179-08044 | ||||
| 90201-09008 | ||||
| 90201-10042 | ||||
| 90201-12031 | ||||
| 90468-14004 | ||||
| 90468-14007 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90480-17025 | ||||
| 90949-01114 | ||||
| 90949-01115 | ||||
| 91111-40814 | ||||
| 91511-60825 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91661-40820 | ||||
| 91661-40830 | ||||
| 94614-10800 | ||||
| 96160-00900 | ||||
