YR29LV-MRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )4YEC..YR29

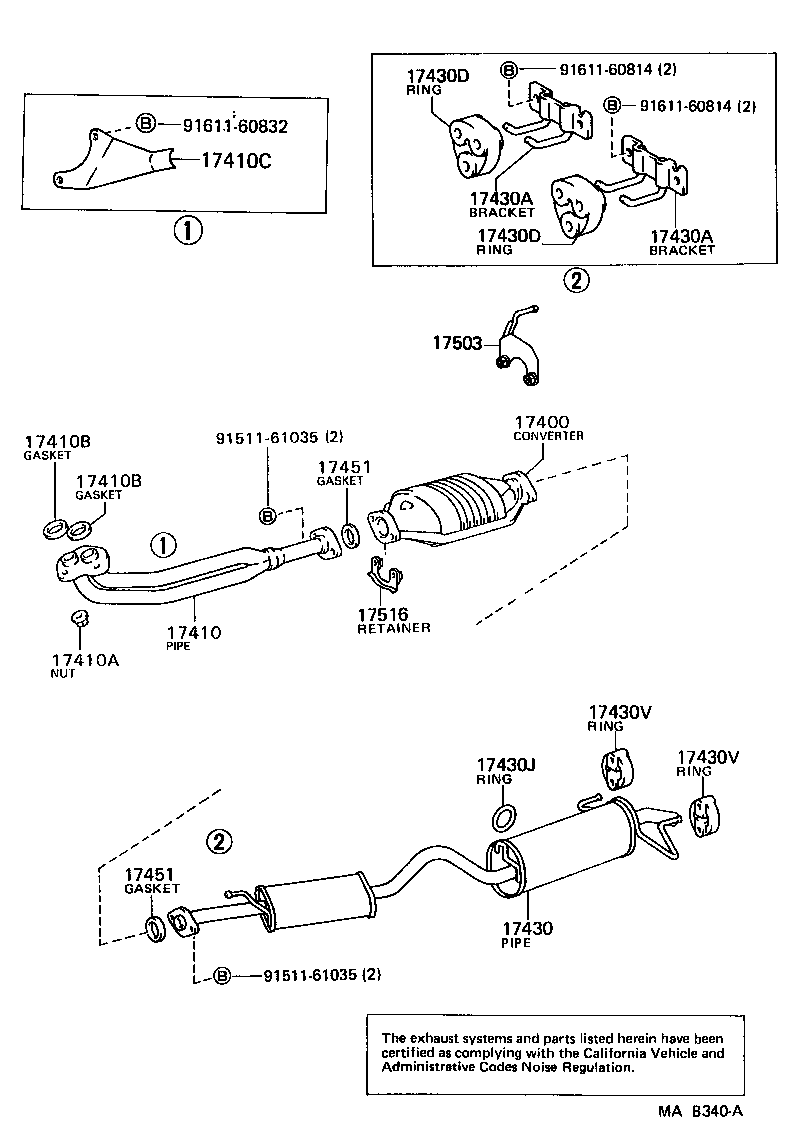

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-73081 |
4YEC..YR2# |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-73090 |
4YEC..YR2# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4YEC..YR2#,3# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4YEC..YR2#,3# |
2 | ||
| 90917-06038 |
4YEC..YR2#,3# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
4YEC..YR2#,3# |
2 | ||
| 90917-06038 |
4YEC..YR2#,3# |
2 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-73120 |
4YEC..YR2# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-73111 |
4YEC..YR29 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-72090 |
4YEC..YR29 |
2 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-72090 |
4YEC..YR29 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17566-35010 |
4YEC..YR29 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17566-35010 |
4YEC..YR29 |
2 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90301-36002 |
4YEC..YR29 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-73020 |
4YEC..YR29 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-73020 |
4YEC..YR29 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
4YEC..YR2#,3# FR |
1 | ||
| 90917-06045 |
4YEC..YR2#,3# RR |
1 | ||
| 90917-06012 |
4YEC..YR2#,3# RR |
1 | ||
| 90917-06044 |
4YEC..YR29 RR |
1 | ||
| 90917-06047 |
4YEC..YR2#,3# RR |
1 | ||
| 90917-06023 |
4YEC..YR2#,3# FR |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
4YEC..YR2#,3# FR |
1 | ||
| 90917-06045 |
4YEC..YR2#,3# RR |
1 | ||
| 90917-06012 |
4YEC..YR2#,3# RR |
1 | ||
| 90917-06044 |
4YEC..YR29 RR |
1 | ||
| 90917-06047 |
4YEC..YR2#,3# RR |
1 | ||
| 90917-06023 |
4YEC..YR2#,3# FR |
1 | ||
| 17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR | ||||
| 17503-73070 |
4YEC..YR29 |
1 | ||
| 17516 - RETAINER, EXHAUST PIPE, NO.2 | ||||
| 18495-71010 |
4YEC..YR29 |
1 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91611-60814 | ||||
| 91611-60832 | ||||
