YR29LV-MRBEA (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)

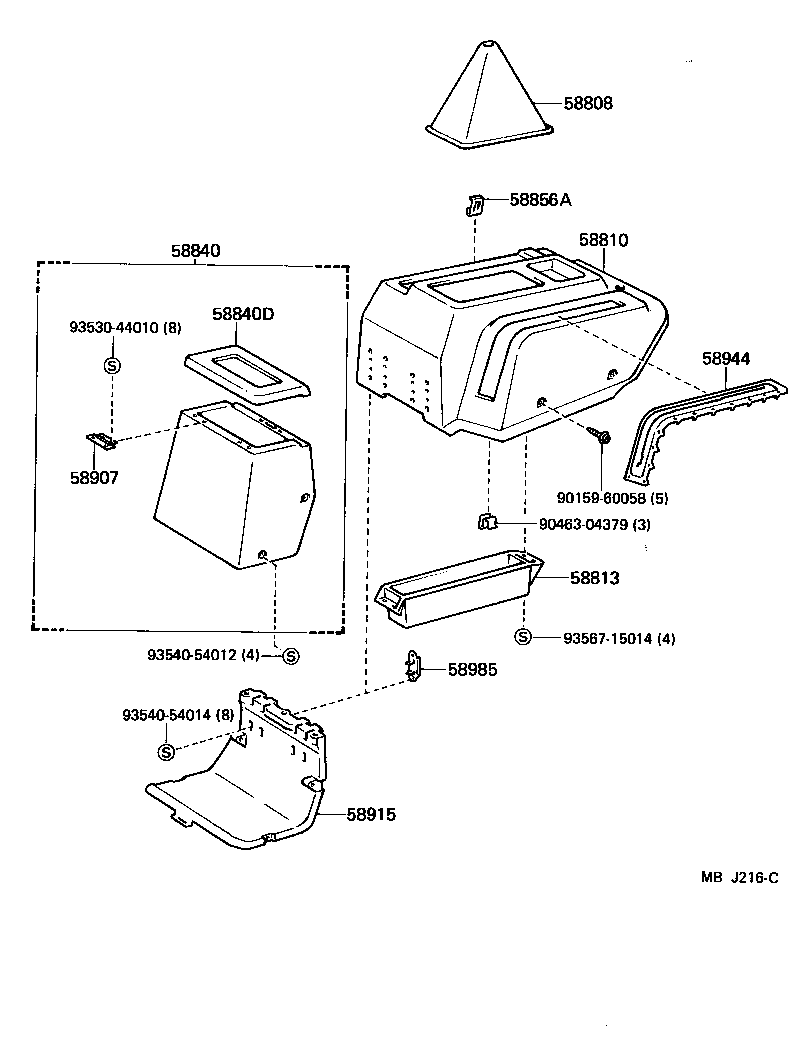

Click highlighted areas on diagram

diagram 58808 58810 58813 58840 58840D 58856A 58907 58915 58944 58985 9015960058 9046304379 9353044010 9354054012 9354054014 9356715014
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-8700105

YR2#..5F

BEIGE,BEIGE,TRIM4#

 1
58808-8700206

YR2#,3#..5F

BROWN,BROWN,TRIM4#

 1
58808-8700204

YR2#..5F..(LE,STD)

BLUE,BLUE,TRIM4#,8#

 1
58808-8700203

YR29,3#..5F

GRAY,SHADOW GRAY,TRIM1#

 1
58808-8700203

YR2#,3#..5F

GRAY,SHADOW GRAY,TRIM1#

 1
58808-8700203

YR29..5F

GRAY,SHADOW GRAY,TRIM4#

 1
58810 - CONSOLE ASSY
58810-2801005

YR2#..5F..(DLX,STD)

BEIGE,BEIGE,TRIM4#

 1
58811-2803006

YR2#..DLX,STD

BROWN,BROWN,TRIM4#

 1
58811-2803004

YR29

BLUE,BLUE,TRIM4#

 1
58811-2803103

YR29,32

GRAY,SHADOW GRAY,TRIM1#

 1
58811-2803003

YR29

GRAY,SHADOW GRAY,TRIM4#

 1
58811-2803103

YR2#,3#..DLX,STD

GRAY,SHADOW GRAY,TRIM1#

 1
58811-2803106

YR2#,3#..DLX,STD

BROWN,BROWN,TRIM4#

 1
58813 - BOX, CONSOLE, UPPER
58813-8700103

YR2#..LE,STD

GRAY,SHADOW GRAY,TRIM1#

 1
58813-8700104

YR2#..LE,STD

BLUE,BLUE,TRIM4#

 1
58813-8700106

YR2#

BROWN,BROWN,TRIM4#

 1
58813-8700103

YR2#

GRAY,SHADOW GRAY,TRIM1#

 1
58856A - HOLDER, CONSOLE BOX
58856-28010

YR2#,3#..5F

 1
58944 - COVER, PARKING BRAKE HOLE
58941-28010

YR2#

 1
58941-28020

YR2#,3#

 1
Common parts
90159-60058
90463-04379
93530-44010
93540-54012
93540-54014
93567-15014

(8608- )

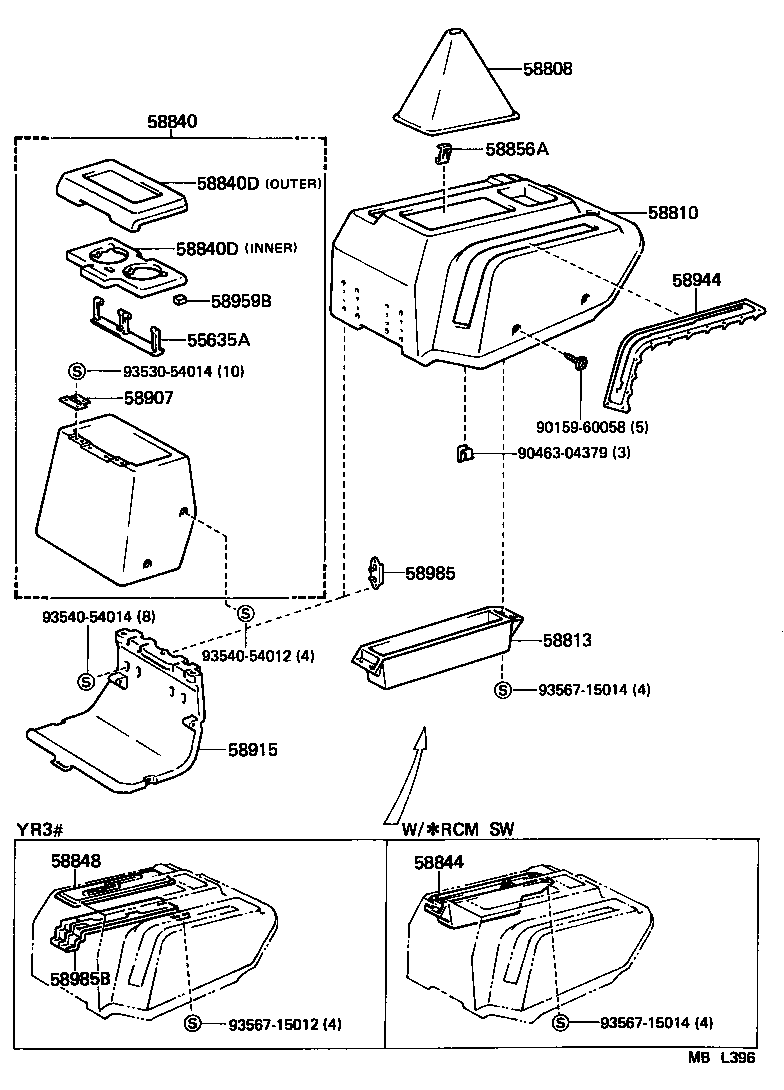

Click highlighted areas on diagram

diagram 55635A 58808 58810 58813 58840 58840D 58840D 58844 58848 58856A 58907 58915 58944 58959B 58985 58985B 9015960058 9046304379 9353054014 9354054012 9354054014 9356715012 9356715014 9356715014
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-8700105

YR2#..5F

BEIGE,BEIGE,TRIM4#

 1
58808-8700206

YR2#,3#..5F

BROWN,BROWN,TRIM4#

 1
58808-8700204

YR2#..5F..(LE,STD)

BLUE,BLUE,TRIM4#,8#

 1
58808-8700203

YR29,3#..5F

GRAY,SHADOW GRAY,TRIM1#

 1
58808-8700203

YR2#,3#..5F

GRAY,SHADOW GRAY,TRIM1#

 1
58808-8700203

YR29..5F

GRAY,SHADOW GRAY,TRIM4#

 1
58810 - CONSOLE ASSY
58810-2801005

YR2#..5F..(DLX,STD)

BEIGE,BEIGE,TRIM4#

 1
58811-2803006

YR2#..DLX,STD

BROWN,BROWN,TRIM4#

 1
58811-2803004

YR29

BLUE,BLUE,TRIM4#

 1
58811-2803103

YR29,32

GRAY,SHADOW GRAY,TRIM1#

 1
58811-2803003

YR29

GRAY,SHADOW GRAY,TRIM4#

 1
58811-2803103

YR2#,3#..DLX,STD

GRAY,SHADOW GRAY,TRIM1#

 1
58811-2803106

YR2#,3#..DLX,STD

BROWN,BROWN,TRIM4#

 1
58813 - BOX, CONSOLE, UPPER
58813-8700103

YR2#..LE,STD

GRAY,SHADOW GRAY,TRIM1#

 1
58813-8700104

YR2#..LE,STD

BLUE,BLUE,TRIM4#

 1
58813-8700106

YR2#

BROWN,BROWN,TRIM4#

 1
58813-8700103

YR2#

GRAY,SHADOW GRAY,TRIM1#

 1
58856A - HOLDER, CONSOLE BOX
58856-28010

YR2#,3#..5F

 1
58944 - COVER, PARKING BRAKE HOLE
58941-28010

YR2#

 1
58941-28020

YR2#,3#

 1
Common parts
90159-60058
90463-04379
93530-54014
93540-54012
93540-54014
93567-15012
93567-15014
