YR29LV-MRBEA (1988)
Toyota Van

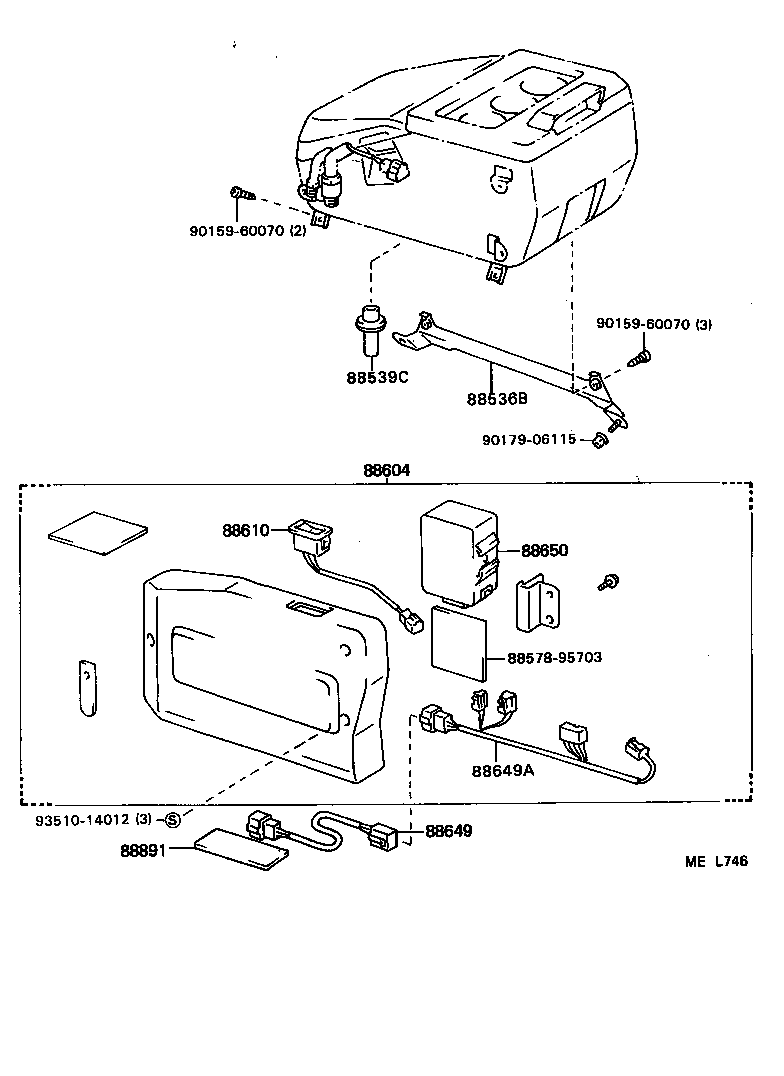

ILLUST NO. 3 OF 4(8808- )YR2#,31
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-28020 |
YR22;YR29..USA |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-87007 |
YR22;YR29..USA |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-2801103 |
YR22;YR29..USA GRAY,TRIM1# |
1 | ||
| 88604-2801126 |
YR22;YR29..USA LIGHT SABLE,TRIM4# |
1 | ||
| 88604-2801134 |
YR22;YR29..USA LIGHT BLUE,TRIM8# |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28021 |
YR22;YR29..USA |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-87008 |
YR22;YR29..USA |
1 | ||
| 88649A - WIRING, COOLER, NO.3 | ||||
| 88648-28041 |
YR22;YR29..USA |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28010 |
YR29..USA |
1 | ||
| 88650-14051 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88650-87011 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88899-28030 |
YR22;YR29..USA |
1 | ||
| Common parts | ||||
| 88578-95703 | ||||
| 90159-60070 | ||||
| 90179-06115 | ||||
| 93510-14012 | ||||

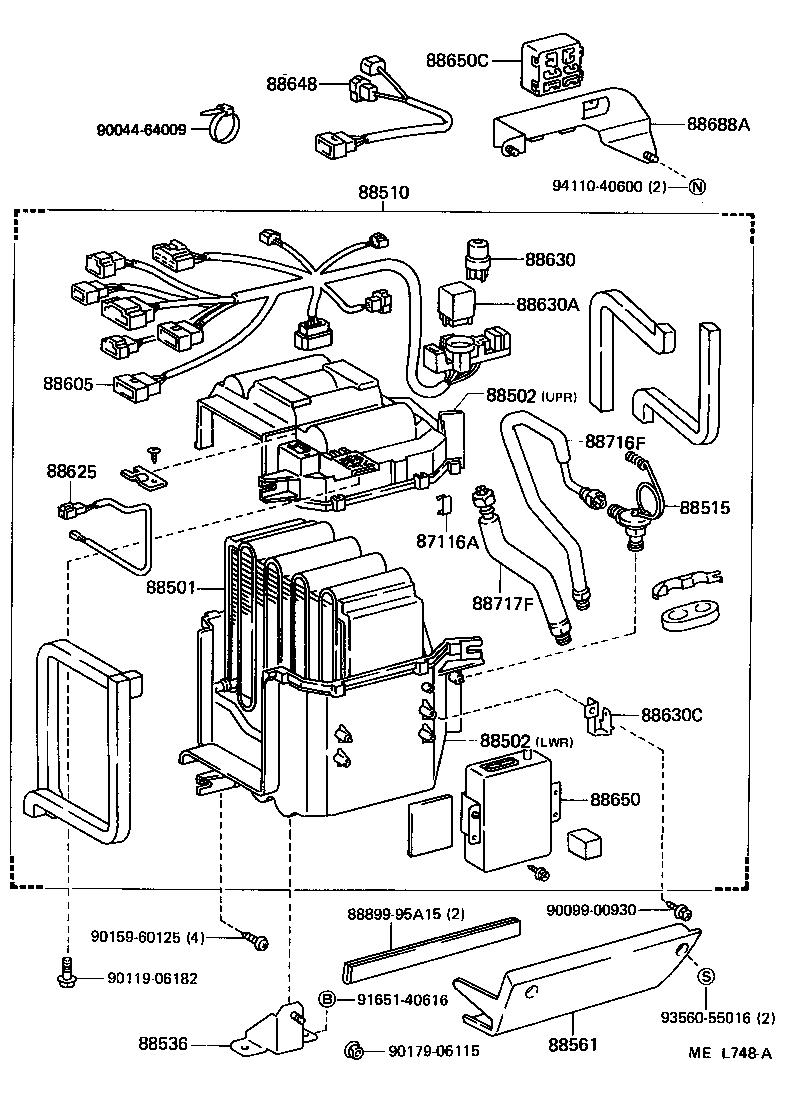

ILLUST NO. 1 OF 4(8808- )YR2#,31
FRONT,MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
YR29..USA |
7 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR22;YR29..USA REAR |
1 | ||
| 88501-28011 |
YR29..USA FRONT |
1 | ||
| 88501-87008 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28060 |
YR29..USA UPPER |
1 | ||
| 88502-2808024 |
YR22;YR29..USA COOL BOX,BLUE,BLUE,TRIM8# |
1 | ||
| 88502-28070 |
YR29..USA LOWER |
1 | ||
| 88502-2808026 |
YR22;YR29..USA COOL BOX,SABLE,SABLE,TRIM4# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28060 |
YR29..USA UPPER |
1 | ||
| 88502-2808024 |
YR22;YR29..USA COOL BOX,BLUE,BLUE,TRIM8# |
1 | ||
| 88502-28070 |
YR29..USA LOWER |
1 | ||
| 88502-2808026 |
YR22;YR29..USA COOL BOX,SABLE,SABLE,TRIM4# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28160 |
YR2#,3# FRONT,DEALER OPTION |
1 | ||
| 88510-28160 |
YR29..USA FRONT,DEALER OPTION |
1 | ||
| 88510-87011 |
YR29..USA REAR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88515-87004 |
YR29..USA FRONT |
1 | ||
| 88515-87002 |
YR22;YR29..USA REAR |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-28010 |
YR29..USA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28131 |
YR29..USA |
1 | ||
| 88605-28170 |
YR2# W(FRONT AIR CONDITIONER) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR29..USA FRONT |
1 | ||
| 88625-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88625-20060 |
YR22;YR29..USA REAR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
YR29..USA |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 85913-30020 |
YR29..USA |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28060 |
YR29..USA |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28010 |
YR29..USA |
1 | ||
| 88650-14051 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88650-87011 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28020 |
YR29..USA |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-87042 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88716-28120 |
YR29..USA |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-87036 |
YR22;YR29..USA W(AIR CONDITIONER & ICE COOL BOX) |
1 | ||
| 88717-28110 |
YR29..USA |
1 | ||
| Common parts | ||||
| 88899-95A15 | ||||
| 90044-64009 | ||||
| 90099-00930 | ||||
| 90119-06182 | ||||
| 90159-60125 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 93560-55016 | ||||
| 94110-40600 | ||||

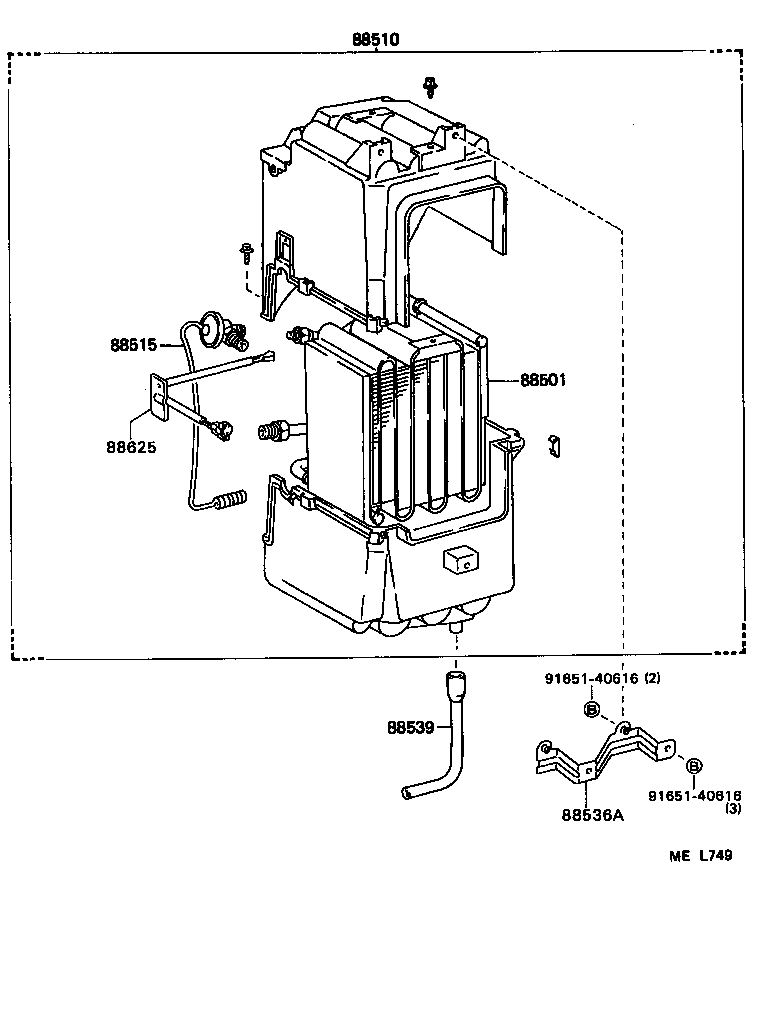

ILLUST NO. 2 OF 4(8808- )YR2#,31
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR22;YR29..USA REAR |
1 | ||
| 88501-28011 |
YR29..USA FRONT |
1 | ||
| 88501-87008 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28160 |
YR2#,3# FRONT,DEALER OPTION |
1 | ||
| 88510-28160 |
YR29..USA FRONT,DEALER OPTION |
1 | ||
| 88510-87011 |
YR29..USA REAR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88515-87004 |
YR29..USA FRONT |
1 | ||
| 88515-87002 |
YR22;YR29..USA REAR |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-87014 |
YR29..USA |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95701 |
YR29..USA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR29..USA FRONT |
1 | ||
| 88625-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88625-20060 |
YR22;YR29..USA REAR |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||

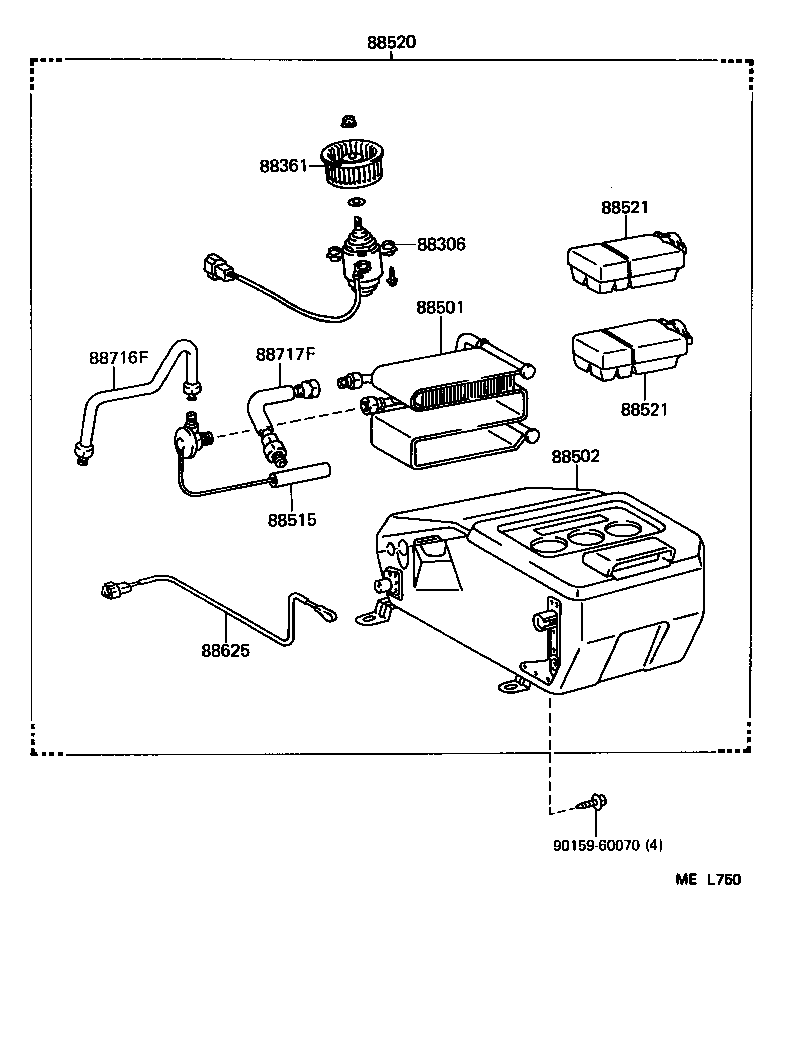

ILLUST NO. 4 OF 4(8808- )YR2#,31
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-87008 |
YR22;YR29..USA |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
YR22;YR29..USA |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR22;YR29..USA REAR |
1 | ||
| 88501-28011 |
YR29..USA FRONT |
1 | ||
| 88501-87008 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28060 |
YR29..USA UPPER |
1 | ||
| 88502-2808024 |
YR22;YR29..USA COOL BOX,BLUE,BLUE,TRIM8# |
1 | ||
| 88502-28070 |
YR29..USA LOWER |
1 | ||
| 88502-2808026 |
YR22;YR29..USA COOL BOX,SABLE,SABLE,TRIM4# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88515-87004 |
YR29..USA FRONT |
1 | ||
| 88515-87002 |
YR22;YR29..USA REAR |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-2802024 |
YR22;YR29..USA BLUE,TRIM8# |
1 | ||
| 88520-2802026 |
YR22;YR29..USA SABLE,TRIM4# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-28020 |
YR22;YR29..USA |
2 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-28020 |
YR22;YR29..USA |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR29..USA FRONT |
1 | ||
| 88625-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88625-20060 |
YR22;YR29..USA REAR |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-87042 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88716-28120 |
YR29..USA |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-28110 |
YR29..USA |
1 | ||
| 88717-87036 |
YR22;YR29..USA W(AIR CONDITIONER & ICE COOL BOX) |
1 | ||
| Common parts | ||||
| 90159-60070 | ||||

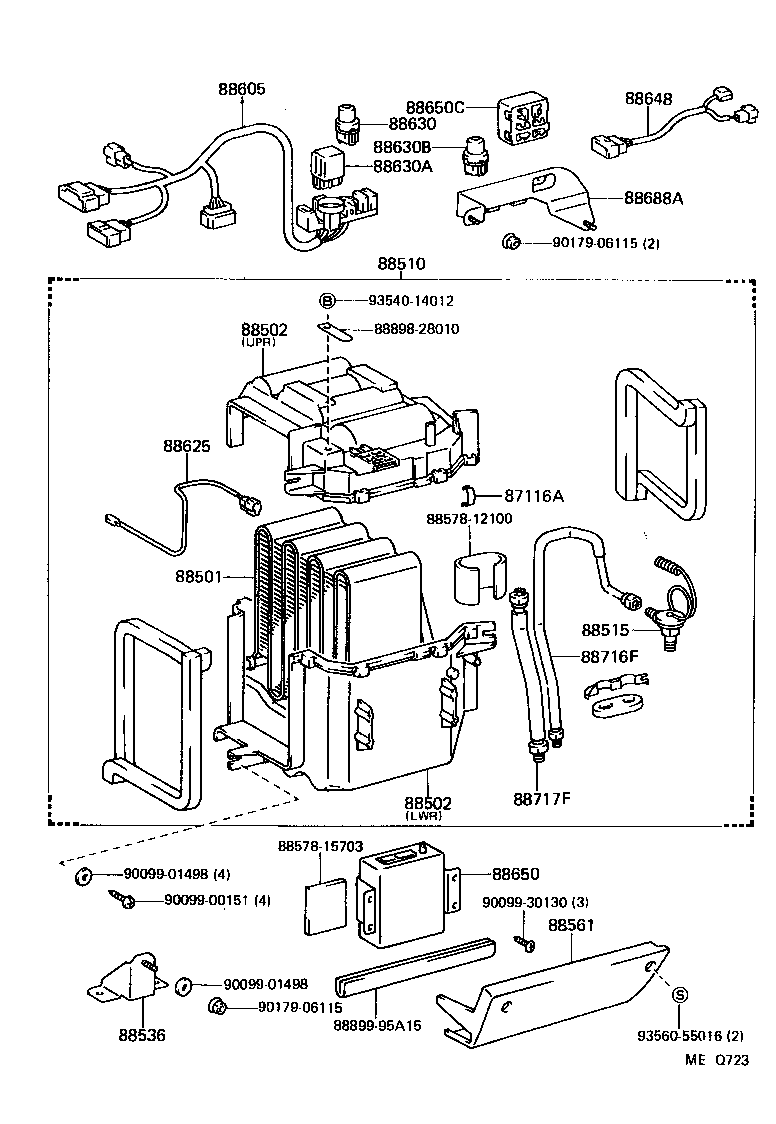

ILLUST NO. 1 OF 4(8808- )YR2#,31
FRONT,DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
YR29..USA |
7 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR22;YR29..USA REAR |
1 | ||
| 88501-28011 |
YR29..USA FRONT |
1 | ||
| 88501-87008 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28060 |
YR29..USA UPPER |
1 | ||
| 88502-2808024 |
YR22;YR29..USA COOL BOX,BLUE,BLUE,TRIM8# |
1 | ||
| 88502-28070 |
YR29..USA LOWER |
1 | ||
| 88502-2808026 |
YR22;YR29..USA COOL BOX,SABLE,SABLE,TRIM4# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28060 |
YR29..USA UPPER |
1 | ||
| 88502-2808024 |
YR22;YR29..USA COOL BOX,BLUE,BLUE,TRIM8# |
1 | ||
| 88502-28070 |
YR29..USA LOWER |
1 | ||
| 88502-2808026 |
YR22;YR29..USA COOL BOX,SABLE,SABLE,TRIM4# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28160 |
YR2#,3# FRONT,DEALER OPTION |
1 | ||
| 88510-28160 |
YR29..USA FRONT,DEALER OPTION |
1 | ||
| 88510-87011 |
YR29..USA REAR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88515-87004 |
YR29..USA FRONT |
1 | ||
| 88515-87002 |
YR22;YR29..USA REAR |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-28010 |
YR29..USA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28131 |
YR29..USA |
1 | ||
| 88605-28170 |
YR2# W(FRONT AIR CONDITIONER) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR29..USA FRONT |
1 | ||
| 88625-87003 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88625-20060 |
YR22;YR29..USA REAR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
YR29..USA |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 85913-30020 |
YR29..USA |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95702 |
YR2# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28060 |
YR29..USA |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28010 |
YR29..USA |
1 | ||
| 88650-14051 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88650-87011 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28020 |
YR29..USA |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-87042 |
YR22;YR29..USA COOL BOX |
1 | ||
| 88716-28120 |
YR29..USA |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-28110 |
YR29..USA |
1 | ||
| 88717-87036 |
YR22;YR29..USA W(AIR CONDITIONER & ICE COOL BOX) |
1 | ||
| Common parts | ||||
| 88578-12100 | ||||
| 88578-15703 | ||||
| 88898-28010 | ||||
| 88899-95A15 | ||||
| 90099-00151 | ||||
| 90099-01498 | ||||
| 90099-30130 | ||||
| 90179-06115 | ||||
| 93540-14012 | ||||
| 93560-55016 | ||||
