YR27LV-MREK (1983)

Toyota Van

Production Nov 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )YR27,29,32

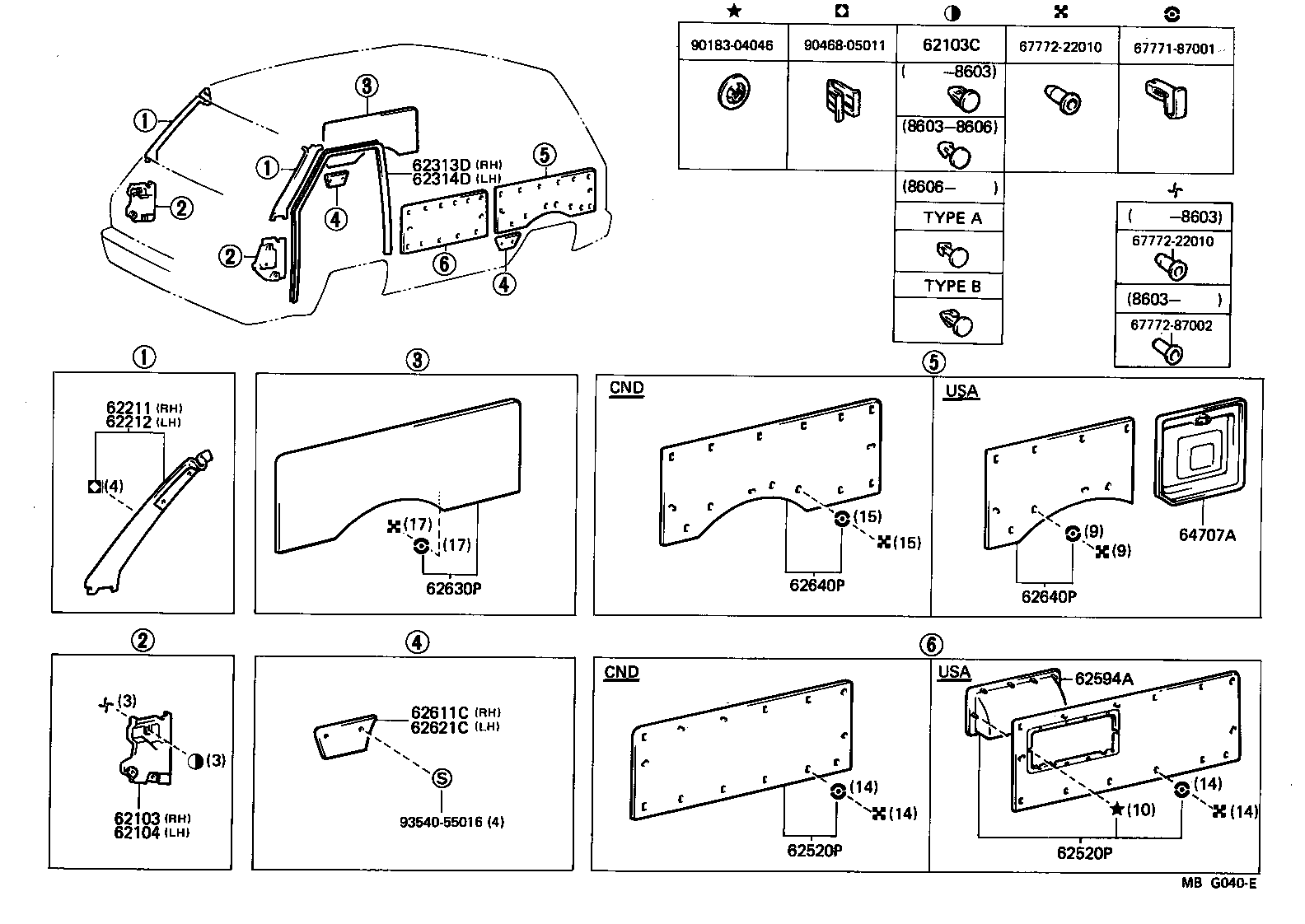

Click highlighted areas on diagram

diagram 62103 62103C 62104 62211 62212 62313D 62314D 62520P 62520P 62594A 62611C 62621C 62630P 62640P 62640P 64707A 6777187001 6777222010 6777222010 6777287002 9018304046 9046805011 9354055016
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62111-2801005

YR2#

BEIGE,BEIGE,TRIM4#

 1
62111-2801002

YR2#

WINE,WINE,TRIM4#

 1
62103C - CLIP, COWL SIDE TRIM BOARD SET
90467-1207805

YR2#

BEIGE,BEIGE,TRIM4#

 6
90467-1207822

YR2#

WINE,WINE,TRIM4#

 6
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62112-8700302

YR2#

WINE,WINE,TRIM4#

 1
62112-8700305

YR2#

BEIGE,BEIGE,TRIM4#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-28020

YR2#..DLX,STD

BEIGE

 1
62211-2802015

YR2#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-28020

YR2#..DLX,STD

BEIGE

 1
62212-2802015

YR2#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-2801015

YR2#

W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#

 1
62311-2801005

YR2#

W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#

 1
62313-2801005

YR2#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-2801005

YR2#..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
62312-2801005

YR2#

W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#

 1
62312-2801015

YR2#

W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-28080

YR27..CND

 1
62520-28090

YR27

W/RR HEATER

 1
62520-2809002

YR27

W/RR HEATER,WINE,WINE,TRIM4#

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-28080

YR27..CND

 1
62520-28090

YR27

W/RR HEATER

 1
62520-2809002

YR27

W/RR HEATER,WINE,WINE,TRIM4#

 1
62594A - POCKET, QUARTER TRIM, NO.1
62594-87003

YR27

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-28070

YR27..CND

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-28070

YR27..CND

 1
64707A - COVER SUB-ASSY, QUARTER TRIM TOOL
64707-8700203

YR21,22,29,3#..LE,STD

GRAY,GRAY,TRIM1#,4#,8#

 1
Common parts
67771-87001
67772-22010
67772-87002
90183-04046
90468-05011
93540-55016
