YR27LV-MREK (1983)

Toyota Van

Production Nov 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)YR27..CND

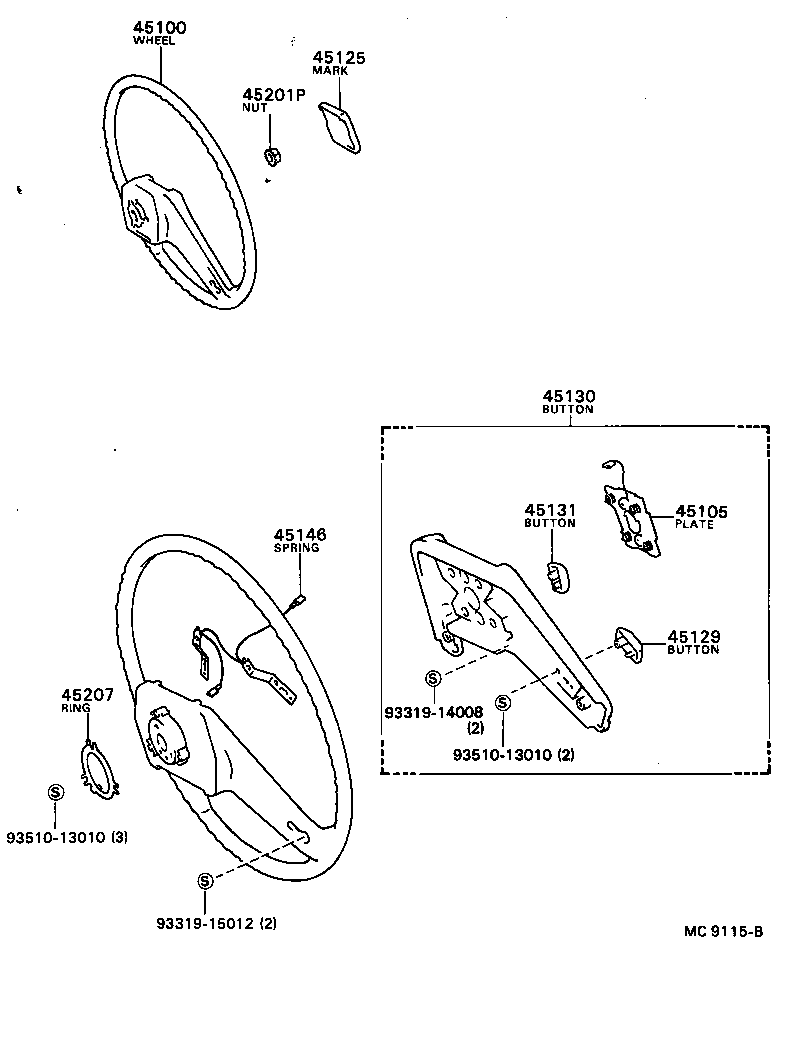

Click highlighted areas on diagram

diagram 45100 45105 45125 45129 45130 45131 45146 45201P 45207 9331914008 9331915012 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3201002

YR27..CND

WINE,RED/MAROON,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32010

YR27..CND

 1
45125 - MARK, STEERING WHEEL PAD
45125-2806002

YR2#..CND

WINE,RED/MAROON,TRIM4#

 1
45125-2806002

YR27..CND

WINE,RED/MAROON,TRIM4#

 1
45129 - BUTTON, HORN, NO.2
45129-3201012

YR2#..CND

WINE,RED/MAROON,TRIM4#

 1
45129-3201012

YR27..CND

WINE,RED/MAROON,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-3201002

YR27..CND

WINE,RED/MAROON,TRIM4#

 1
45131 - BUTTON, HORN, NO.1
45131-3201002

YR2#..CND

WINE,RED/MAROON,TRIM4#

 1
45131-3201002

YR27..CND

WINE,RED/MAROON,TRIM4#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-32010

YR27..CND

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

YR2#,3#

 1
Common parts
93319-14008
93319-15012
93510-13010
