YR27LV-MREK (1983)

Toyota Van

Production Nov 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508) ; (8508- )4YEC..YR22

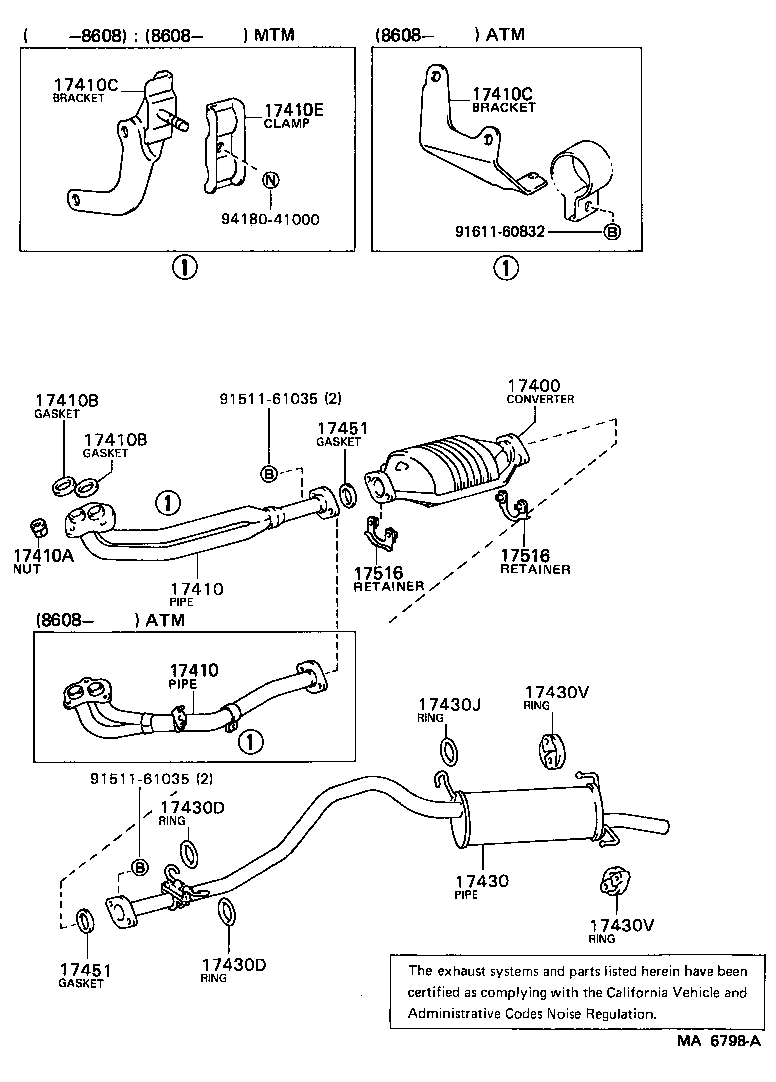

Click highlighted areas on diagram

diagram 17400 17410 17410 17410A 17410B 17410B 17410C 17410C 17410E 17430 17430D 17430D 17430J 17430V 17430V 17451 17451 17516 17516 9151161035 9151161035 9161160832 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-73010

3YEC..YR2#

 1
17410-73080

3YEC..YR27..CND

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-73010

3YEC..YR2#

 1
17410-73080

3YEC..YR27..CND

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

3YEC..YR2#

 3
17410B - GASKET, EXHAUST PIPE
90917-06026

3YEC,4YEC..YR2#,3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06026

3YEC,4YEC..YR2#,3#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-71010

3YEC..YR2#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-71010

3YEC..YR2#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17599-71010

3YEC,4YEC..YR2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-73010

3YEC..YR2#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

3YEC..YR2#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

3YEC..YR2#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

3YEC,4YEC..YR2#,3#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-15010

3YEC..YR2#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-15010

3YEC..YR2#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

3YEC,4YEC..YR2#,3#

RR

 1
90917-06023

3YEC,4YEC..YR2#,3#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

3YEC,4YEC..YR2#,3#

RR

 1
90917-06023

3YEC,4YEC..YR2#,3#

FR

 1
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-71010

3YEC,4YEC..YR2#,3#

 2
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-71010

3YEC,4YEC..YR2#,3#

 2
Common parts
91511-61035
91611-60832
94180-41000
