YR22LG-PQEK (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

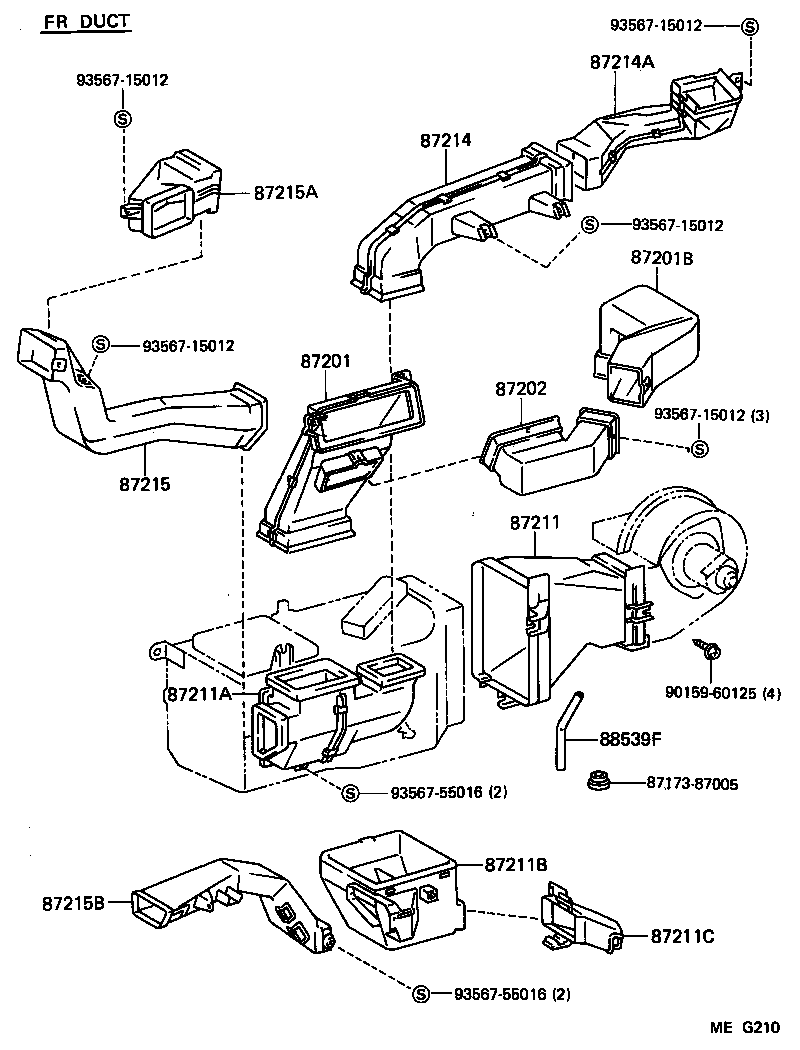

ILLUST NO. 3 OF 6(8508- )

Click highlighted areas on diagram

diagram 8717387005 87201 87201B 87202 87211 87211A 87211B 87211C 87214 87214A 87215 87215A 87215B 88539F 9015960125 9356715012 9356715012 9356715012 9356715012 9356715012 9356755016 9356755016
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-28030

YR2#,3#

 1
55086-28020

YR2#

 1
55086-28010

YR2#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
55076-28010

YR2#,3#

 1
87202 - DUCT, HEATER AIR
87202-87004

YR22..LE

RR DUCT

 1
55832-28010

YR2#,3#

FR DUCT

 1
87211 - DUCT, AIR, NO.1
87201-28020

YR2#,3#

 1
87211A - DUCT, AIR, NO.2
87201-28040

YR2#

 1
87201-28010

YR2#

 1
87201-28010

YR2#,3#

 1
87211C - DUCT, AIR, NO.4
87211-28010

YR2#,3#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55087-28010

YR2#

 1
55087-28020

YR2#,3#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55088-28010

YR2#,3#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-28010

YR2#

 1
55085-28020

YR2#,3#

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55084-28020

YR2#,3#

 1
55084-28010

YR2#

 1
87215B - DUCT, AIR, SIDE NO.3 LH
87211-28020

YR2#

 1
88539F - HOSE, DRAIN
88539-22011

YR2#,3#

 1
Common parts
87173-87005
90159-60125
93567-15012
93567-55016

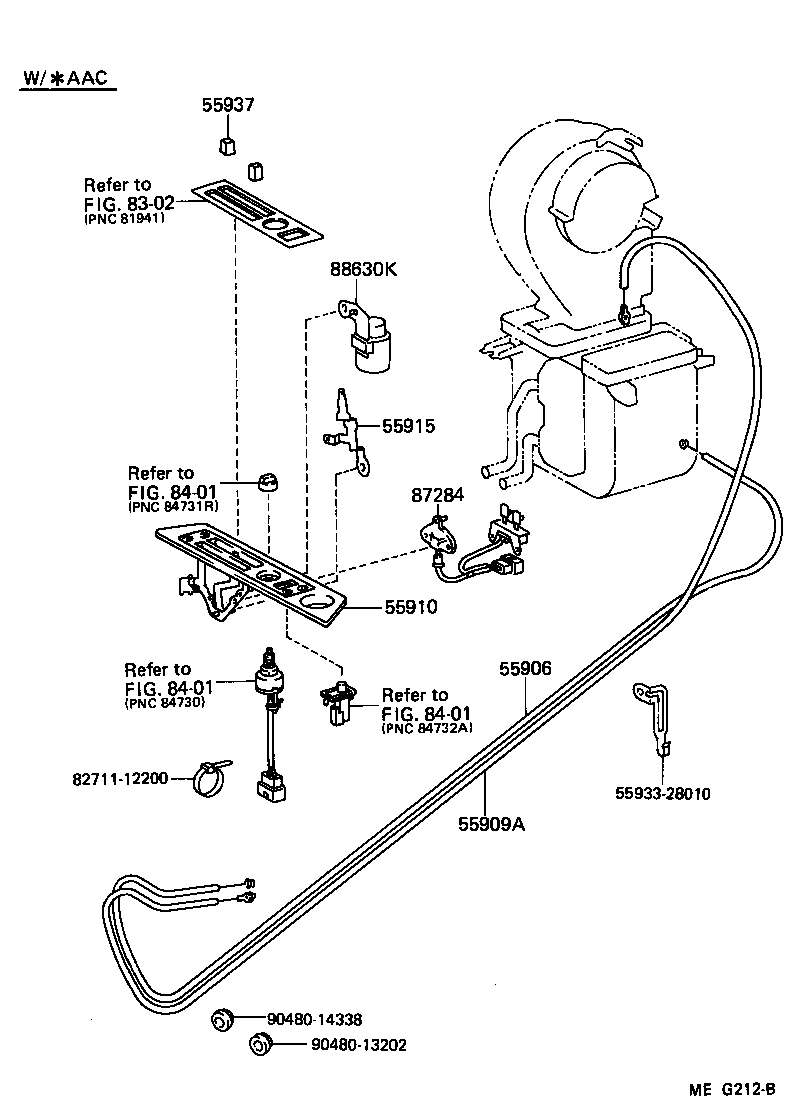

ILLUST NO. 2 OF 6(8508-8608)

Click highlighted areas on diagram

diagram 55906 55909A 55910 55915 5593328010 55937 8271112200 8302 8401 8401 8401 87284 88630K 9048013202 9048014338
Part # Description Qty Price
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-28020

YR2#,3#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-28040

YR22..LE

RR,W/*AAC

 1
55909-28030

YR22..LE

FR,W/*AAC

 1
55909-28010

YR2#,3#

FR HEATER

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-87006

YR2#

FR,W/FR HEATER

 1
55910-2801114

YR22

RR,W/RR COOLER,BLUE,BLUE,TRIM1#,8#

 1
55910-2804004

YR22..LE

RR,W/*AAC,BLUE,BLUE,TRIM8#

 1
55910-2801103

YR22

RR,W/RR COOLER,GRAY,SHADOW GRAY,TRIM1#

 1
55910-2802114

YR2#,3#

RR,BLUE,BLUE,TRIM1#,4#,8#

 1
55910-2801106

YR22,31

RR,W/RR COOLER,BROWN,BROWN,TRIM4#

 1
55910-2804006

YR22..LE

RR,W/*AAC,BROWN,BROWN,TRIM4#

 1
55910-2802106

YR2#,3#

RR,BROWN,BROWN,TRIM4#

 1
55910-2802103

YR22

RR,GRAY,SHADOW GRAY,TRIM1#

 1
55915 - LEVER, COOLER CONTROL
55915-28010

YR22..LE

W/*AAC

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

YR2#,3#

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-28010

YR22..LE

FR,W/*AAC

 1
88032-28021

YR22,31..LE

RR

 1
88630K - RELAY ASSY
88630-28030

YR22..LE

W/*AAC

 1
Common parts
55933-28010
82711-12200
90480-13202
90480-14338
Linked diagrams
8302
8401

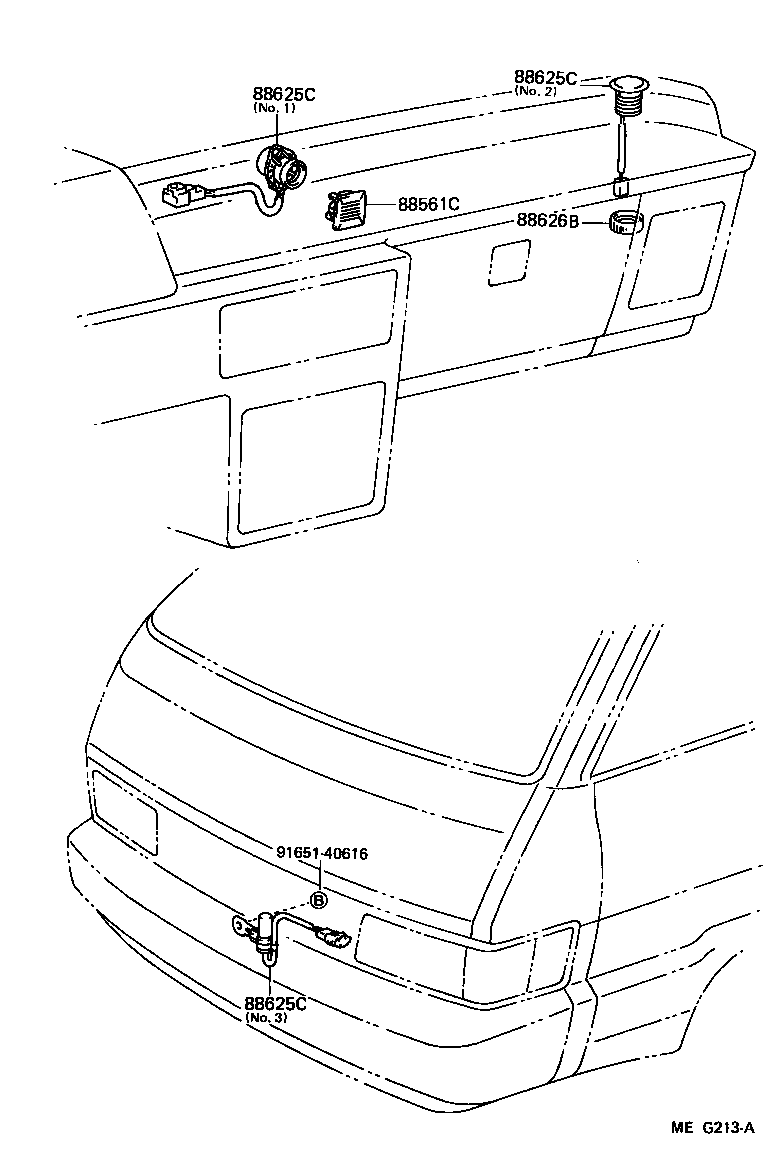

ILLUST NO. 6 OF 6(8508-8608)

Click highlighted areas on diagram

diagram 88561C 88625C 88625C 88625C 88626B 9165140616
Part # Description Qty Price
88561C - GRILLE, COOLER AIR INLET
88561-2801106

YR22..LE

BROWN,W/*AAC,BROWN,TRIM4#

 1
88561-2801104

YR22..LE

BLUE,W/*AAC,BLUE,TRIM8#

 1
88625C - THERMISTOR, COOLER
88625-28011

YR22..LE

W/*AAC(NO.1)

 1
88625-28030

YR22..LE

W/*AAC(NO.3)

 1
88625-28020

YR22..LE

W/*AAC(NO.2)

 1
88625C - THERMISTOR, COOLER
88625-28011

YR22..LE

W/*AAC(NO.1)

 1
88625-28030

YR22..LE

W/*AAC(NO.3)

 1
88625-28020

YR22..LE

W/*AAC(NO.2)

 1
88625C - THERMISTOR, COOLER
88625-28011

YR22..LE

W/*AAC(NO.1)

 1
88625-28030

YR22..LE

W/*AAC(NO.3)

 1
88625-28020

YR22..LE

W/*AAC(NO.2)

 1
88626B - HOLDER, THERMISTOR
88518-28010

YR22..LE

W/*AAC

 1
Common parts
91651-40616
