YR22LG-PDEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

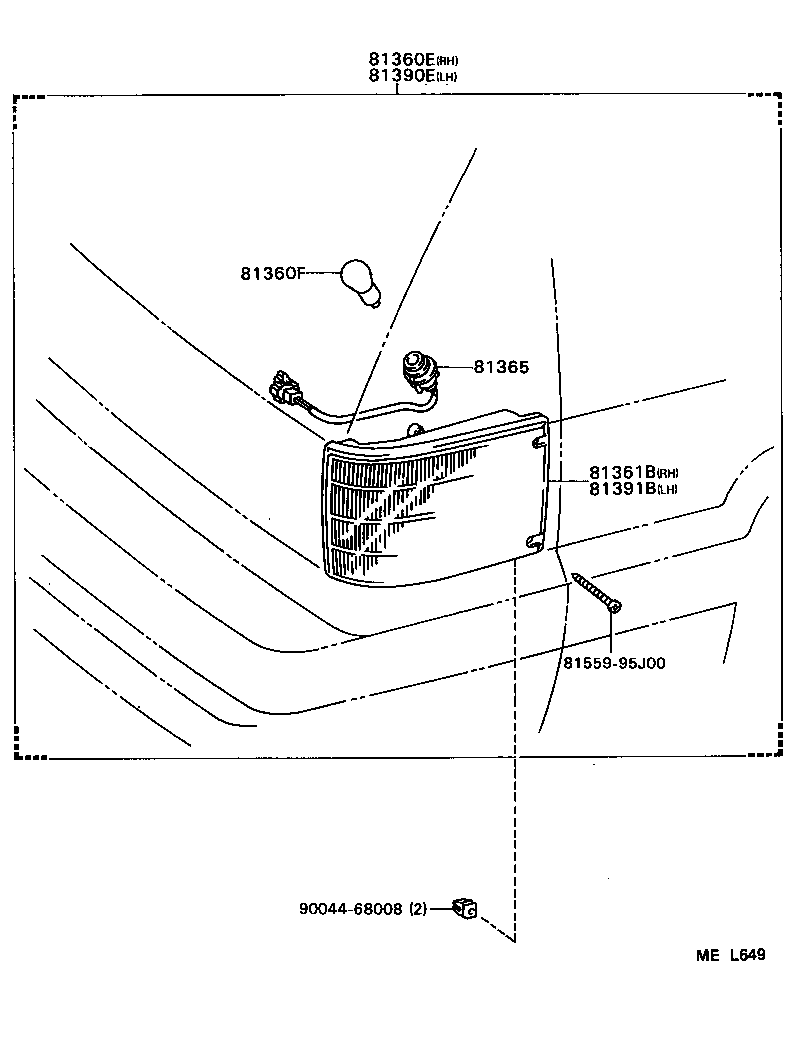

Click highlighted areas on diagram

diagram 81360E 81360F 81361B 81365 81390E 81391B 8155995J00 9004468008
Part # Description Qty Price
81360E - LAMP ASSY, CORNERING, RH
81360-28010

YR22,31

 1
81360F - BULB, CORNERING LAMP
99132-11270

YR22,31

12V 27W

 2
81361B - LENS & BODY, CORNERING LAMP, RH
81361-87004

YR22,31

 1
81365 - SOCKET & WIRE, CORNERING LAMP
81365-28010

YR22,31

 2
81390E - LAMP ASSY, CORNERING, LH
81390-28010

YR22,31

 1
81391B - LENS & BODY, CORNERING LAMP, LH
81391-87002

YR22,31

 1
Common parts
81559-95J00
90044-68008
