YR22LG-PDEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

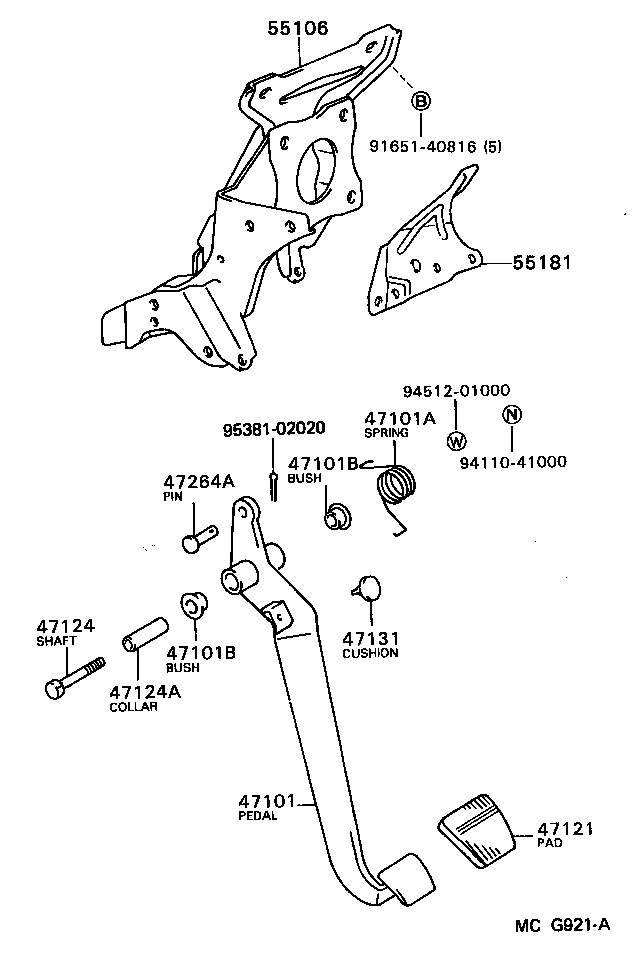

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 55181 9165140816 9411041000 9451201000 9538102020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-28080

YR2#,3#

W(CRUISE CONTROL)

 1
47101-28070

YR2#,3#

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35131

YR2#,3#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

YR2#,3#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

YR2#,3#

 2
47121 - PAD, BRAKE PEDAL
31321-14020

YR2#,3#

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

YR2#,3#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

YR2#,3#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

YR2#,3#

 1
90541-06008

YR2#,3#

W(CRUISE CONTROL)

 2
47264A - PIN(FOR PUSH ROD)
90240-08070

YR2#,3#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-28040

YR2#,3#..4FC

W(CRUISE CONTROL)

 1
55106-28020

YR2#,3#..4FC

 1
Common parts
91651-40816
94110-41000
94512-01000
95381-02020
