YR22LG-PDEA (1985)
Toyota Van
Production
Aug 1985
-
Aug 1988
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

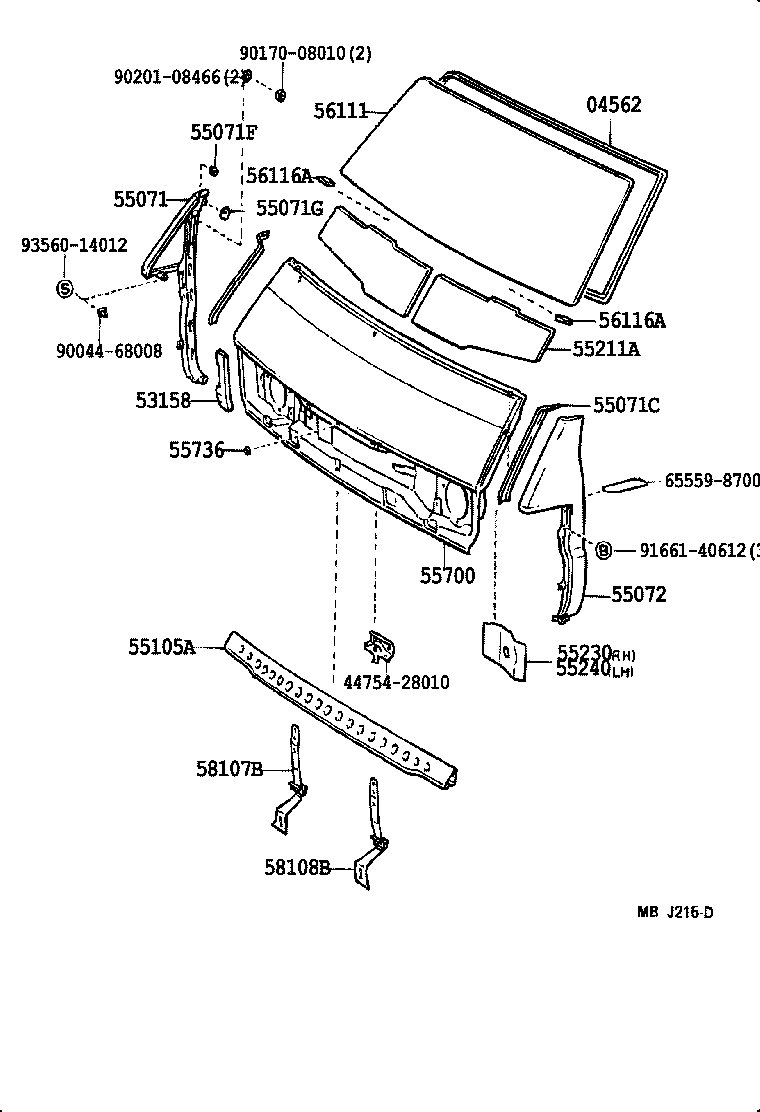

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
YR2#,3# |
1 | ||
| 53158 - PAD, HEADLAMP DOOR, RH | ||||
| 53158-28020 |
YR22,29,3# |
2 | ||
| 55071 - PANEL SUB-ASSY, FRONT SIDE, RH | ||||
| 53801-87005 |
YR2#,3# |
1 | ||
| 53801-28010 |
YR2# |
1 | ||
| 55071C - PROTECTOR, FRONT SIDE PANEL, NO.1 | ||||
| 53821-87002 |
YR2# RH |
1 | ||
| 53821-87003 |
YR2#,3# RH |
1 | ||
| 53828-87002 |
YR2# LH |
1 | ||
| 53828-87004 |
YR2#,3# LH |
1 | ||
| 55071F - PROTECTOR, FRONT SIDE PANEL, NO.4 | ||||
| 53827-87001 |
YR2#,3# |
2 | ||
| 55071G - RETAINER, FRONT SIDE PANEL SET | ||||
| 53827-95700 |
YR2#,3# |
2 | ||
| 55072 - PANEL SUB-ASSY, FRONT SIDE, LH | ||||
| 53802-87005 |
YR2#,3# |
1 | ||
| 53802-28010 |
YR2# |
1 | ||
| 55105A - MEMBER SUB-ASSY, FRONT PANEL | ||||
| 55105-28020 |
YR2#,3# |
1 | ||
| 55211A - SILENCER, FRONT PANEL, UPPER | ||||
| 55211-28010 |
YR2# LH |
1 | ||
| 55211-28010 |
YR2#,3# |
2 | ||
| 55241-28010 |
YR2# RH |
1 | ||
| 55230 - SILENCER ASSY, HEADLAMP COVER, RH | ||||
| 55230-28020 |
YR2#,3# W/RR COOLER |
1 | ||
| 55240 - SILENCER ASSY, HEADLAMP COVER, LH | ||||
| 55240-28020 |
YR2#,3# W/RR COOLER |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55701-28060 |
YR2#,32..(DLX,STD)..USA |
1 | ||
| 55701-28030 |
YR2# |
1 | ||
| 55701-28050 |
YR2#,3#..USA COLD SPEC |
1 | ||
| 55701-28050 |
YR2# |
1 | ||
| 55736 - SEAL, WATER GUARD PLATE | ||||
| 55736-87001 |
YR2# |
7 | ||
| 55736-28010 |
YR2#,3# |
4 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-28010 |
YR2#,32..DLX,STD *LAM,T=5.3,*LAM,T=5.3 |
1 | ||
| 56111-28040 |
YR21,22,29,3# *TL,T=5.3,*TL,T=5.3 |
1 | ||
| 56116A - SPACER, WINDSHIELD GLASS | ||||
| 56116-28010 |
YR2#,3# |
2 | ||
| 56116A - SPACER, WINDSHIELD GLASS | ||||
| 56116-28010 |
YR2#,3# |
2 | ||
| 58107B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-28020 |
YR2#,3# |
1 | ||
| 58108B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-28020 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 44754-28010 | ||||
| 65559-87001 | ||||
| 90044-68008 | ||||
| 90170-08010 | ||||
| 90201-08466 | ||||
| 91661-40612 | ||||
| 93560-14012 | ||||
