YR22LG-PDEA (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

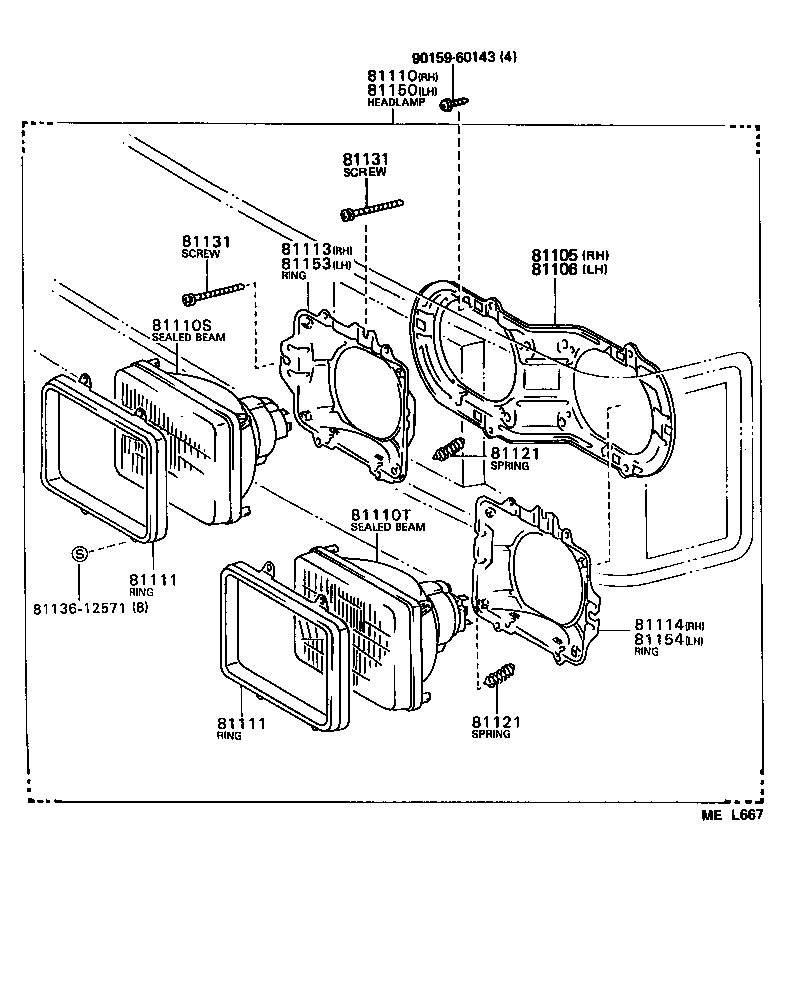

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-87015 |
YR2#,3# |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-87015 |
YR2#,3# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-28041 |
YR2#,3#..DLX,STD |
1 | ||
| 81110-28051 |
YR22,31 HALOGEN |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-05028 |
YR22,31 12V 50W,*HAL,*WB |
2 | ||
| 90981-05034 |
YR2#,3#..DLX,STD 12V 50W,*WB |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-05033 |
YR22,31 12V 40/60W,*HAL,*WB |
2 | ||
| 90981-05035 |
YR2#,3#..DLX,STD 12V 40/60W,*WB |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-22391 |
YR2#,3# |
4 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-22391 |
YR2#,3# |
4 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-87011 |
YR2#,3# |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-87011 |
YR2#,3# |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
YR2#,3# |
4 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
YR2#,3# |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-87015 |
YR2#,3# UPPER |
4 | ||
| 81132-87015 |
YR2#,3# SIDE |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-87015 |
YR2#,3# UPPER |
4 | ||
| 81132-87015 |
YR2#,3# SIDE |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-28051 |
YR22,31 HALOGEN |
1 | ||
| 81150-28041 |
YR2#,3#..DLX,STD |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-87011 |
YR2#,3# |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-87011 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90159-60143 | ||||
