YR22LG-PDEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

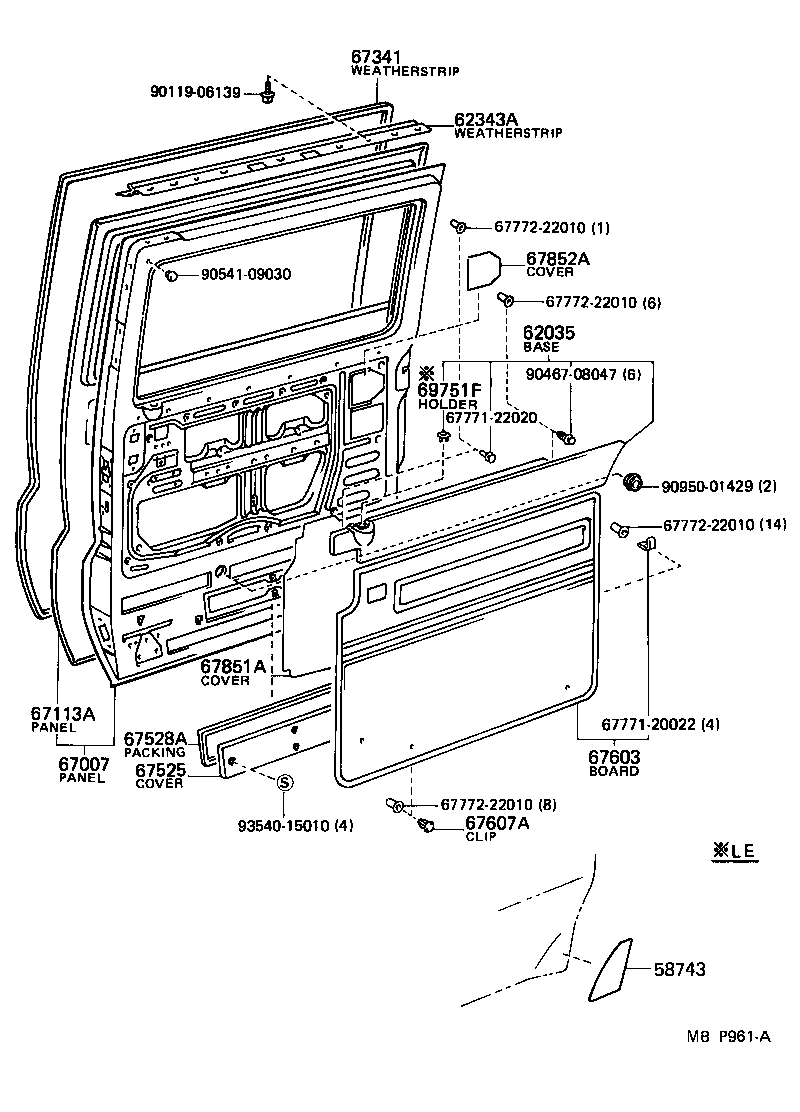

Click highlighted areas on diagram

diagram 58743 62035 62343A 67007 67113A 67341 67525 67528A 67603 67607A 6777120022 6777122020 6777222010 6777222010 6777222010 6777222010 67851A 67852A 69751F 9011906139 9046708047 9054109030 9095001429 9354015010
Part # Description Qty Price
58743 - PROTECTER, SLIDE DOOR PANEL, RH
58743-87001

YR2#,3#

 1
62035 - TRIM SUB-ASSY, REAR DOOR TRIM, UPPER RH
67617-2801004

YR22,31..DLX

LIGHT BLUE,TRIM8#

 1
67617-2801003

YR22,31..DLX

GRAY,TRIM1#

 1
67617-2801006

YR22,31..DLX

LIGHT SABLE,TRIM4#

 1
62343A - WEATHERSTRIP, SLIDE DOOR, NO.2
62343-87001

YR2#,3#

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-28070

YR22,31..DLX

W(POWER DOOR LOCK)

 1
67003-28110

YR29..VSG;YR22,31..DLX

 1
67113A - PANEL, SLIDE DOOR, OUTER RH
67113-28020

YR22,31;YR29..VSG

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
67871-87001

YR2#,3#

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-28010

YR2#,3#

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-87001

YR2#,3#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2806204

YR22,31..DLX

BLUE,TRIM8#

 1
67630-2806213

YR22,31..DLX

SHADOW GRAY,TRIM1#

 1
67630-2806206

YR22,31..DLX

SABLE,TRIM4#

 1
67607A - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-1207813

YR22,31

SHADOW GRAY,TRIM1#

 8
90467-1207834

YR22,31

BLUE,TRIM8#

 8
90467-1207856

YR22,31

BROWN,TRIM4#

 8
90467-1001624

YR22,31

BLUE,TRIM8#

 8
90467-1001623

YR22,31

SHADOW GRAY,TRIM1#

 8
90467-1001626

YR22,31

SABLE,TRIM4#

 8
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-87002

YR2#,3#

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-87001

YR2#,3#

 1
Common parts
67771-20022
67771-22020
67772-22010
90119-06139
90467-08047
90541-09030
90950-01429
93540-15010
