YR22LG-MDEK (1988)
Toyota Van

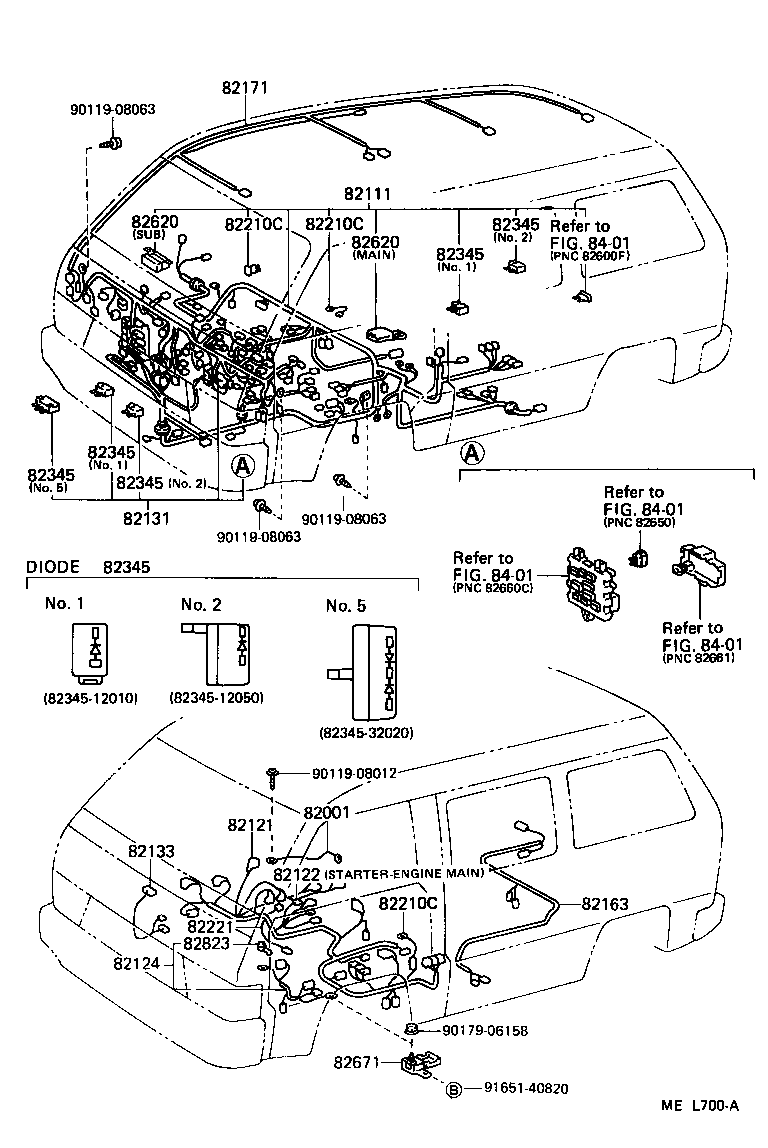

ILLUST NO. 1 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07222 |
YR2#..5F |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28400 |
YR2#..5F |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-28030 |
YR2#,3# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28040 |
YR2# BATTERY-STARTER |
1 | ||
| 82122-87007 |
YR2#,3# STARTER-ENGINE MAIN |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-28024 |
YR2# |
1 | ||
| 82124-28034 |
YR2# W(POWER STEERING) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-28420 |
YR2#..DLX,STD W(CRUISE CONTROL) |
1 | ||
| 82131-28460 |
YR22..5F..DLX W(TACHOMETER) |
1 | ||
| 82131-28410 |
YR2#..DLX,STD |
1 | ||
| 82131-28430 |
YR22..DLX W(POWER WINDOW) |
1 | ||
| 82131-28470 |
YR22..5F..DLX W(CRUISE CONTROL & TACHOMETER) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-28031 |
YR2# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28022 |
YR22,31..DLX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08204 |
YR2#,3# L=110 0.5 |
1 | ||
| 90982-08202 |
YR2# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
YR2#,3# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08242 |
YR2#,3# L=110,1.25(BLACK) |
1 | ||
| 90982-08188 |
YR2#,3# 30A,TERM.:FEMALE,PNK |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08204 |
YR2#,3# L=110 0.5 |
1 | ||
| 90982-08202 |
YR2# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
YR2#,3# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08242 |
YR2#,3# L=110,1.25(BLACK) |
1 | ||
| 90982-08188 |
YR2#,3# 30A,TERM.:FEMALE,PNK |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08204 |
YR2#,3# L=110 0.5 |
1 | ||
| 90982-08202 |
YR2# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
YR2#,3# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08242 |
YR2#,3# L=110,1.25(BLACK) |
1 | ||
| 90982-08188 |
YR2#,3# 30A,TERM.:FEMALE,PNK |
2 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-28010 |
YR2#,3#..DLX,STD |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
YR31..LE;YR2#..DLX,STD NO.5(COWL WIRE) |
1 | ||
| 82345-12050 |
YR2#,3# NO.2(E/G ROOM MAIN) |
2 | ||
| 82345-12050 |
YR2#;YR31..LE NO.2(COWL WIRE) |
1 | ||
| 82345-32020 |
YR22..DLX NO.5(COWL WIRE) |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
YR31..LE;YR2#..DLX,STD NO.5(COWL WIRE) |
1 | ||
| 82345-12050 |
YR2#,3# NO.2(E/G ROOM MAIN) |
2 | ||
| 82345-12050 |
YR2#;YR31..LE NO.2(COWL WIRE) |
1 | ||
| 82345-32020 |
YR22..DLX NO.5(COWL WIRE) |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
YR31..LE;YR2#..DLX,STD NO.5(COWL WIRE) |
1 | ||
| 82345-12050 |
YR2#,3# NO.2(E/G ROOM MAIN) |
2 | ||
| 82345-12050 |
YR2#;YR31..LE NO.2(COWL WIRE) |
1 | ||
| 82345-32020 |
YR22..DLX NO.5(COWL WIRE) |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
YR31..LE;YR2#..DLX,STD NO.5(COWL WIRE) |
1 | ||
| 82345-12050 |
YR2#,3# NO.2(E/G ROOM MAIN) |
2 | ||
| 82345-12050 |
YR2#;YR31..LE NO.2(COWL WIRE) |
1 | ||
| 82345-32020 |
YR22..DLX NO.5(COWL WIRE) |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
YR31..LE;YR2#..DLX,STD NO.5(COWL WIRE) |
1 | ||
| 82345-12050 |
YR2#,3# NO.2(E/G ROOM MAIN) |
2 | ||
| 82345-12050 |
YR2#;YR31..LE NO.2(COWL WIRE) |
1 | ||
| 82345-32020 |
YR22..DLX NO.5(COWL WIRE) |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
YR31..LE;YR2#..DLX,STD NO.5(COWL WIRE) |
1 | ||
| 82345-12050 |
YR2#,3# NO.2(E/G ROOM MAIN) |
2 | ||
| 82345-12050 |
YR2#;YR31..LE NO.2(COWL WIRE) |
1 | ||
| 82345-32020 |
YR22..DLX NO.5(COWL WIRE) |
2 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28040 |
YR2#,3# MAIN |
1 | ||
| 82620-28031 |
YR2#,3# SUB |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28040 |
YR2#,3# MAIN |
1 | ||
| 82620-28031 |
YR2#,3# SUB |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28020 |
YR2#,3# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 82345-12010 | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||
| 90119-08012 | ||||
| 90119-08063 | ||||
| 90179-06158 | ||||
| 91651-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

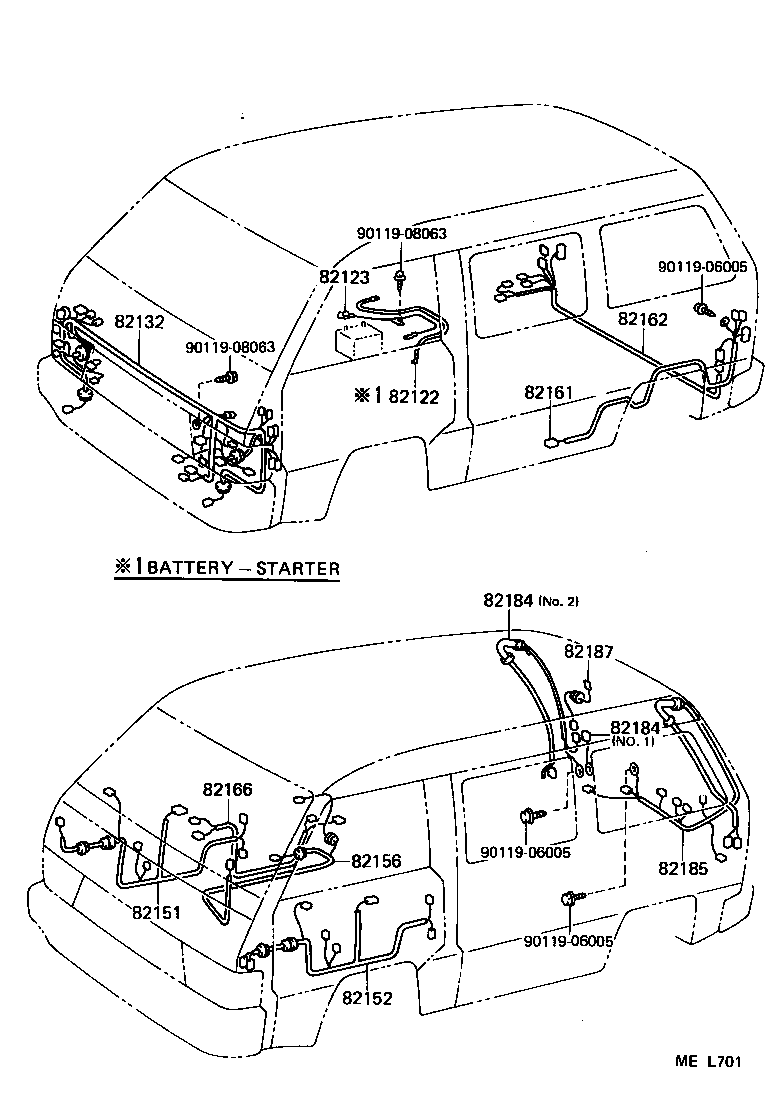

ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28040 |
YR2# BATTERY-STARTER |
1 | ||
| 82122-87007 |
YR2#,3# STARTER-ENGINE MAIN |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28010 |
YR2# BATTERY-FRAME |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-28190 |
YR2#,3#..DLX,STD |
1 | ||
| 82132-28180 |
YR2#,3#..DLX,STD |
1 | ||
| 82132-28200 |
YR22,31..DLX W(POWER DOOR LOCK) |
1 | ||
| 82132-28210 |
YR22,31..DLX W(POWER DOOR LOCK & CRUISE CONTROL) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28080 |
YR22..DLX;YR29,32..USA W(POWER DOOR LOCK) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28080 |
YR22..DLX;YR29,32..USA W(POWER DOOR LOCK) |
1 | ||
| 82156 - WIRE, SLIDE DOOR | ||||
| 82156-28090 |
YR22,31 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-28100 |
YR22,31 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-28100 |
YR22,31 W(REAR WINDOW WIPER) |
1 | ||
| 82162-28090 |
YR22,31 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-87005 |
YR2#,3#..DLX,STD W(REAR WINDOW DEFOGGER),NO.1 |
1 | ||
| 82184-87013 |
YR2#,3# W(REAR WINDOW WIPER),NO.2 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-87005 |
YR2#,3#..DLX,STD W(REAR WINDOW DEFOGGER),NO.1 |
1 | ||
| 82184-87013 |
YR2#,3# W(REAR WINDOW WIPER),NO.2 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-87015 |
YR2#,3#..DLX,STD |
1 | ||
| 82185-28010 |
YR22,31..DLX;YR29,32..USA W(POWER DOOR LOCK) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-87001 |
YR2#,3#..DLX,STD |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08063 | ||||

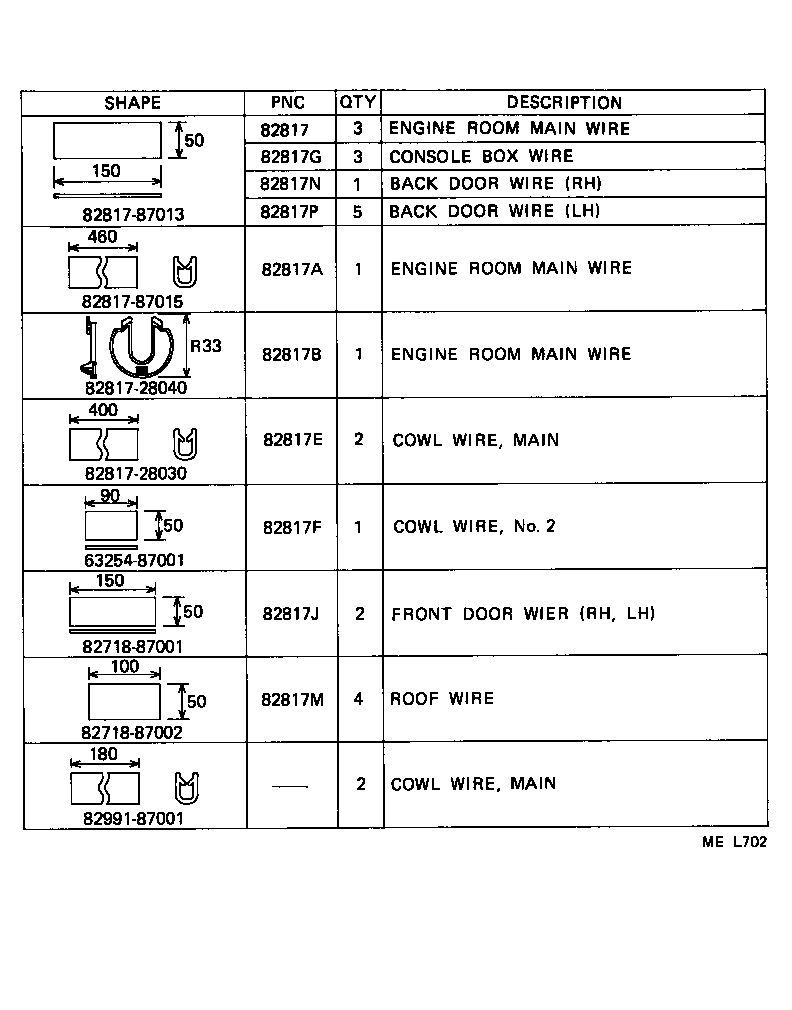

ILLUST NO. 3 OF 5(8808- )
PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-87013 |
YR2# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-87015 |
YR2#,3# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-28040 |
YR2#,3# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-28030 |
YR2# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 63254-87001 |
YR2#,3# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82718-87001 |
YR22..DLX |
2 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-87013 |
YR2#,3# |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-87013 |
YR22,31..DLX;YR29,32..USA W(POWER DOOR LOCK) |
5 | ||
| 82817-87013 |
YR2#,3#..DLX,STD |
4 | ||
| Common parts | ||||
| 63254-87001 | ||||
| 82718-87001 | ||||
| 82718-87002 | ||||
| 82817-28030 | ||||
| 82817-28040 | ||||
| 82817-87013 | ||||
| 82817-87015 | ||||
| 82991-87001 | ||||

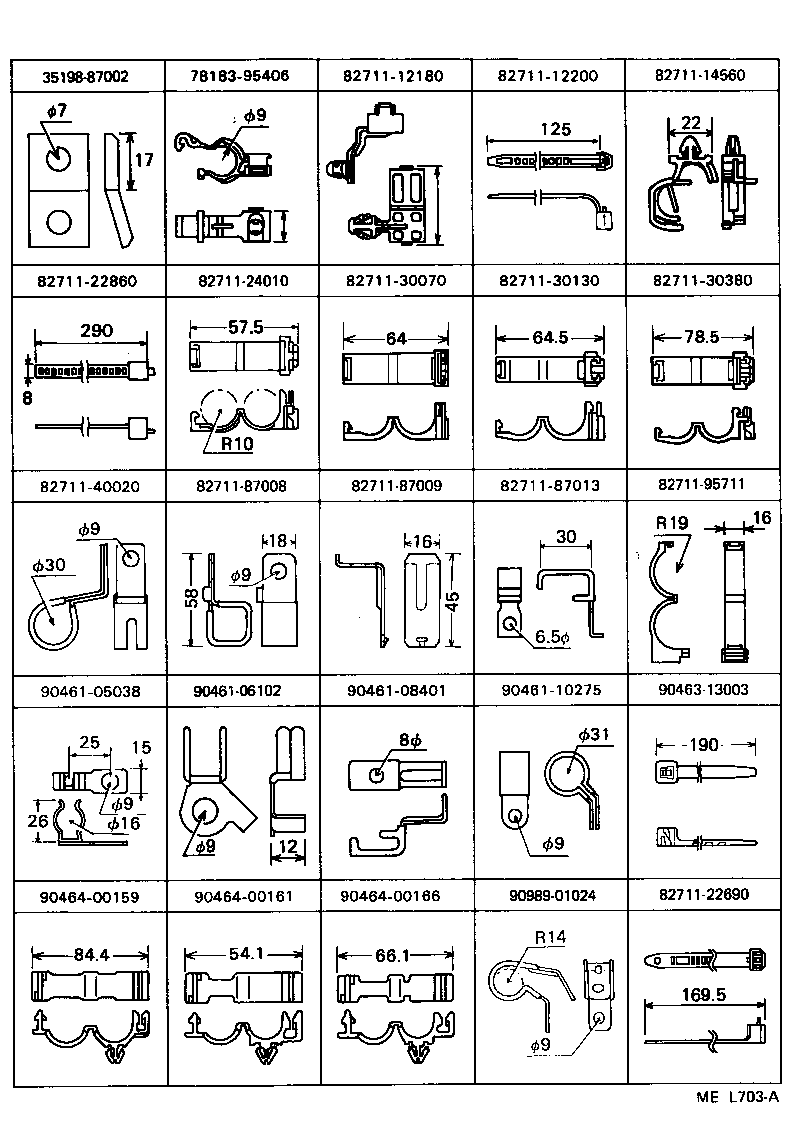

ILLUST NO. 4 OF 5(8808- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 35198-87002 | ||||
| 78183-95406 | ||||
| 82711-12180 | ||||
| 82711-12200 | ||||
| 82711-14560 | ||||
| 82711-22690 | ||||
| 82711-22860 | ||||
| 82711-24010 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30380 | ||||
| 82711-40020 | ||||
| 82711-87008 | ||||
| 82711-87009 | ||||
| 82711-87013 | ||||
| 82711-95711 | ||||
| 90461-05038 | ||||
| 90461-06102 | ||||
| 90461-08401 | ||||
| 90461-10275 | ||||
| 90463-13003 | ||||
| 90464-00159 | ||||
| 90464-00161 | ||||
| 90464-00166 | ||||
| 90989-01024 | ||||

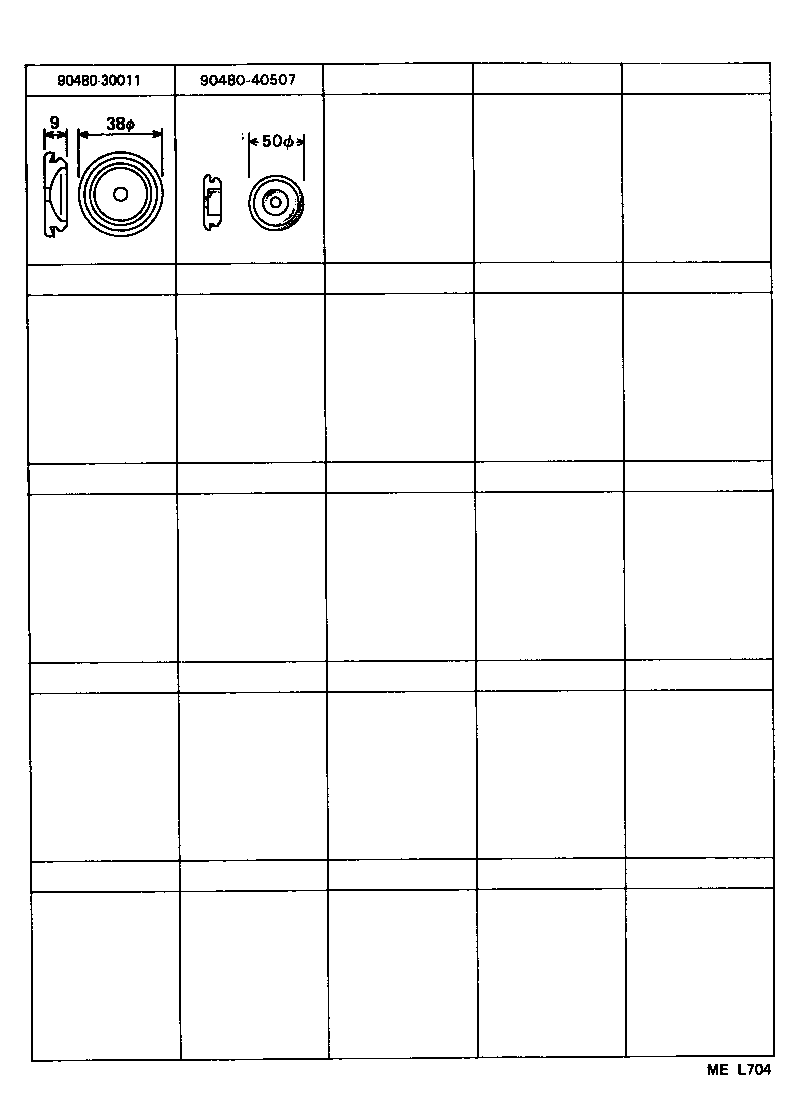

ILLUST NO. 5 OF 5(8808- )
GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-30011 | ||||
| 90480-40507 | ||||
ILLUST NO. 4 OF 5(8808- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20490 | ||||
