YR22LG-MDEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )YR22,31

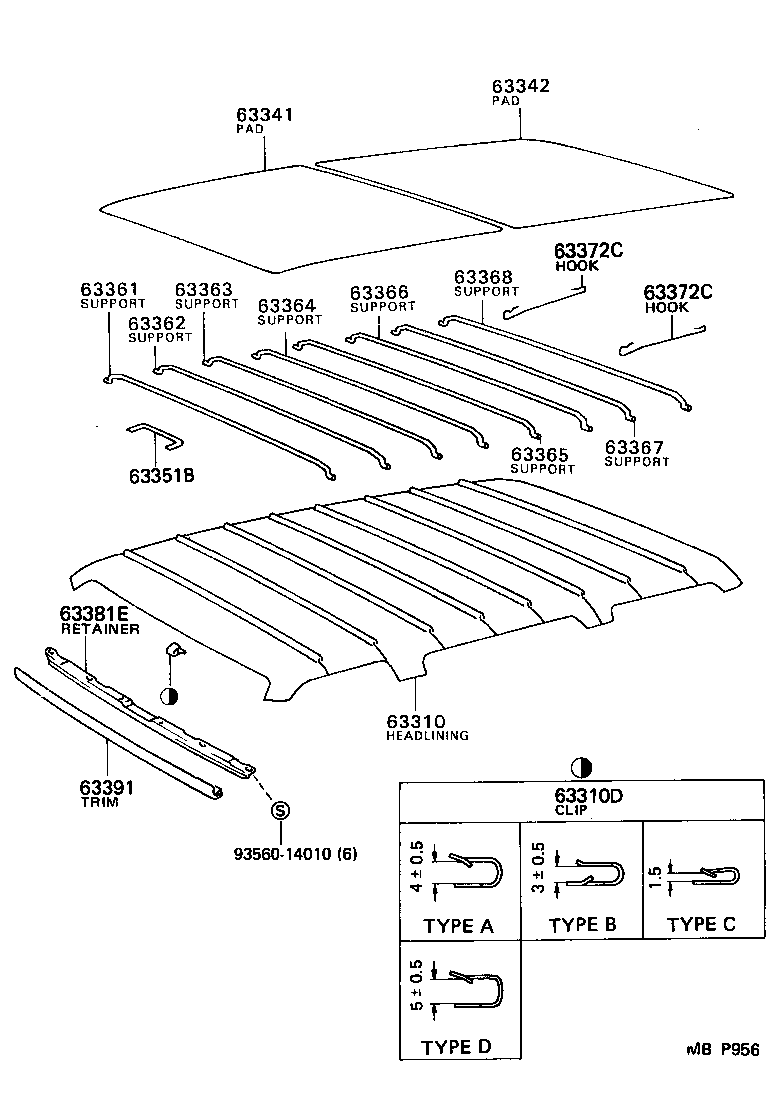

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2802006 |
YR22,31 LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2802003 |
YR22,31 GRAY,TRIM1# |
1 | ||
| 63310-2802004 |
YR22,31 LIGHT BLUE,TRIM8# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90468-04073 |
YR2#,3# TYPE C |
8 | ||
| 90468-04008 |
YR22,31 TYPE B |
1 | ||
| 90468-04017 |
YR22,31 TYPE A |
1 | ||
| 90468-04092 |
YR22,31 TYPE D |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63342-87007 |
YR22,31 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-87007 |
YR22,31 |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-87004 |
YR22,31 L=1110 |
1 | ||
| 63361-87003 |
YR22,31 L=1100 |
1 | ||
| 63361-87006 |
YR22,31 L=1105 |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63362-87004 |
YR22,31 L=1113 |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63363-87004 |
YR22,31 L=1122 |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63363-87004 |
YR22,31 L=1122 |
1 | ||
| 63365 - SUPPORT, ROOF HEADLINING, NO.5 | ||||
| 63363-87004 |
YR22,31 L=1122 |
1 | ||
| 63366 - SUPPORT, ROOF HEADLINING, NO.6 | ||||
| 63363-87004 |
YR22,31 L=1122 |
1 | ||
| 63367 - SUPPORT, ROOF HEADLINING, NO.7 | ||||
| 63363-87004 |
YR22,31 L=1122 |
1 | ||
| 63368 - SUPPORT, ROOF HEADLINING, NO.8 | ||||
| 63363-87004 |
YR22,31 L=1122 |
1 | ||
| 63372C - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63372-87002 |
YR22,31 |
2 | ||
| 63372C - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63372-87002 |
YR22,31 |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-28010 |
YR2#,3# |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-2801003 |
YR2#,3# GRAY,TRIM1# |
1 | ||
| 63391-2801004 |
YR2#,3# LIGHT BLUE,TRIM8# |
1 | ||
| 63391-2801006 |
YR2#,3# LIGHT SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
