YR22LG-MDEA (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YR22,31

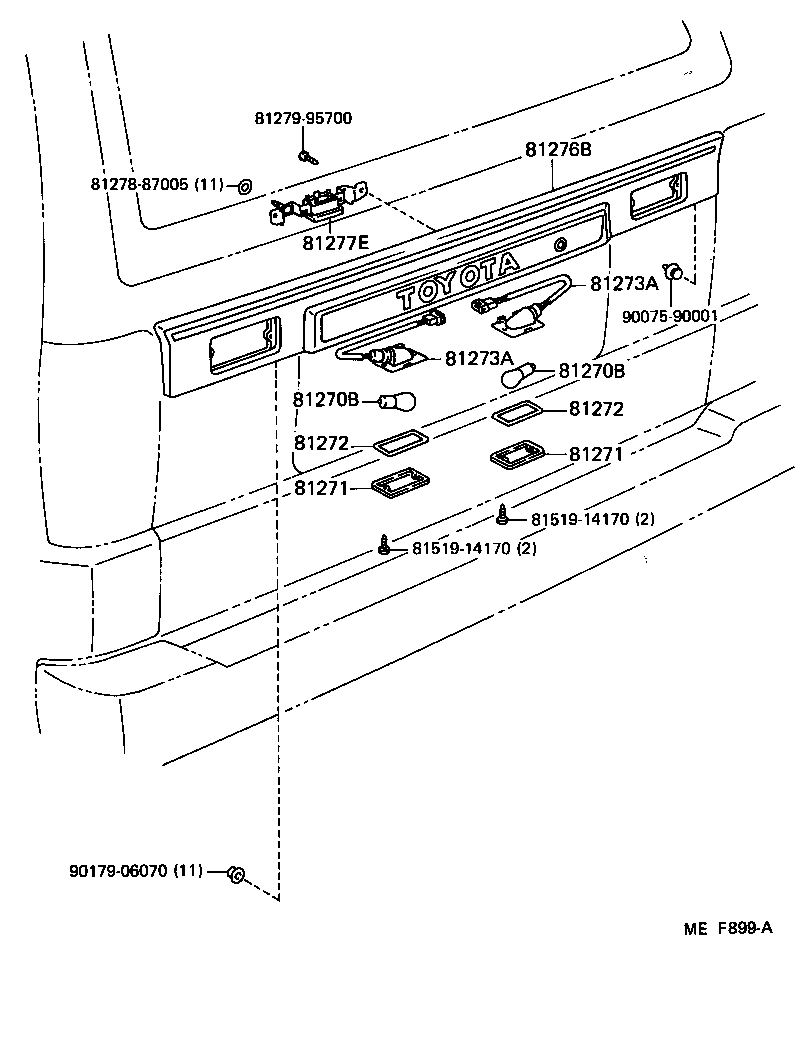

Click highlighted areas on diagram

diagram 81270B 81270B 81271 81271 81272 81272 81273A 81273A 81276B 81277E 8127887005 8127995700 8151914170 8151914170 9007590001 9017906070
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

YR2#

12V 7.5W,12V 7.5W

 2
99132-11075

YR2#,3#

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

YR2#

12V 7.5W,12V 7.5W

 2
99132-11075

YR2#,3#

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

YR2#,3#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

YR2#,3#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

YR2#,3#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

YR2#,3#

 2
81273A - BODY, LICENSE PLATE LAMP
81273-87010

YR22,31

 1
81273A - BODY, LICENSE PLATE LAMP
81273-87010

YR22,31

 1
81276B - COVER, LICENSE PLATE LAMP
81276-87011

YR22,31

 1
81277E - HANDLE, LICENSE PLATE LAMP
81277-87010

YR22,31

 1
Common parts
81278-87005
81279-95700
81519-14170
90075-90001
90179-06070
