YR22LG-MDEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

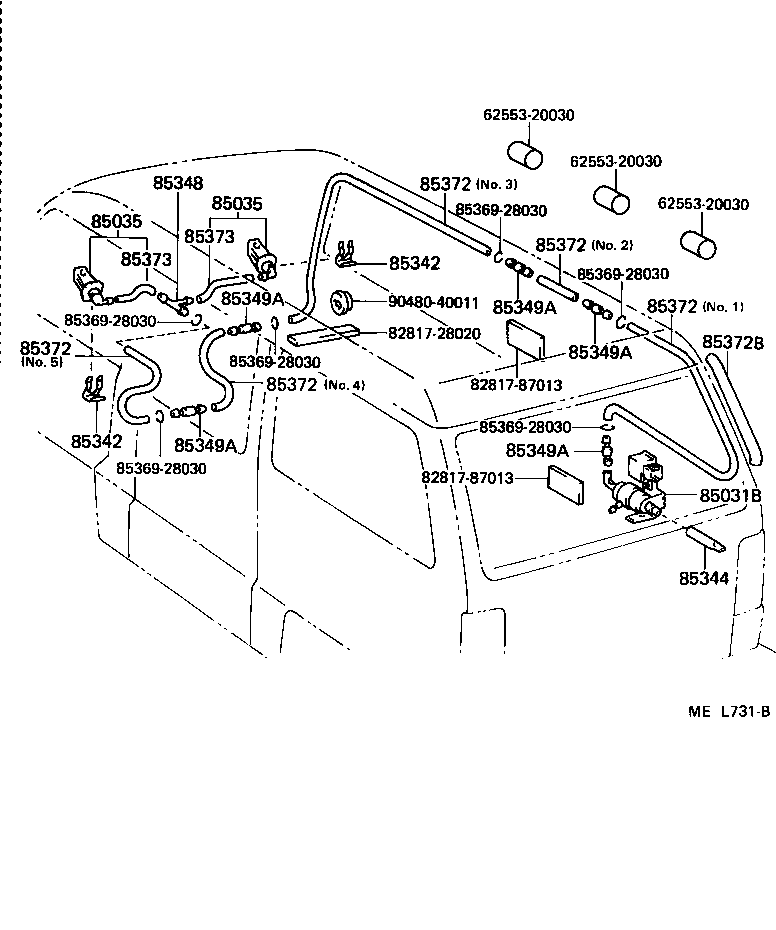

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 6255320030 6255320030 6255320030 8281728020 8281787013 8281787013 85031B 85035 85035 85342 85342 85344 85348 85349A 85349A 85349A 85349A 85349A 8536928030 8536928030 8536928030 8536928030 8536928030 8536928030 85372 85372 85372 85372 85372 85372B 85373 85373 9048040011
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85321-87001

YR2#,3#

 1
85031-87002

YR2#,3#

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-28050

YR2#,3#

LH

 1
85035-28040

YR2#,3#

RH

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-28050

YR2#,3#

LH

 1
85035-28040

YR2#,3#

RH

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J00

YR2#,3#

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J00

YR2#,3#

 2
85344 - TUBE, WINDSHIELD WASHER HOSE, STOP
85344-30010

YR2#,3#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-40010

YR2#,3#

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

YR2#,3#

 4
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

YR2#,3#

 4
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

YR2#,3#

 4
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

YR2#,3#

 4
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

YR2#,3#

 4
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-08007

YR2#,3#

*H,L=870,NO.5

 1
85354-87001

YR2#,3#

L=2250,NO.1

 1
85354-28021

YR2#,3#

L=2330,NO.3

 1
90099-33075

YR2#,3#

*H,L=40,NO.2 & NO.4

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-08007

YR2#,3#

*H,L=870,NO.5

 1
85354-87001

YR2#,3#

L=2250,NO.1

 1
85354-28021

YR2#,3#

L=2330,NO.3

 1
90099-33075

YR2#,3#

*H,L=40,NO.2 & NO.4

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-08007

YR2#,3#

*H,L=870,NO.5

 1
85354-87001

YR2#,3#

L=2250,NO.1

 1
85354-28021

YR2#,3#

L=2330,NO.3

 1
90099-33075

YR2#,3#

*H,L=40,NO.2 & NO.4

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-08007

YR2#,3#

*H,L=870,NO.5

 1
85354-87001

YR2#,3#

L=2250,NO.1

 1
85354-28021

YR2#,3#

L=2330,NO.3

 1
90099-33075

YR2#,3#

*H,L=40,NO.2 & NO.4

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-08007

YR2#,3#

*H,L=870,NO.5

 1
85354-87001

YR2#,3#

L=2250,NO.1

 1
85354-28021

YR2#,3#

L=2330,NO.3

 1
90099-33075

YR2#,3#

*H,L=40,NO.2 & NO.4

 2
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85343-87004

YR2#,3#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

YR2#,3#

*H,L=360,LH,RH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

YR2#,3#

*H,L=360,LH,RH

 1
Common parts
62553-20030
82817-28020
82817-87013
85369-28030
90480-40011

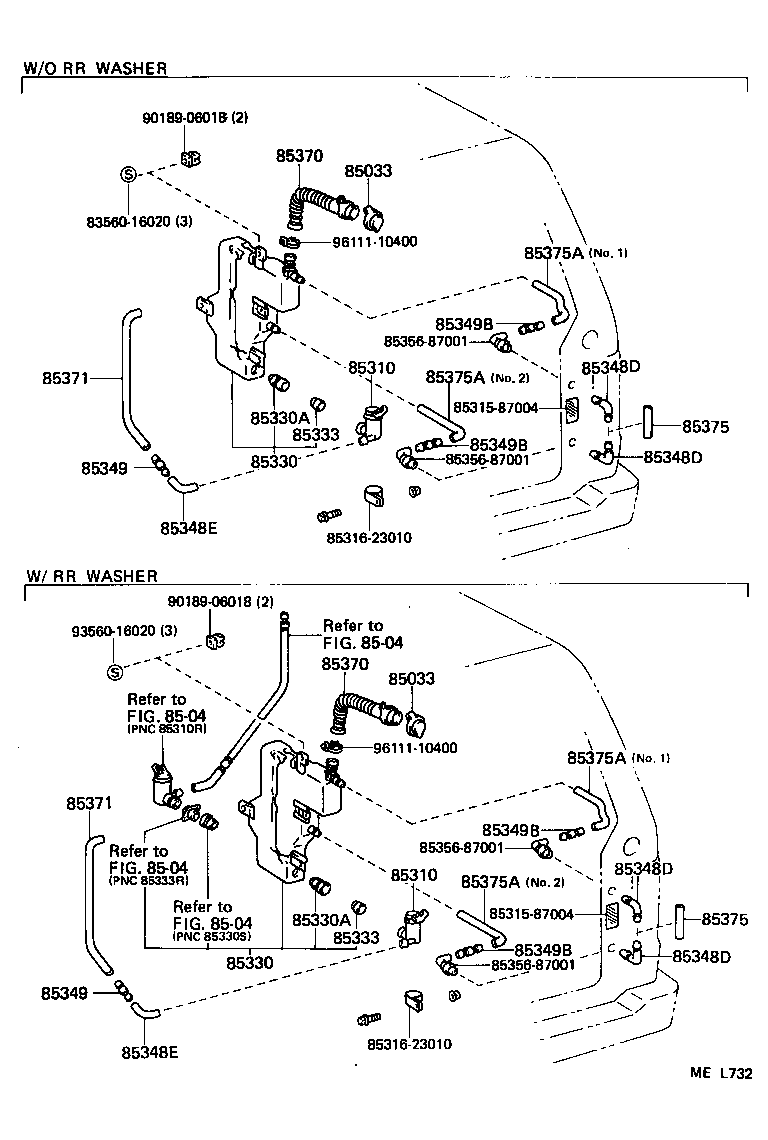

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 8356016020 85033 85033 8504 8504 8504 8504 85310 85310 8531587004 8531587004 8531623010 8531623010 85330 85330 85330A 85330A 85333 85333 85348D 85348D 85348D 85348D 85348E 85348E 85349 85349 85349B 85349B 85349B 85349B 8535687001 8535687001 8535687001 8535687001 85370 85370 85371 85371 85375 85375 85375A 85375A 85375A 85375A 9018906018 9018906018 9356016020 9611110400 9611110400
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-28021

YR2#,3#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-28021

YR2#,3#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-17030

YR2#,3#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-17030

YR2#,3#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-28051

YR2#,3#

 1
85331-28061

YR2#,3#

W(REAR WINDOW WIPER)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-28051

YR2#,3#

 1
85331-28061

YR2#,3#

W(REAR WINDOW WIPER)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

YR2#,3#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

YR2#,3#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-28020

YR2#,3#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-28020

YR2#,3#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

YR2#,3#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

YR2#,3#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

YR2#,3#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

YR2#,3#

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-16192

YR2#,3#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-16192

YR2#,3#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-14030

YR2#,3#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-14030

YR2#,3#

 1
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

YR2#,3#

 2
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

YR2#,3#

 2
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

YR2#,3#

 2
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

YR2#,3#

 2
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-87001

YR2#,3#

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-87001

YR2#,3#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

YR2#,3#

L=1000

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

YR2#,3#

L=1000

 1
85375 - HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
90446-06013

YR2#,3#

*H,L=160

 1
85375 - HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
90446-06013

YR2#,3#

*H,L=160

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90099-33299

YR2#,3#

*H,L=330,NO.1,NO.2

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90099-33299

YR2#,3#

*H,L=330,NO.1,NO.2

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90099-33299

YR2#,3#

*H,L=330,NO.1,NO.2

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90099-33299

YR2#,3#

*H,L=330,NO.1,NO.2

 1
Common parts
83560-16020
85315-87004
85316-23010
85356-87001
90189-06018
93560-16020
96111-10400
Linked diagrams
8504
