YR22LG-MDEA (1988)
Toyota Van

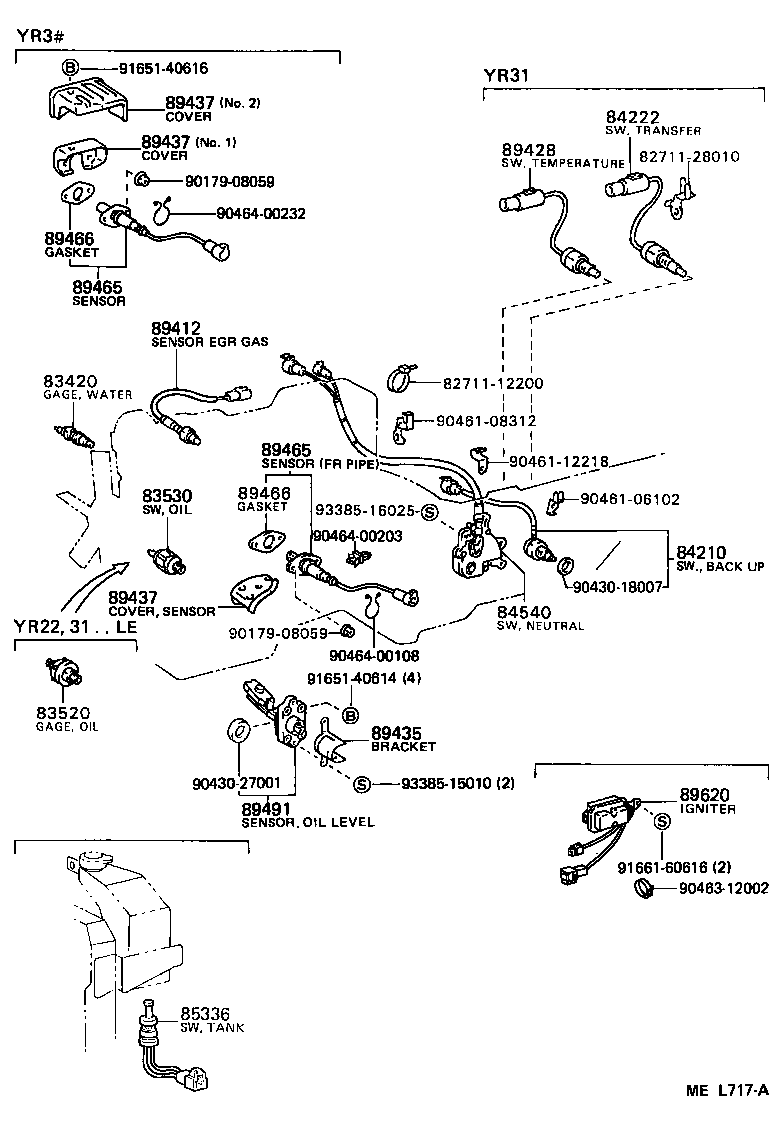

ILLUST NO. 1 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
YR2#,3# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14023 |
YR22,31..5F..DLX |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YR2#,3#..DLX,STD |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
YR2#,3#..5F |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-73010 |
YR2#,3# |
1 | ||
| 89412 - SENSOR, E.G.R GAS TEMPERATURE | ||||
| 89412-12010 |
YR22,31..USA |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-28030 |
YR2#,3# |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28030 |
YR22 FRONT & TAIL PIPE |
2 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28030 |
YR22 FRONT & TAIL PIPE |
2 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28030 |
YR22 FRONT & TAIL PIPE |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29335 |
YR2#,3# TAIL PIPE |
1 | ||
| 89465-29336 |
YR2#,3# TAIL PIPE |
1 | ||
| 89465-29326 |
YR2#,3# FRONT PIPE |
1 | ||
| 89465-29325 |
YR2#,3# FRONT PIPE |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29335 |
YR2#,3# TAIL PIPE |
1 | ||
| 89465-29336 |
YR2#,3# TAIL PIPE |
1 | ||
| 89465-29326 |
YR2#,3# FRONT PIPE |
1 | ||
| 89465-29325 |
YR2#,3# FRONT PIPE |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
YR2#,3# |
2 | ||
| 89466-20020 |
YR2#,3# |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
YR2#,3# |
2 | ||
| 89466-20020 |
YR2#,3# |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27020 |
YR2#,3# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-28040 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-28010 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90463-12002 | ||||
| 90464-00108 | ||||
| 90464-00203 | ||||
| 90464-00232 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91661-60616 | ||||
| 93385-15010 | ||||
| 93385-16025 | ||||

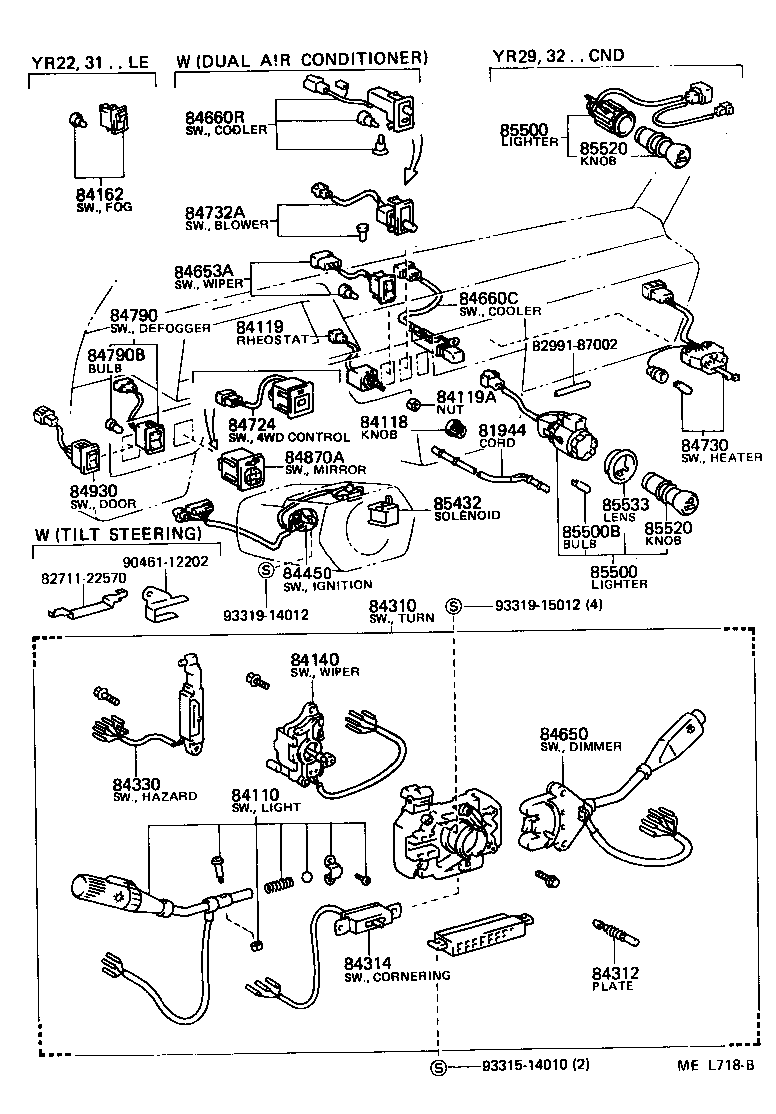

ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-30010 |
YR22,31 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39415 |
YR22,31..DLX |
1 | ||
| 84112-39425 |
YR22,31..DLX W(TILT STEERING) |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-87001 |
YR2#,3# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-28020 |
YR2#,3# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-07002 |
YR2#,3# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35070 |
YR22,31..DLX |
1 | ||
| 84140-35080 |
YR22,31..DLX W(TILT STEERING) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28310 |
YR22,31..DLX |
1 | ||
| 84310-28320 |
YR22,31..DLX W(TILT STEERING) |
1 | ||
| 84310-28340 |
YR22,31..DLX W(TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84310-28330 |
YR22,31..DLX W(CRUISE CONTROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
YR22,31 |
1 | ||
| 84314 - SWITCH, CORNERING LAMP | ||||
| 84314-28060 |
YR22,31..DLX W(TILT STEERING) |
1 | ||
| 84314-28050 |
YR22,31..DLX |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28050 |
YR2#,3#..DLX,STD |
1 | ||
| 84332-28060 |
YR22,31..DLX W(TILT STEERING) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-28030 |
YR2#,3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-28190 |
YR22,31..DLX |
1 | ||
| 84652-28210 |
YR22,31..DLX W(CRUISE CONTROL) |
1 | ||
| 84652-28200 |
YR22,31..DLX W(TILT STEERING) |
1 | ||
| 84652-28220 |
YR22,31..DLX W(TILT STEERING & CRUISE CONTROL) |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-28010 |
YR2#,3# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 88610-28010 |
YR22..USA |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 88610-28032 |
YR22..USA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-28010 |
YR2#,3# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-28020 |
YR2#,3#..USA |
1 | ||
| 88610-28051 |
YR22..USA W(DUAL AIR CONDITIONER) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20130 |
YR2#,3#..DLX,STD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10130 |
YR2#,3#..DLX,STD 12V 0.56W |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95701 |
YR22,31..DLX;YR29,32..USA |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28010 |
YR22,31 FRONT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28010 |
YR22,31 FRONT |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
YR22,31 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
YR22,31 FRONT |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
YR22,31 FRONT |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
YR22,31 |
1 | ||
| Common parts | ||||
| 82711-22570 | ||||
| 82991-87002 | ||||
| 90461-12202 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-73010 |
4YEC..YR2#,3#..5F |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02004 |
4YEC..YR2#,3# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
YR2#,3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
YR2#,3# 10A |
2 | ||
| 90982-09005 |
YR2#,3# 7.5A |
6 | ||
| 90982-09003 |
YR2#,3# 15A |
9 | ||
| 90982-09004 |
YR2#,3# 20A,YELLOW |
1 | ||
| 90982-09005 |
YR2# 7.5A |
1 | ||
| 90982-09003 |
YR2# 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
YR2#,3# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
YR22..DLX 20A |
1 | ||
| 82650-20011 |
YR2# 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
YR22..DLX 20A |
1 | ||
| 82650-20011 |
YR2# 30A |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-28022 |
YR2#,3# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-28012 |
YR2#,3# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
YR2#,3# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
YR2#,3# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
YR2#,3# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
YR2#,3# |
2 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02004 |
YR22,31 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-87003 |
YR2#,3# W(CRUISE CONTROL) |
1 | ||
| 85940-28010 |
YR2#,3# |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-12050 |
YR2#,3# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-28010 |
YR2#,3# UPPER |
1 | ||
| 85999-28021 |
YR2#,3# LOWER |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-28010 |
YR2#,3# UPPER |
1 | ||
| 85999-28021 |
YR2#,3# LOWER |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-28030 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90159-60076 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93510-15014 | ||||

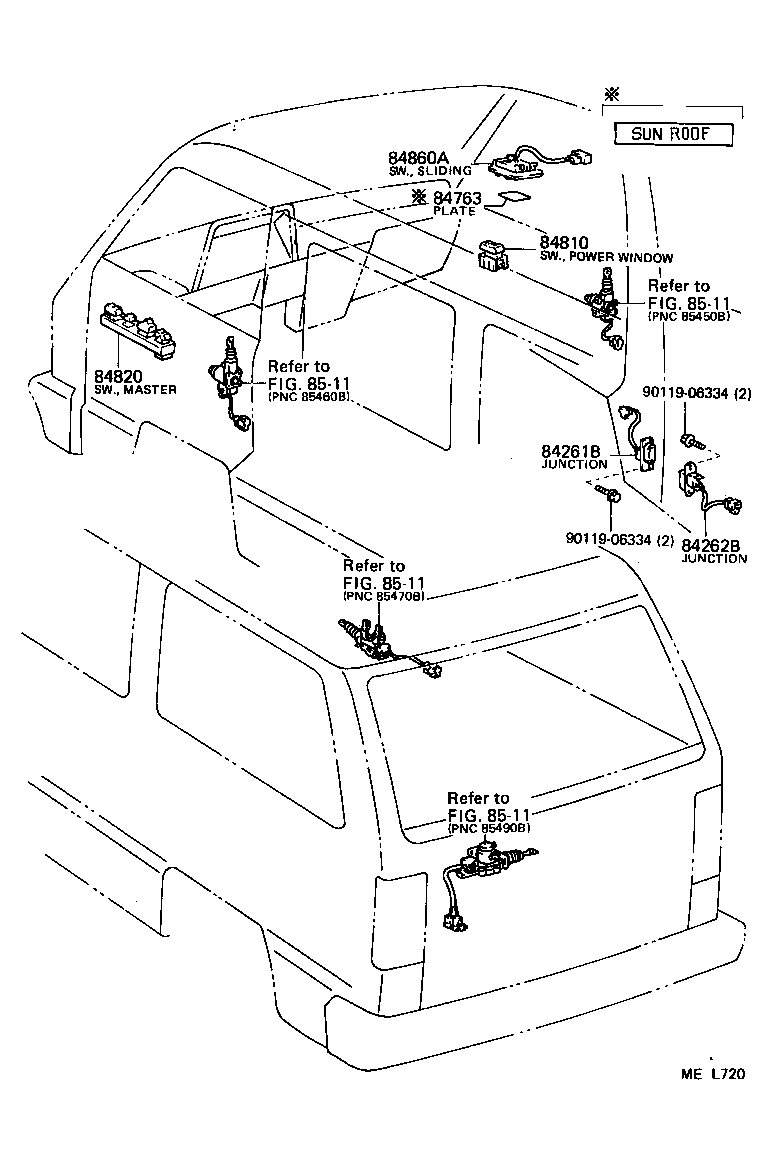

ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-87002 |
YR22..DLX;YR29,32..USA |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-87002 |
YR22..DLX;YR29,32..USA |
1 | ||
| Common parts | ||||
| 90119-06334 | ||||
| Linked diagrams | ||||
| 8511 | ||||

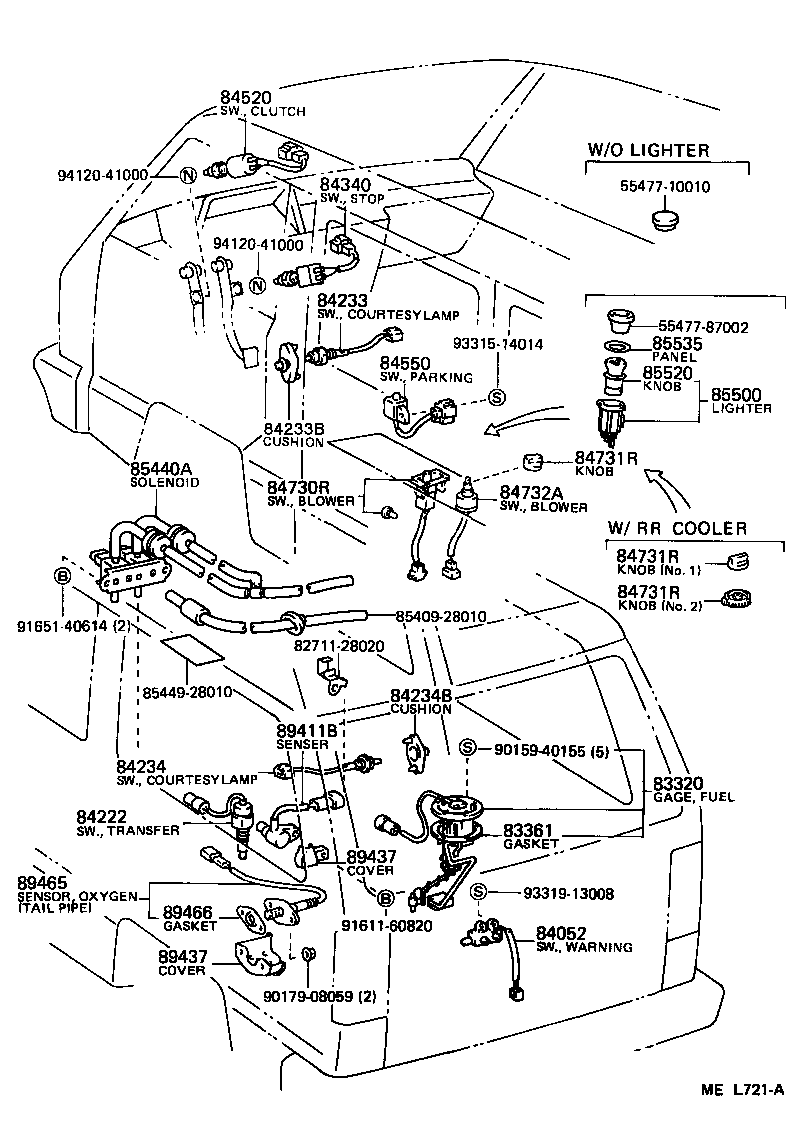

ILLUST NO. 5 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29857 |
YR22;YR29..USA |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
YR2#,3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28020 |
YR2#,3# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
YR2#,3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-28010 |
YR2#,3# |
1 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
YR2#,3# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
YR2#,3# |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-28010 |
YR2#,3#..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
YR2#,3# |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-28020 |
YR2#,3#..USA |
2 | ||
| 84730-28020 |
YR22,31..USA |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
YR2#,3#..USA |
1 | ||
| 84731-12032 |
YR22..USA NO.2 |
1 | ||
| 84731-20030 |
YR22..USA NO.1 |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
YR2#,3#..USA |
1 | ||
| 84731-12032 |
YR22..USA NO.2 |
1 | ||
| 84731-20030 |
YR22..USA NO.1 |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
YR2#,3#..USA |
1 | ||
| 84731-12032 |
YR22..USA NO.2 |
1 | ||
| 84731-20030 |
YR22..USA NO.1 |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-28020 |
YR2#,3#..USA |
1 | ||
| 88610-28051 |
YR22..USA W(DUAL AIR CONDITIONER) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28010 |
YR22,31 FRONT |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
YR22,31 FRONT |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28030 |
YR22 FRONT & TAIL PIPE |
2 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-28030 |
YR22 FRONT & TAIL PIPE |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29335 |
YR2#,3# TAIL PIPE |
1 | ||
| 89465-29336 |
YR2#,3# TAIL PIPE |
1 | ||
| 89465-29326 |
YR2#,3# FRONT PIPE |
1 | ||
| 89465-29325 |
YR2#,3# FRONT PIPE |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
YR2#,3# |
2 | ||
| 89466-20020 |
YR2#,3# |
2 | ||
| Common parts | ||||
| 55477-10010 | ||||
| 55477-87002 | ||||
| 82711-28020 | ||||
| 85409-28010 | ||||
| 85449-28010 | ||||
| 90159-40155 | ||||
| 90179-08059 | ||||
| 91611-60820 | ||||
| 91651-40614 | ||||
| 93315-14014 | ||||
| 93319-13008 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
