YR22LG-MDEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

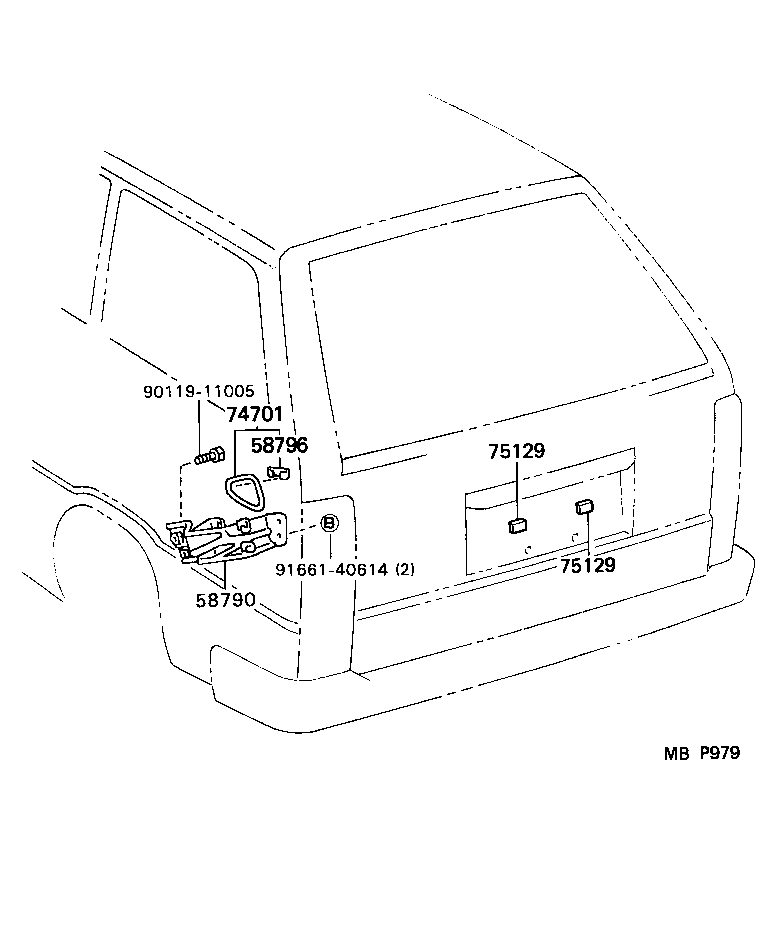

Click highlighted areas on diagram

diagram 58790 58796 74701 75129 75129 9011911005 9166140614
Part # Description Qty Price
58790 - CARRIER ASSY, JACK
58790-28010

YR2#,3#

 1
58796 - HOOK, JACK CLAMP
58796-20012

YR2#,3#

 1
74701 - CLAMP SUB-ASSY, TOOL BAG
58705-87001

YR2#,3#

 1
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

YR2#,3#

 2
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

YR2#,3#

 2
Common parts
90119-11005
91661-40614
