YR21LG-PQEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

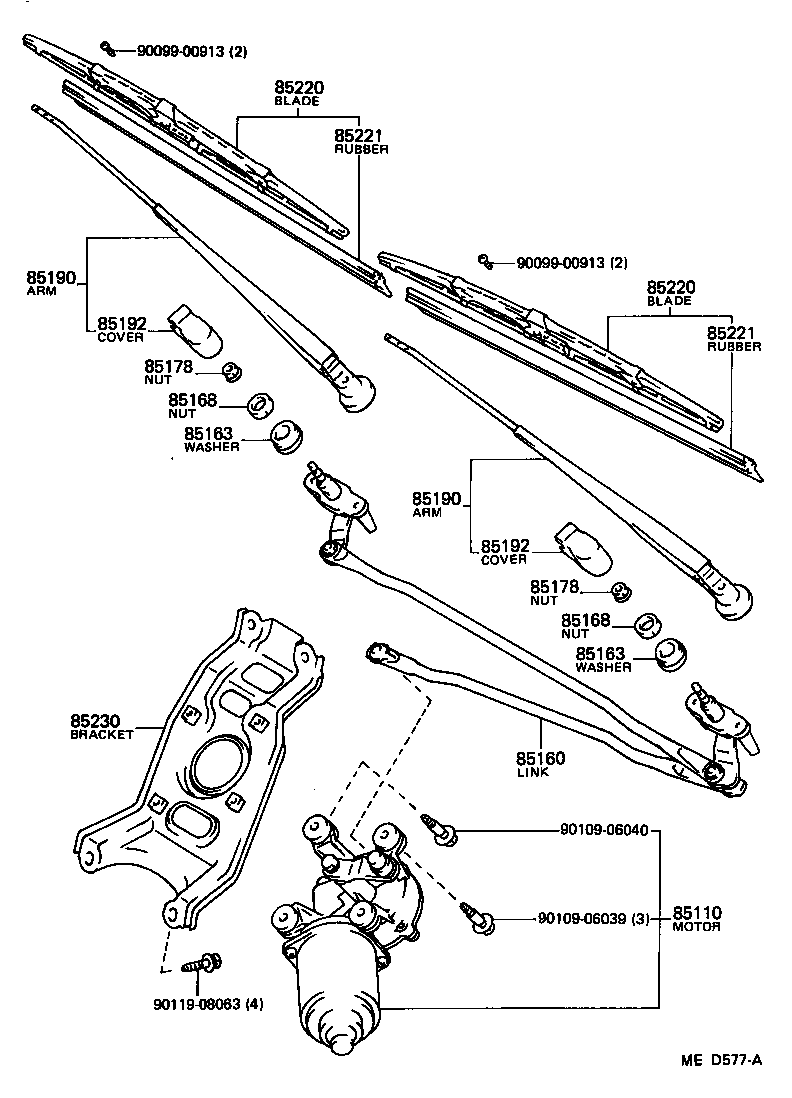

Click highlighted areas on diagram

diagram 85110 85160 85163 85163 85168 85168 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 85230 9009900913 9009900913 9010906039 9010906040 9011908063
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-28020

YR2#,3#

COLD SPEC

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-28010

YR2#,3#

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85179-87002

YR2#,3#

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85179-87002

YR2#,3#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90099-05141

YR2#,3#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90099-05141

YR2#,3#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

YR2#,3#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

YR2#,3#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-28030

YR2#,3#

RH

 1
85210-28020

YR2#,3#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-28030

YR2#,3#

RH

 1
85210-28020

YR2#,3#

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-28020

YR2#,3#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-28020

YR2#,3#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16290

YR2#,3#

RH

 1
85220-16270

YR2#,3#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16290

YR2#,3#

RH

 1
85220-16270

YR2#,3#

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

YR2#,3#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

YR2#,3#

 2
85230 - BRACKET ASSY, WINDSHIELD WIPER
85231-28010

YR2#,3#

 1
Common parts
90099-00913
90109-06039
90109-06040
90119-08063
