YR21LG-PQEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

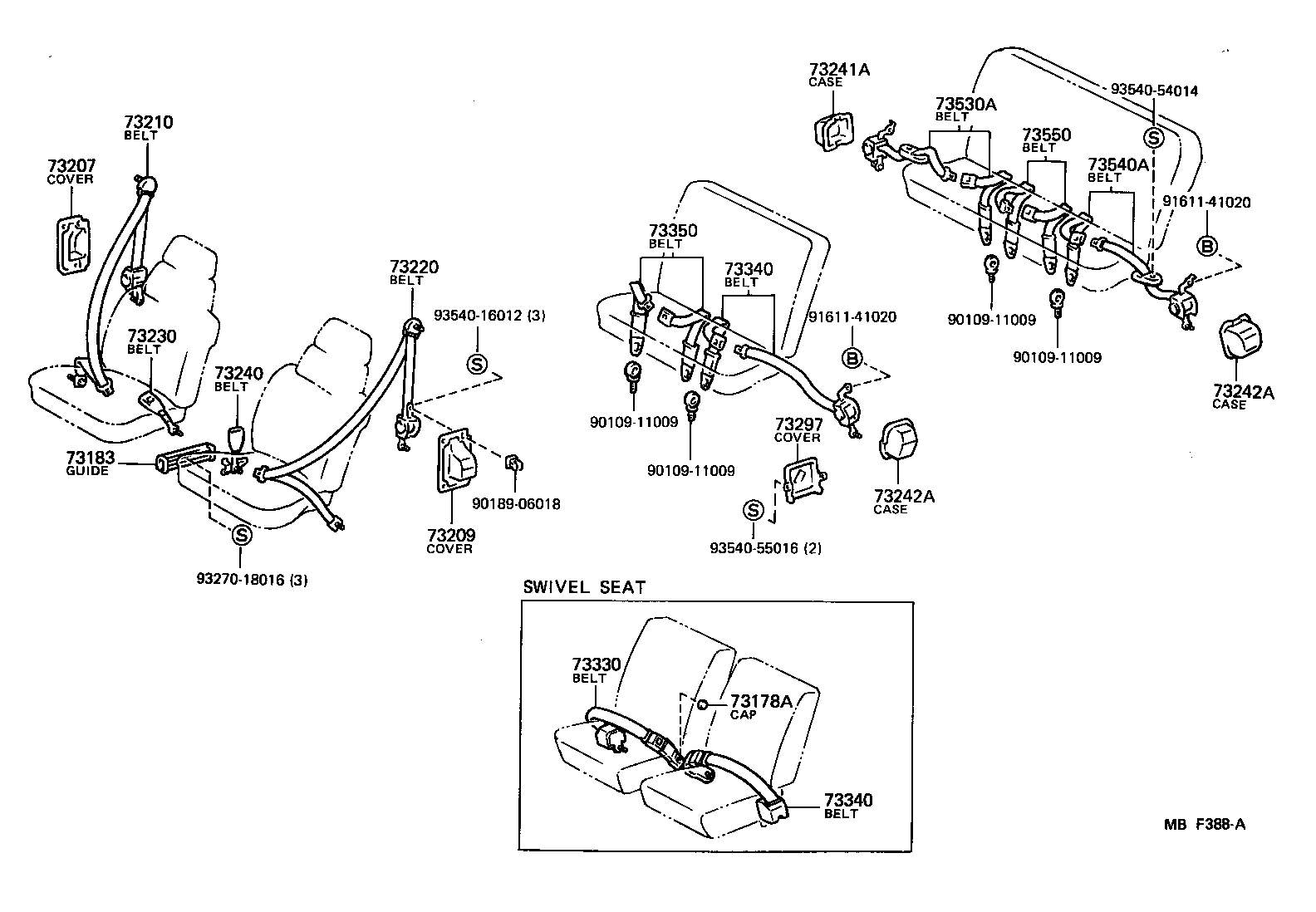

Click highlighted areas on diagram

diagram 73178A 73183 73207 73209 73210 73220 73230 73240 73241A 73242A 73242A 73297 73330 73340 73340 73350 73530A 73540A 73550 9010911009 9010911009 9010911009 9010911009 9018906018 9161141020 9161141020 9327018016 9354016012 9354054014 9354055016
Part # Description Qty Price
73183 - GUIDE, FRONT SEAT LAP BELT, INNER
73183-28010

YR2#,3#

 1
73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
73207-87003

YR2#,3#

 1
73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73209-28010

YR2#,3#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2803004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73210-2803002

YR21

WINE,RED/MAROON,TRIM4#

 1
73210-2803102

YR21

WINE,WINE,TRIM4#

 1
73210-2803104

YR21..LE

BLUE,BLUE,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2803002

YR21

WINE,RED/MAROON,TRIM4#

 1
73220-2803104

YR21..LE

BLUE,BLUE,TRIM1#

 1
73220-2803102

YR21

WINE,WINE,TRIM4#

 1
73220-2803004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2802002

YR2#

WINE,RED/MAROON,TRIM4#

 1
73230-2802004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-2802004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73240-2802002

YR2#

WINE,RED/MAROON,TRIM4#

 1
73241A - CASE, SEAT BELT RETRACTOR, RH
73241-28030

YR21,22,31

RR NO.2 SEAT

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73242-28010

YR21,22,31

RR NO.1 SEAT

 1
73242-28030

YR21,22,31

RR NO.2 SEAT

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73242-28010

YR21,22,31

RR NO.1 SEAT

 1
73242-28030

YR21,22,31

RR NO.2 SEAT

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73298-2802003

YR21..LE

GRAY,GRAY,TRIM1#

 1
73298-2802005

YR21

BEIGE,BEIGE,TRIM4#

 1
73298-2802004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73298-2802002

YR21

WINE,WINE,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73340-2802002

YR21

WINE,RED/MAROON,TRIM4#

 1
73340-2802004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73340-2802002

YR21

WINE,RED/MAROON,TRIM4#

 1
73340-2802004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-2804002

YR21

WINE,RED/MAROON,TRIM4#

 1
73350-2804004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH
73530-2801002

YR21

WINE,RED/MAROON,TRIM4#

 1
73530-2801004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH
73540-2801004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73540-2801002

YR21

WINE,RED/MAROON,TRIM4#

 1
73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73550-2803004

YR21..LE

BLUE,BLUE,TRIM1#

 1
73550-2803002

YR21

WINE,RED/MAROON,TRIM4#

 1
Common parts
90109-11009
90189-06018
91611-41020
93270-18016
93540-16012
93540-54014
93540-55016
