YR21LG-PDEK (1983)
Toyota Van
Production
Aug 1983
-
Aug 1985
Engine
3YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

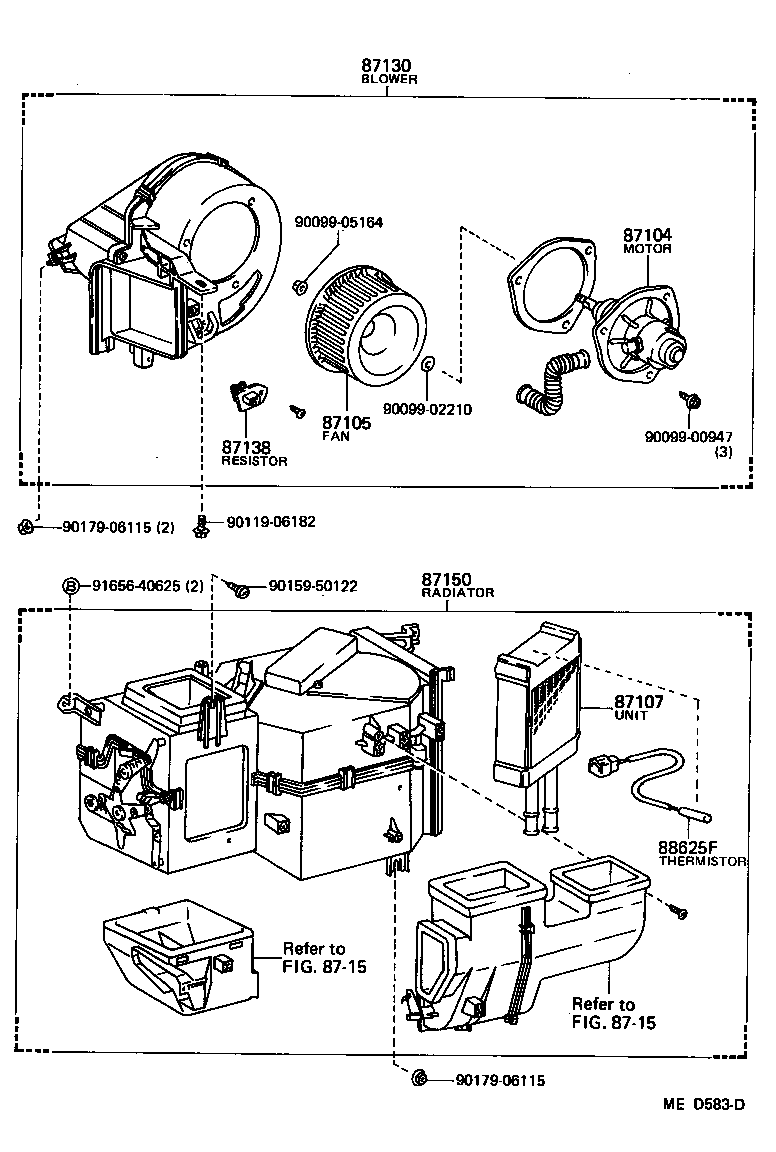

ILLUST NO. 1 OF 3(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-28010 |
YR2#,3# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12060 |
YR2#,3# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28010 |
YR2# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28010 |
YR2# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87009 |
YR2#,3# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28040 |
YR2# COLD SPEC |
1 | ||
| 87150-28010 |
YR2# |
1 | ||
| Common parts | ||||
| 90099-00947 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90119-06182 | ||||
| 90159-50122 | ||||
| 90179-06115 | ||||
| 91656-40625 | ||||
| Linked diagrams | ||||
| 8715 | ||||

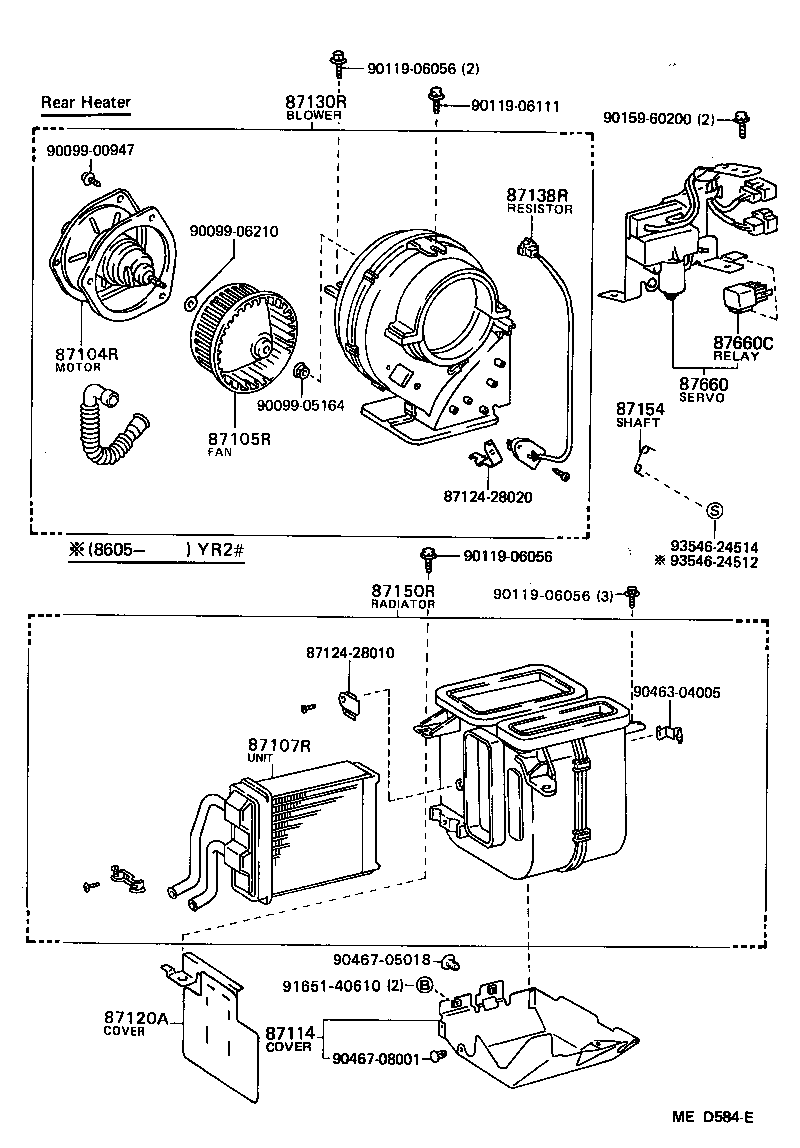

ILLUST NO. 2 OF 3(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87007 |
YR21;YR27..USA |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-14020 |
YR21;YR27..USA |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-87010 |
YR2# |
1 | ||
| 87107-87010 |
YR21;YR27..USA |
1 | ||
| 87114 - COVER, HEATER | ||||
| 55074-87001 |
YR21;YR27..USA |
1 | ||
| 87120A - COVER, REAR HEATER | ||||
| 55077-87001 |
YR21;YR27..USA |
1 | ||
| 87130R - BLOWER ASSY, REAR HEATER | ||||
| 87130-28021 |
YR21;YR27..USA W/RR HEATER |
1 | ||
| 87130-28021 |
YR2# W/RR HEATER |
1 | ||
| 87130-28031 |
YR21 W/RR HEATER & RR COOLER |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-87008 |
YR21;YR27..USA |
1 | ||
| 87150R - RADIATOR ASSY, REAR HEATER | ||||
| 87150-28031 |
YR21;YR27..USA |
1 | ||
| 87150-28050 |
YR21 COLD SPEC |
1 | ||
| Common parts | ||||
| 87124-28010 | ||||
| 87124-28020 | ||||
| 90099-00947 | ||||
| 90099-05164 | ||||
| 90099-06210 | ||||
| 90119-06056 | ||||
| 90119-06111 | ||||
| 90159-60200 | ||||
| 90463-04005 | ||||
| 90467-05018 | ||||
| 90467-08001 | ||||
| 91651-40610 | ||||
| 93546-24512 | ||||
| 93546-24514 | ||||

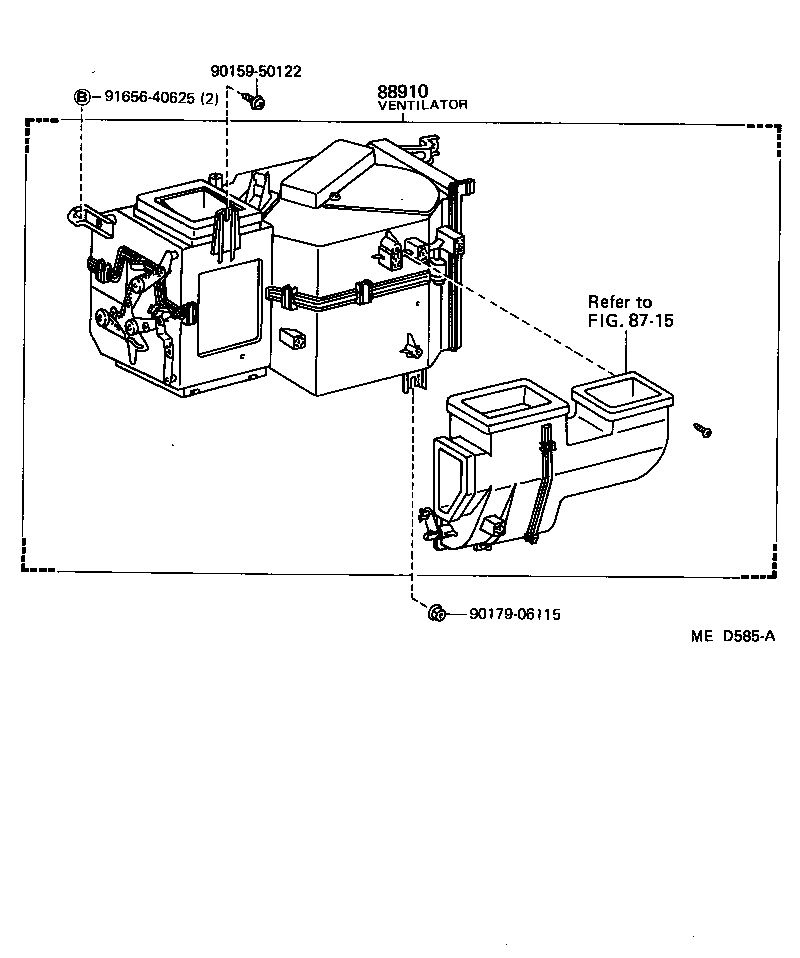

ILLUST NO. 3 OF 3(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50122 | ||||
| 90179-06115 | ||||
| 91656-40625 | ||||
| Linked diagrams | ||||
| 8715 | ||||
