YR21LG-PDEK (1983)
Toyota Van
Production
Aug 1983
-
Aug 1985
Engine
3YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

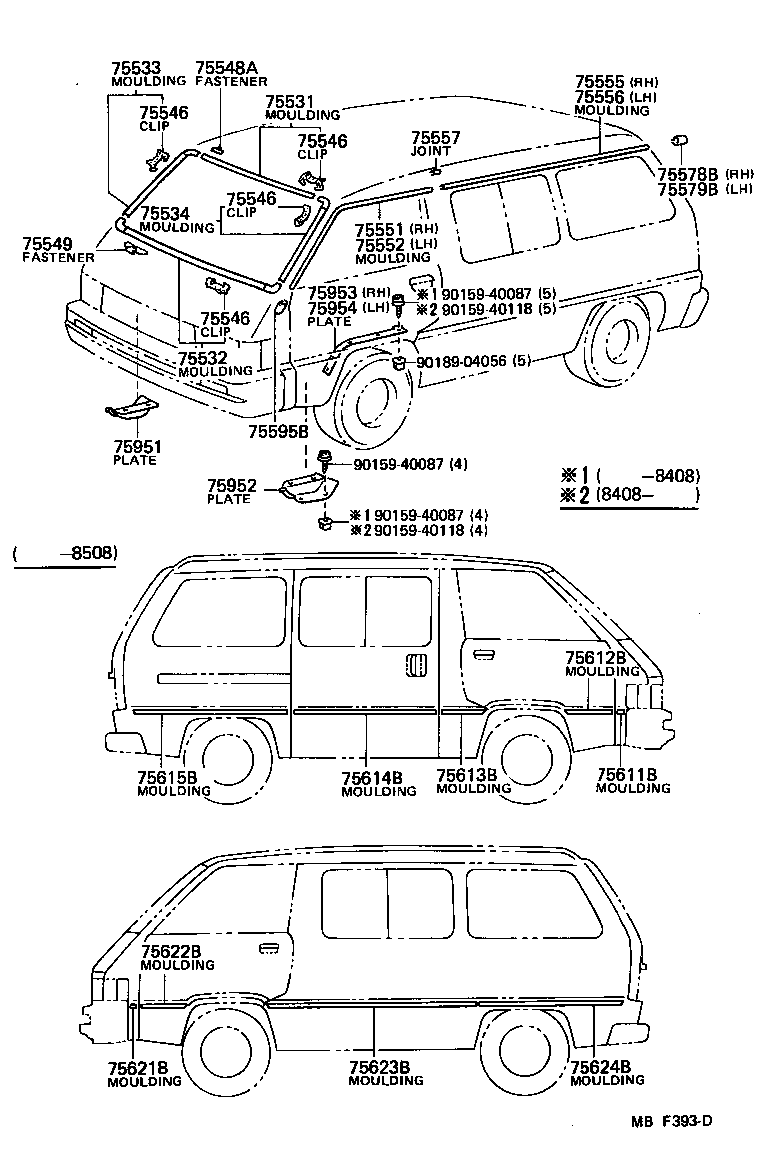

ILLUST NO. 1 OF 2(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-28010 |
YR2#,3# |
1 | ||
| 75532 - MOULDING, WINDSHIELD, LOWER | ||||
| 75504-28010 |
YR2#,3# |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 76503-28010 |
YR2#,3# |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 76504-28010 |
YR2#,3# |
1 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-28010 |
YR2#,3# UPR & SIDE |
11 | ||
| 75546-28010 |
YR2#,3# LWR |
7 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-28010 |
YR2#,3# UPR & SIDE |
11 | ||
| 75546-28010 |
YR2#,3# LWR |
7 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-28010 |
YR2#,3# UPR & SIDE |
11 | ||
| 75546-28010 |
YR2#,3# LWR |
7 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-28010 |
YR2#,3# UPR & SIDE |
11 | ||
| 75546-28010 |
YR2#,3# LWR |
7 | ||
| 75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75548-28010 |
YR2#,3# |
14 | ||
| 75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2 | ||||
| 75549-28010 |
YR2#,3# |
6 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87005 |
YR21,22,31 |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87005 |
YR21,22,31 |
1 | ||
| 75555 - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-87005 |
YR21,22,31 |
1 | ||
| 75556 - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-87005 |
YR21,22,31 |
1 | ||
| 75557 - JOINT, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75563-87001 |
YR21,22,31..DLX LH,W/O ANTENNA |
1 | ||
| 75563-87002 |
YR21,22,31 LH,W/ANTENNA |
1 | ||
| 75563-87001 |
YR21,22,31 RH |
1 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75611-28020 |
YR21 |
1 | ||
| 75612B - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 75731-28020 |
YR21 |
1 | ||
| 75613B - MOULDING, SIDE PANEL, NO.3 RH | ||||
| 75651-28020 |
YR21 |
1 | ||
| 75614B - MOULDING, SIDE PANEL, NO.4 RH | ||||
| 75741-28020 |
YR21 |
1 | ||
| 75615B - MOULDING, SIDE PANEL, NO.5 RH | ||||
| 75653-28020 |
YR21 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75612-28020 |
YR21 |
1 | ||
| 75622B - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 75732-28020 |
YR21 |
1 | ||
| 75623B - MOULDING, SIDE PANEL, NO.3 LH | ||||
| 75652-28020 |
YR21 |
1 | ||
| 75624B - MOULDING, SIDE PANEL, NO.4 LH | ||||
| 75654-28020 |
YR21 |
1 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-8700402 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| 67913-8700405 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67914-8700105 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 67914-8700102 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| 75953 - PLATE, FRONT DOOR SCUFF, INSIDE RH | ||||
| 67933-8700205 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 67933-8700202 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| 75954 - PLATE, FRONT DOOR SCUFF, INSIDE LH | ||||
| 67934-8700202 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| 67934-8700205 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40087 | ||||
| 90159-40118 | ||||
| 90189-04056 | ||||
