YR21LG-PDEK (1983)
Toyota Van
Production
Aug 1983
-
Aug 1985
Engine
3YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8508)

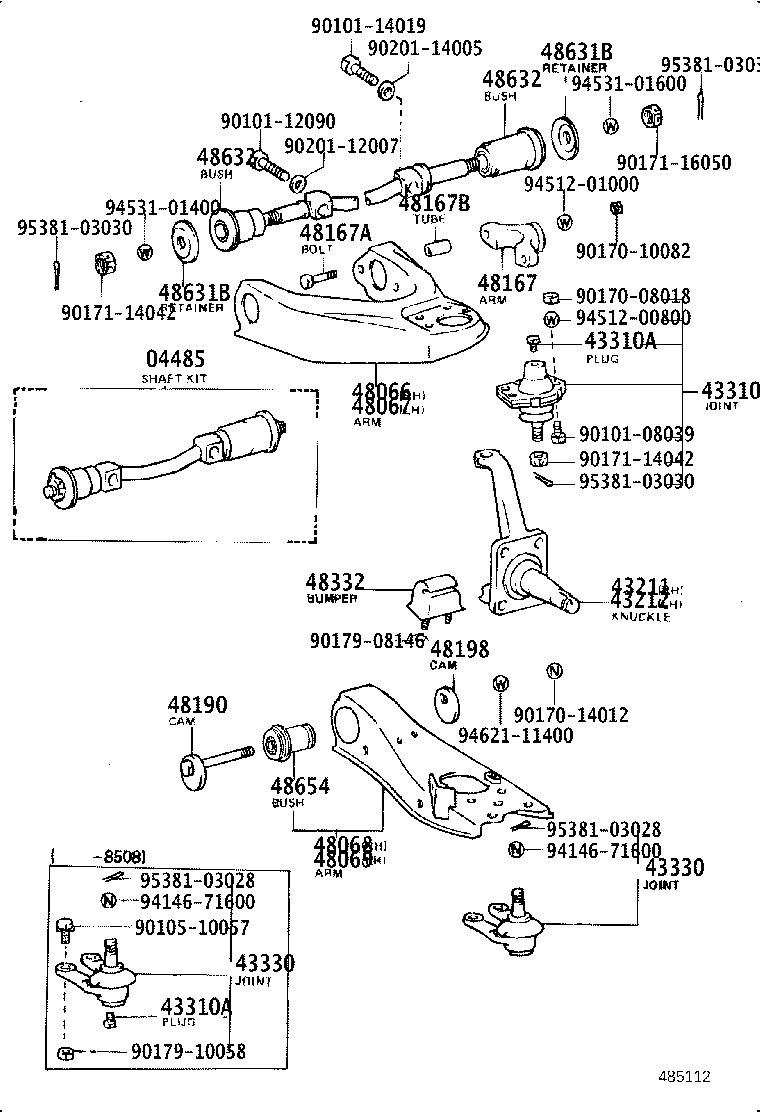

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-28020 |
YR2# |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-28020 |
YR2# |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43211-28020 |
YR2# |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43350-29036 |
YR2# RH |
1 | ||
| 43360-29056 |
YR2# LH |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
YR2# UPR & LWR |
4 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
YR2# UPR & LWR |
4 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29115 |
YR2# RH |
1 | ||
| 43340-29095 |
YR2# LH |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29115 |
YR2# RH |
1 | ||
| 43340-29095 |
YR2# LH |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48601-28010 |
YR2# |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48602-28010 |
YR2# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-28020 |
YR2# |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-28020 |
YR2# |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-28010 |
YR2# |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 91121-71085 |
YR2# |
4 | ||
| 48167B - TUBE(FOR TORQUE ARM SETTING BOLT) | ||||
| 90440-17029 |
YR2# |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-20010 |
YR2# |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-20010 |
YR2# |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48331-29055 |
YR2# |
2 | ||
| 48331-29045 |
YR2# |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02049 |
YR2# FR |
2 | ||
| 90948-02048 |
YR2# RR |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02049 |
YR2# FR |
2 | ||
| 90948-02048 |
YR2# RR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30040 |
YR2# FR |
2 | ||
| 48635-28010 |
YR2# RR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30040 |
YR2# FR |
2 | ||
| 48635-28010 |
YR2# RR |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-28010 |
YR2# |
2 | ||
| Common parts | ||||
| 90101-08039 | ||||
| 90101-12090 | ||||
| 90101-14019 | ||||
| 90105-10057 | ||||
| 90170-08018 | ||||
| 90170-10082 | ||||
| 90170-14012 | ||||
| 90171-14042 | ||||
| 90171-16050 | ||||
| 90179-08146 | ||||
| 90179-10058 | ||||
| 90201-12007 | ||||
| 90201-14005 | ||||
| 94146-71600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| 94531-01600 | ||||
| 94621-11400 | ||||
| 95381-03028 | ||||
| 95381-03030 | ||||
| 95381-03035 | ||||
