YR21LG-PDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 04477 47910 47910D 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9113150840 9113150840 9161160816 9165640820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

YR2#,3#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-28060

YR2#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-28030

YR2#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

YR2#,3#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

YR2#,3#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

YR2#,3#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

YR2#,3#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

YR2#,3#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-28020

YR2#,3#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26020

YR2#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

YR2#,3#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

YR2#,3#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

YR2#,3#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

YR2#,3#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

YR2#,3#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-27010

YR2#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

YR2#,3#

 1
Common parts
90201-23360
91131-50840
91611-60816
91656-40820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

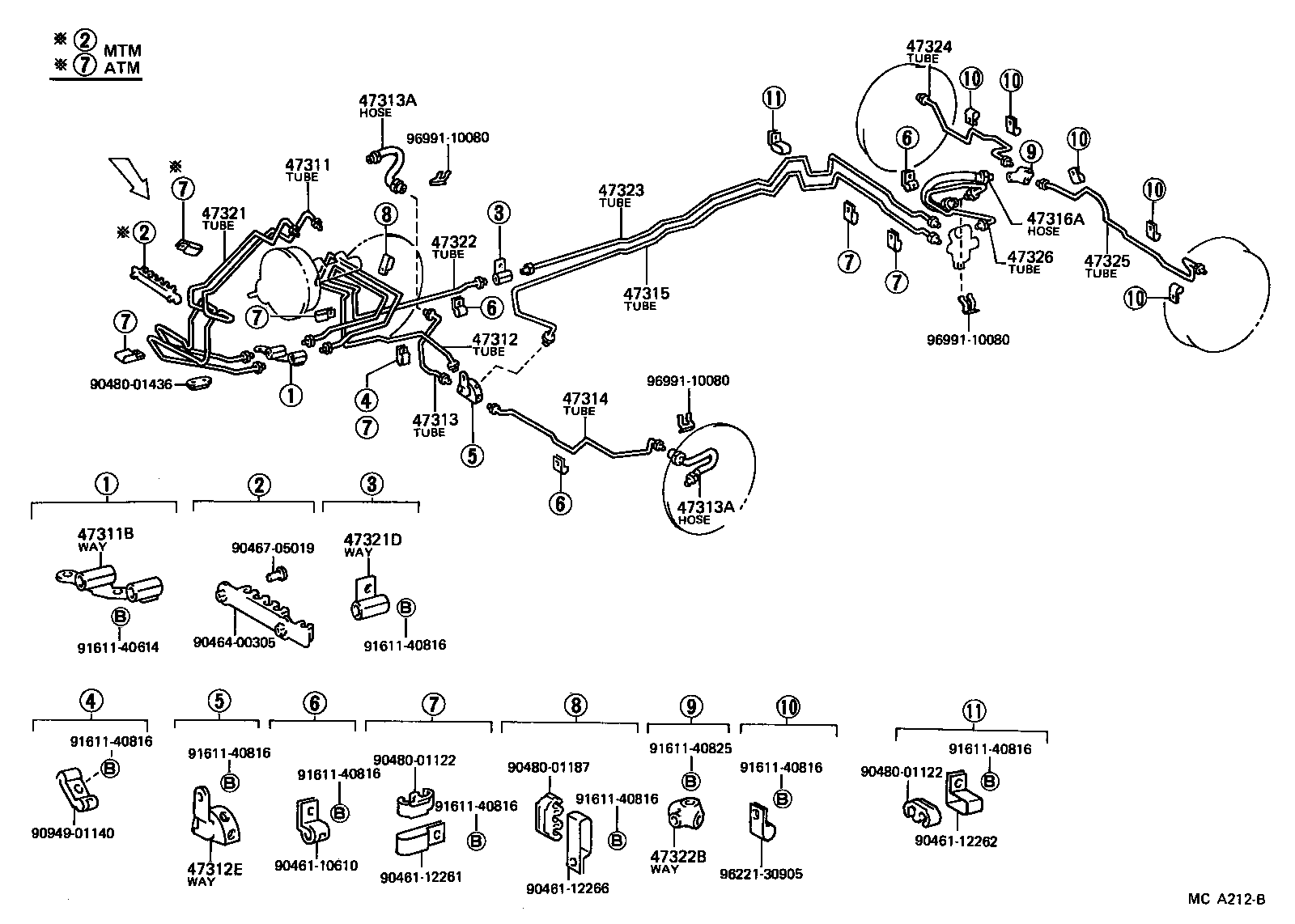

ILLUST NO. 1 OF 2(8308-8508)

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321D 47322 47322B 47323 47324 47325 47326 9046110610 9046112261 9046112262 9046112266 9046400305 9046705019 9048001122 9048001122 9048001187 9048001436 9094901140 9161140614 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140825 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-28070

YR2#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10097

YR2#,3#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28050

YR2#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10011

YR2#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28030

YR2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32805

YR21

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32805

YR21

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-28030

YR2#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-28020

YR2#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33105

YR2#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-28070

YR2#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10063

YR2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-28050

YR2#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10130

YR2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28100

YR2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28040

YR2#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-28060

YR2#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-28060

YR2#

 1
Common parts
90461-10610
90461-12261
90461-12262
90461-12266
90464-00305
90467-05019
90480-01122
90480-01187
90480-01436
90949-01140
91611-40614
91611-40816
91611-40825
96221-30905
96991-10080
