YR21LG-PDEK (1983)
Toyota Van
Production
Aug 1983
-
Aug 1985
Engine
3YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8508)4FC

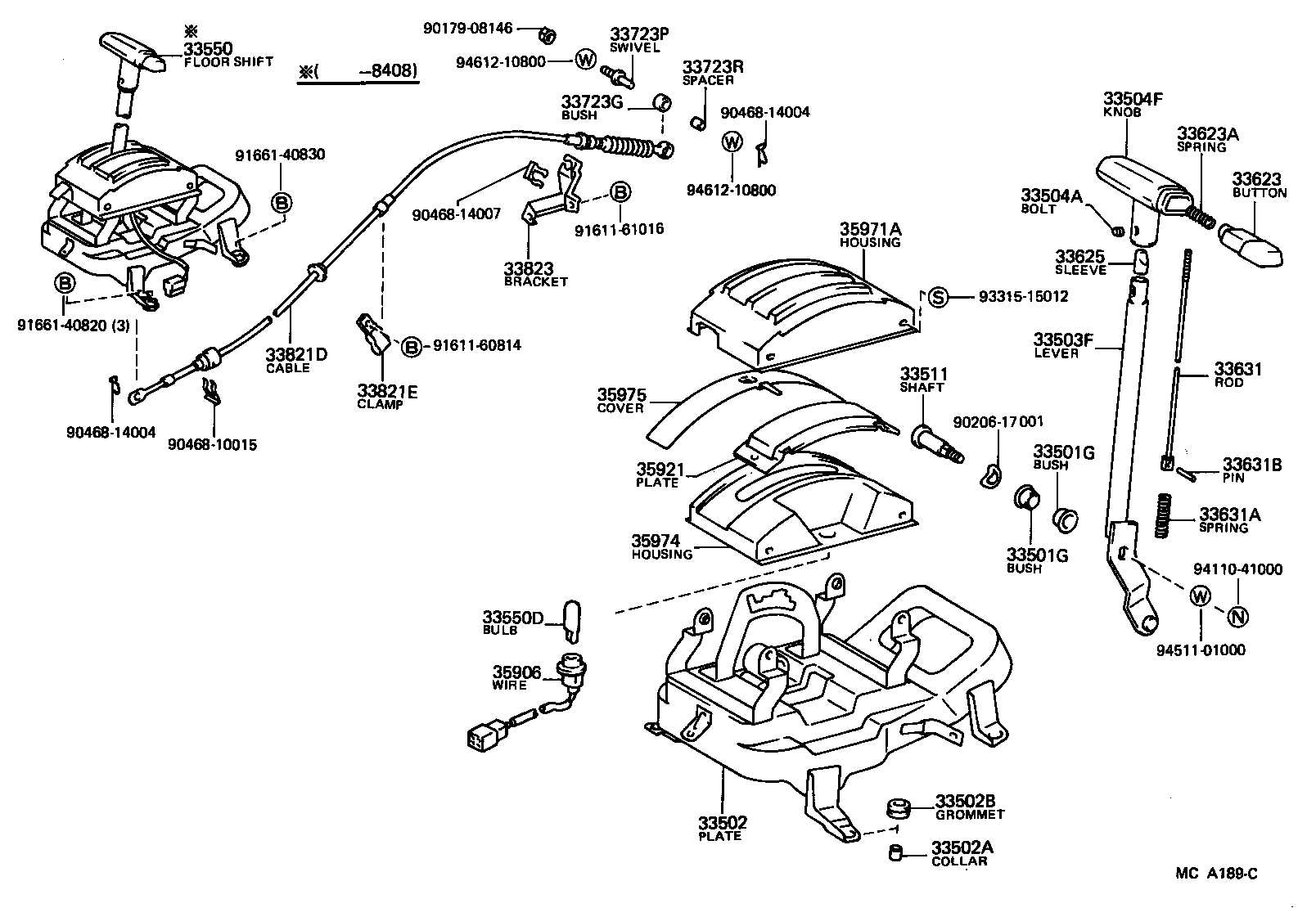

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16003 |
YR2#,3#..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-16003 |
YR2#,3#..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-28020 |
YR2#..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-09011 |
YR2#,3#..4FC OD=13.6 |
4 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13012 |
YR2#,3#..4FC |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-28040 |
YR2#..4FC |
1 | ||
| 33503-28041 |
YR2#..4FC |
1 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
YR2#..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1002002 |
YR21..4FC WINE,WINE,TRIM4# |
1 | ||
| 33542-2403005 |
YR21..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-30300 |
YR2#..4FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-2805005 |
YR21..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
YR2#..4FC 12V 3.4W |
1 | ||
| 99132-11034 |
YR2#..4FC 12V 3.4W |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004025 |
YR2#..4FC BEIGE,BEIGE,TRIM4# |
1 | ||
| 33623-3004002 |
YR2#..4FC WINE,RED/MAROON,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
YR2#,3#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
YR2#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-28021 |
YR2#..4FC |
1 | ||
| 33631-28020 |
YR2#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
YR2#..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04001 |
YR2#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-10063 |
YR2#,3#..4FC |
1 | ||
| 33723P - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT CONTROL CABLE) | ||||
| 33723-28010 |
YR2#,3#..4FC |
1 | ||
| 33723R - SPACER (FOR FLOOR SHIFT CONTROL CABLE) | ||||
| 90560-08366 |
YR2#,3#..4FC |
1 | ||
| 33821D - CABLE, TRANSMISSION CONTROL (ATM) | ||||
| 33820-28010 |
YR2#,3#..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01093 |
YR2#,3#..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-28010 |
YR2#,3#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-28010 |
YR2#..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-28030 |
YR2#..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-28010 |
YR2#..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-28010 |
YR2#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-28010 |
YR2#..4FC |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90206-17001 | ||||
| 90468-10015 | ||||
| 90468-14004 | ||||
| 90468-14007 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| 91661-40820 | ||||
| 91661-40830 | ||||
| 93315-15012 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
