YR21LG-PDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

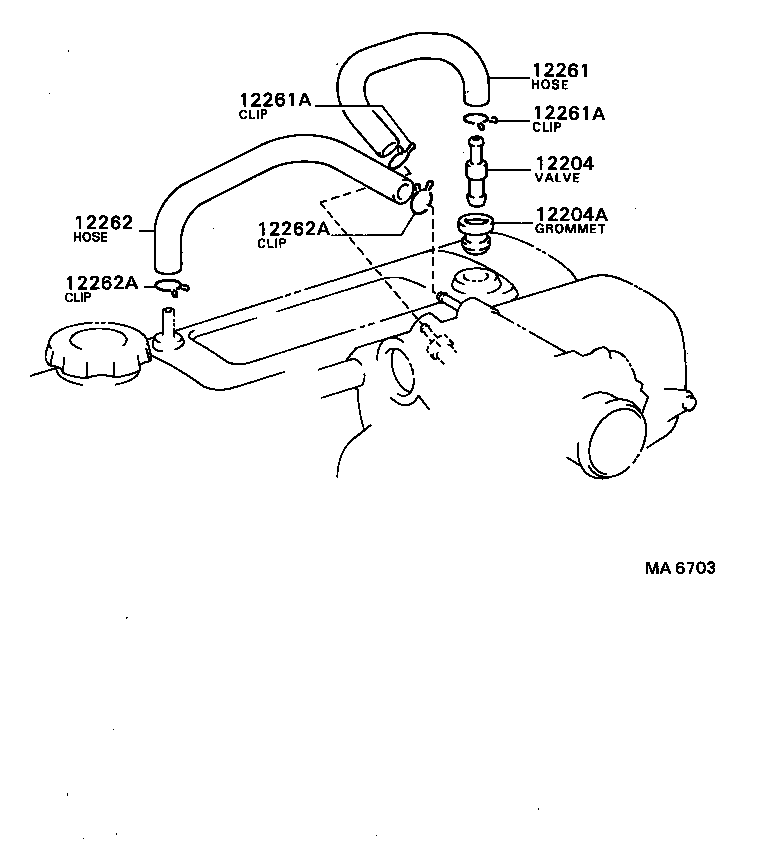

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-71010

3YEC,4YEC..YR2#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3YEC,4YEC..YR2#,3#

 1
12261 - HOSE, VENTILATION
12261-73020

3YEC,4YEC..YR2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15006

3YEC,4YEC..YR2#,3#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15006

3YEC,4YEC..YR2#,3#

 2
12262 - HOSE, VENTILATION, NO.2
12262-73010

3YEC,4YEC..YR2#,3#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006

3YEC,4YEC..YR2#,3#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006

3YEC,4YEC..YR2#,3#

 2
