YR21LG-PDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

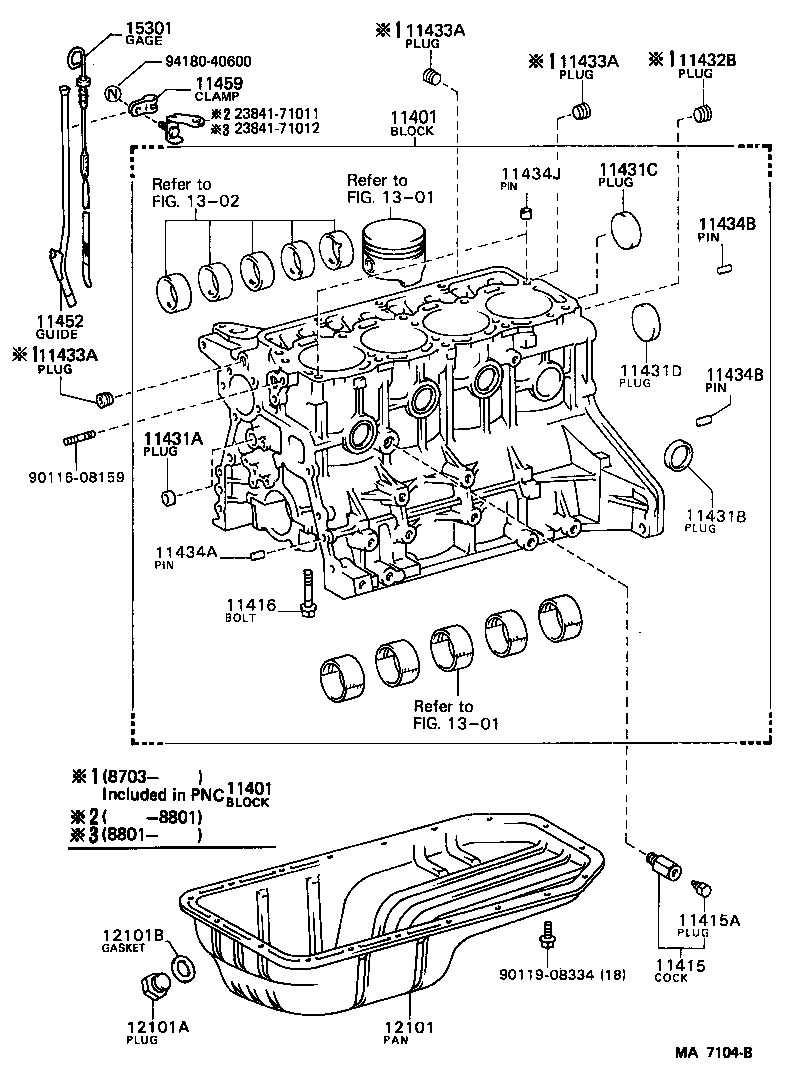

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11432B 11433A 11433A 11433A 11434A 11434B 11434B 11434J 11452 11459 12101 12101A 12101B 1301 1301 1302 15301 2384171011 2384171012 9011608159 9011908334 9418040600
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79085

3YEC..YR2#

 1
11401-79086

3YEC..YR2#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

3YEC..YR2#

 1
90910-09070

3YEC..YR2#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

3YEC..YR2#

 1
90910-09072

3YEC..YR2#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

3YEC,4YEC..YR2#,3#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-01800

3YEC,4YEC..YR2#,3#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

3YEC,4YEC..YR2#,3#

OD=35

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

3YEC,4YEC..YR2#,3#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-45000

3YEC,4YEC..YR2#,3#

OD=50

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53002

3YEC..YR2#

 1
11433A - PLUG, STRAIGHT, NO.1
90344-51014

3YEC..YR2#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51014

3YEC..YR2#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51014

3YEC..YR2#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

3YEC,4YEC..YR2#,3#

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

3YEC,4YEC..YR2#,3#

L=18,OD=8,L=18,OD=8

 2
90250-10113

3YEC,4YEC..YR2#,3#

L=22,OD=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

3YEC,4YEC..YR2#,3#

L=18,OD=8,L=18,OD=8

 2
90250-10113

3YEC,4YEC..YR2#,3#

L=22,OD=10,L=22,OD=10

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

3YEC,4YEC..YR2#,3#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-71020

3YEC,4YEC..YR2#,3#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-71010

3YEC..YR2#

 1
12101 - PAN SUB-ASSY, OIL
12101-71010

3YEC..YR2#

 1
12101-71030

3YEC..YR2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

3YEC..YR2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12009

3YEC..YR2#

ID=12

 1
90430-18244

3YEC..YR2#

ID=18

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71020

3YEC,4YEC..YR2#,3#

 1
Common parts
23841-71011
23841-71012
90116-08159
90119-08334
94180-40600
Linked diagrams
1301
1302
