YR21LG-PDEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )YR21,22,31

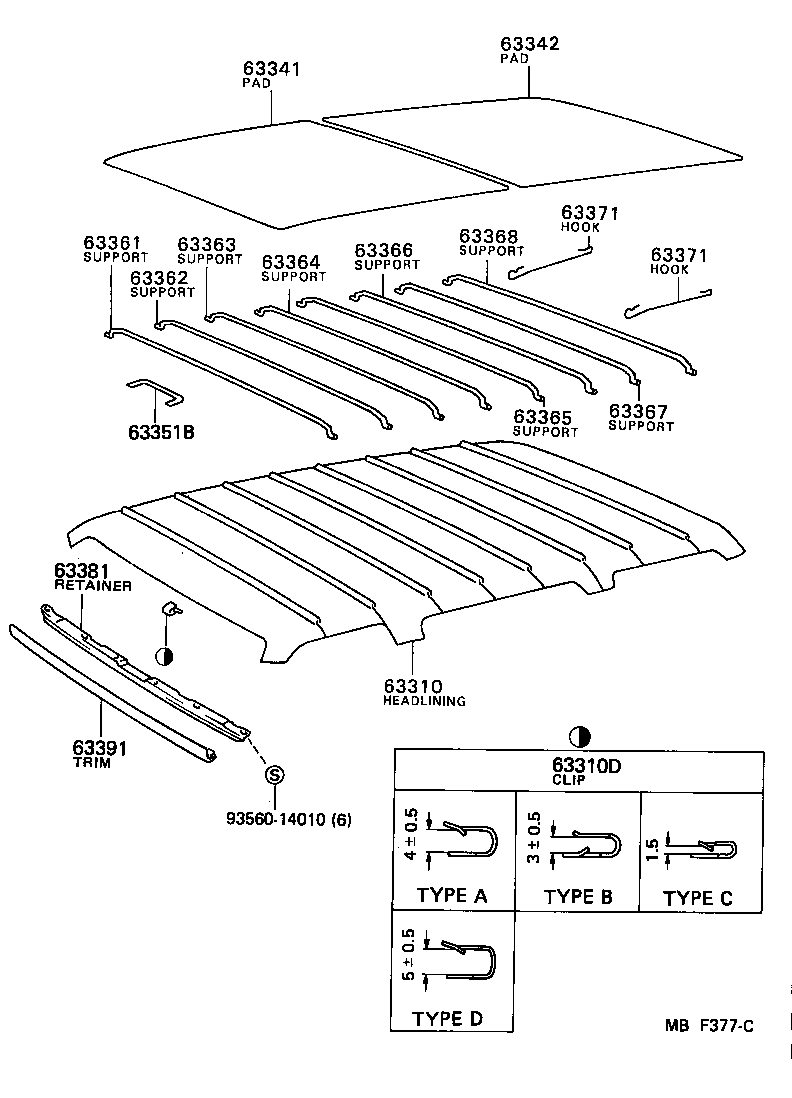

Click highlighted areas on diagram

diagram 63310 63310D 63341 63342 63351B 63361 63362 63363 63364 63365 63366 63367 63368 63371 63371 63381 63391 9356014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2802005

YR21

BEIGE,BEIGE,TRIM4#

 1
63310-2802015

YR21

BEIGE,BEIGE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90468-04073

YR2#,3#

TYPE C

 8
90468-04017

YR2#,3#

TYPE A

 1
90468-04008

YR2#,3#

TYPE B

 1
90468-04092

YR21,22,31

TYPE D

 2
63341 - PAD, ROOF SILENCER, NO.1
63342-87007

YR21,22,31

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-87007

YR21,22,31

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-87003

YR21,22,31

L=1100

 1
63361-87006

YR21,22,31

L=1105

 1
63361-87004

YR21,22,31

L=1110

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-87003

YR21,22,31

L=1113

 1
63362-87004

YR21,22,31

L=1123

 1
63362-87006

YR21,22,31

L=1118

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-87006

YR21,22,31

L=1127

 1
63363-87003

YR21,22,31

L=1122

 1
63363-87004

YR21,22,31

L=1132

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63363-87003

YR21,22,31

L=1122

 1
63363-87006

YR21,22,31

L=1127

 1
63363-87004

YR21,22,31

L=1132

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63363-87004

YR21,22,31

L=1132

 1
63363-87003

YR21,22,31

L=1122

 1
63363-87006

YR21,22,31

L=1127

 1
63366 - SUPPORT, ROOF HEADLINING, NO.6
63363-87006

YR21,22,31

L=1127

 1
63363-87003

YR21,22,31

L=1122

 1
63363-87004

YR21,22,31

L=1132

 1
63367 - SUPPORT, ROOF HEADLINING, NO.7
63363-87006

YR21,22,31

L=1127

 1
63363-87003

YR21,22,31

L=1122

 1
63363-87004

YR21,22,31

L=1132

 1
63368 - SUPPORT, ROOF HEADLINING, NO.8
63363-87006

YR21,22,31

L=1127

 1
63363-87003

YR21,22,31

L=1122

 1
63363-87004

YR21,22,31

L=1132

 1
63371 - HOOK, ROOF HEADLINING SUPPORT
63372-87002

YR21,22,31

 2
63371 - HOOK, ROOF HEADLINING SUPPORT
63372-87002

YR21,22,31

 2
63381 - RETAINER, HEADLINING, FRONT
63381-28010

YR2#,3#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2801005

YR2#

BEIGE,BEIGE,TRIM4#

 1
63391-2801015

YR2#

BEIGE,BEIGE,TRIM4#

 1
Common parts
93560-14010
