YR21LG-MQEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

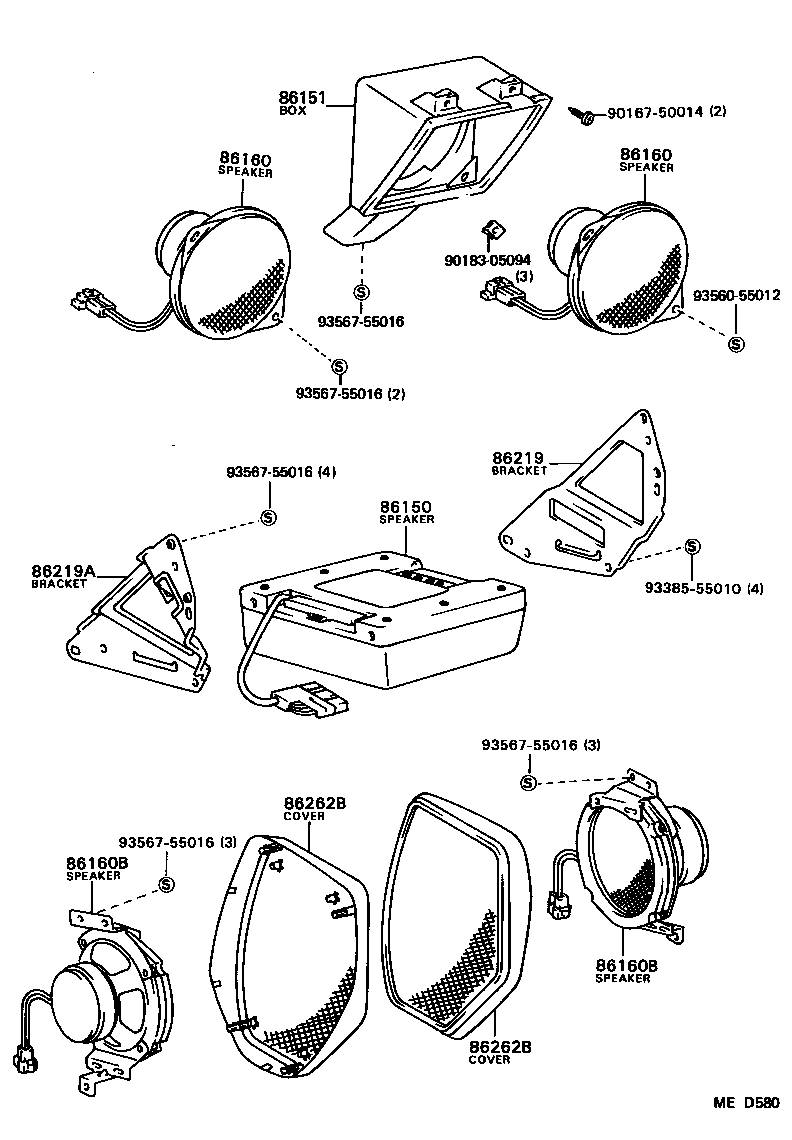

ILLUST NO. 1 OF 2(8308- )

Click highlighted areas on diagram

diagram 86150 86151 86160 86160 86160B 86160B 86219 86219A 86262B 86262B 9016750014 9018305094 9338555010 9356055012 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-87003

YR21

 1
86151 - BOX, SPEAKER
86151-87001

YR21,22,31

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-10140

YR2#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-10140

YR2#

 2
86160B - SPEAKER ASSY, REAR
86160-87008

YR21,22,31

LH

 1
86160-87007

YR21,22,31

RH

 1
86160B - SPEAKER ASSY, REAR
86160-87008

YR21,22,31

LH

 1
86160-87007

YR21,22,31

RH

 1
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-28010

YR21,22,31

 1
86219A - BRACKET, STEREO COMPONENT SPEAKER, NO.2
86219-28020

YR21,22,31

 1
86262B - COVER, SPEAKER, REAR
86225-8700103

YR21..LE

RH,GRAY,GRAY,TRIM1#

 1
86226-8700105

YR21

LH,BEIGE,BEIGE,TRIM4#

 1
86225-8700105

YR21

RH,BEIGE,BEIGE,TRIM4#

 1
86225-8700115

YR21

RH,BEIGE,BEIGE,TRIM4#

 1
86226-8700115

YR21

LH,BEIGE,BEIGE,TRIM4#

 1
86226-8700103

YR21..LE

LH,GRAY,GRAY,TRIM1#

 1
86262B - COVER, SPEAKER, REAR
86225-8700103

YR21..LE

RH,GRAY,GRAY,TRIM1#

 1
86226-8700105

YR21

LH,BEIGE,BEIGE,TRIM4#

 1
86225-8700105

YR21

RH,BEIGE,BEIGE,TRIM4#

 1
86225-8700115

YR21

RH,BEIGE,BEIGE,TRIM4#

 1
86226-8700115

YR21

LH,BEIGE,BEIGE,TRIM4#

 1
86226-8700103

YR21..LE

LH,GRAY,GRAY,TRIM1#

 1
Common parts
90167-50014
90183-05094
93385-55010
93560-55012
93567-55016

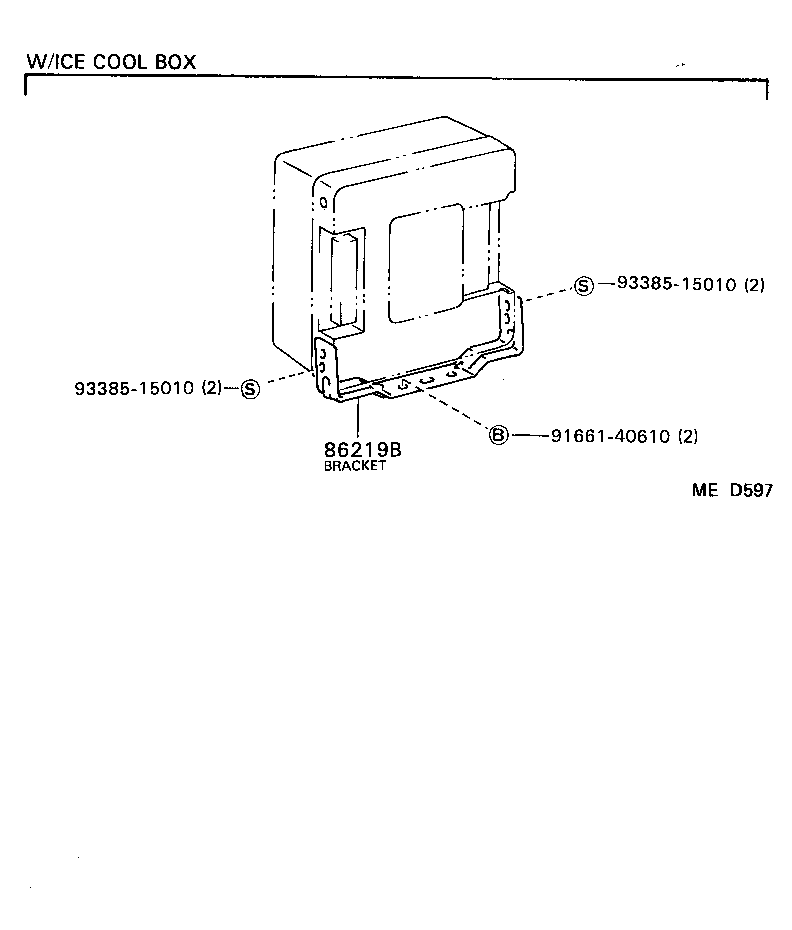

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 86219B 9166140610 9338515010 9338515010
Part # Description Qty Price
86219B - BRACKET, STEREO COMPONENT SPEAKER, NO.3
86219-87001

YR21,22,31

 1
Common parts
91661-40610
93385-15010
