YR21LG-MDEK (1983)
Toyota Van
(8308- )

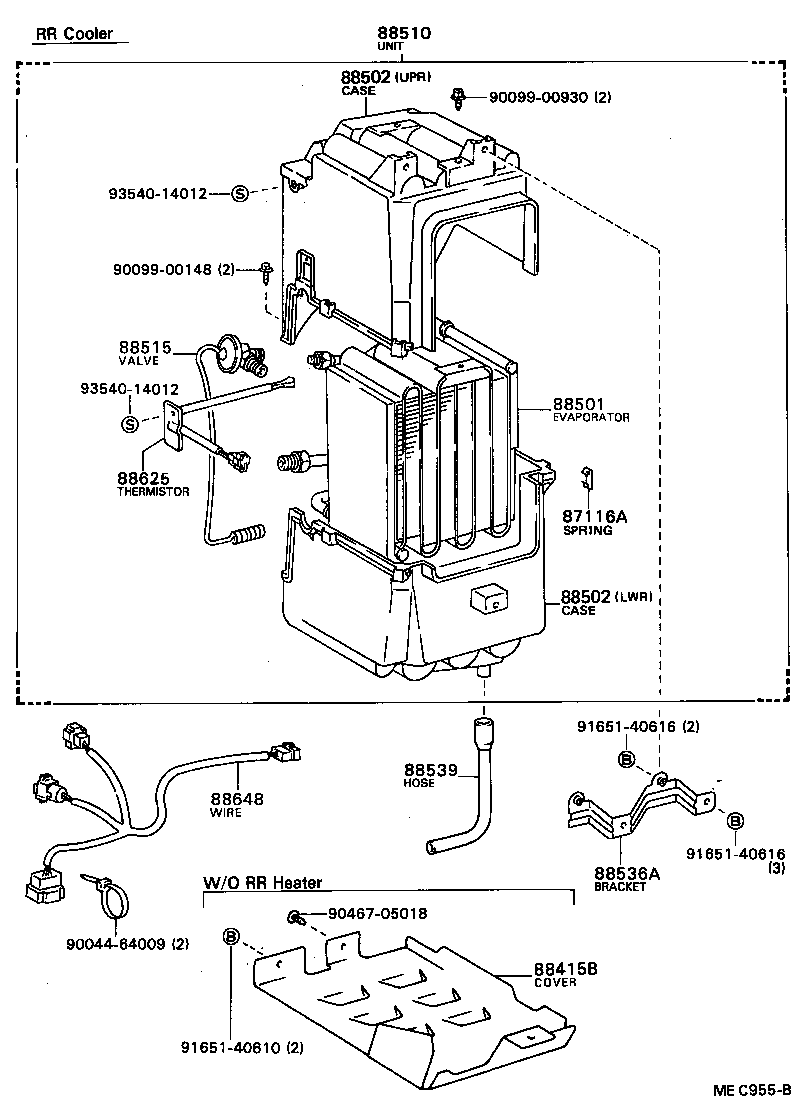

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87007 |
YR21 RR |
1 | ||
| 88501-28010 |
YR21;YR27..USA FR |
1 | ||
| 88501-87008 |
YR21,22,31 COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-2805005 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88502-2805002 |
YR21;YR27..USA WINE,WINE,TRIM4# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-2805005 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88502-2805002 |
YR21;YR27..USA WINE,WINE,TRIM4# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28060 |
YR21..5F FR,DEALER OPTION |
1 | ||
| 88510-87011 |
YR21;YR27..USA RR |
1 | ||
| 88510-28041 |
YR21;YR27..USA FR |
1 | ||
| 88510-87011 |
YR2# RR |
1 | ||
| 88510-28041 |
YR21..5F FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR21,22,31 COOL BOX |
1 | ||
| 88515-87002 |
YR27..USA;YR21,22,29,3# RR COOLER |
1 | ||
| 88515-16030 |
YR2# FR COOLER |
1 | ||
| 88515-16030 |
YR21;YR27..USA FR COOLER |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-87014 |
YR2# |
1 | ||
| 88536-87014 |
YR21;YR27..USA |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-87006 |
YR2# |
1 | ||
| 88539-87006 |
YR21;YR27..USA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-87003 |
YR21,22,31 COOL BOX |
1 | ||
| 88625-20060 |
YR21,22;YR27,29..USA RR COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28010 |
YR2# |
1 | ||
| 88648-28010 |
YR21;YR27..USA |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90099-00148 | ||||
| 90099-00930 | ||||
| 90467-05018 | ||||
| 91651-40610 | ||||
| 91651-40616 | ||||
| 93540-14012 | ||||

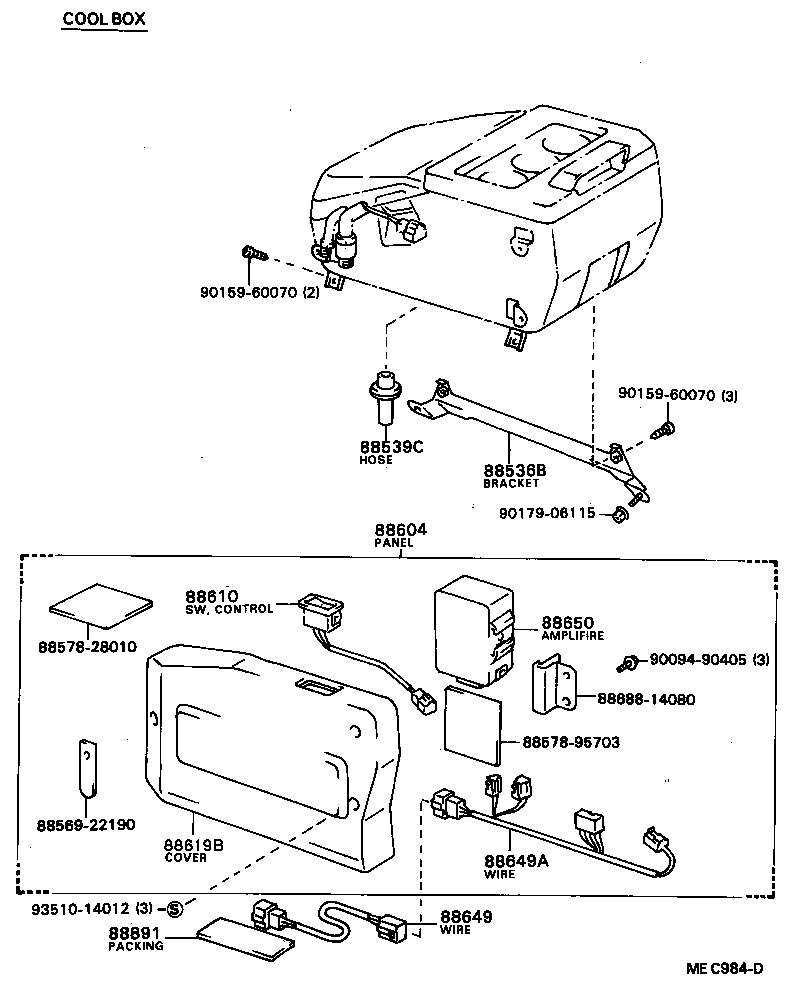

ILLUST NO. 3 OF 4(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-28020 |
YR21,22,31 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-87007 |
YR21,22,31 |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-2801102 |
YR21;YR27..USA WINE,WINE,TRIM4# |
1 | ||
| 88604-2801005 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28020 |
YR21;YR27..USA |
1 | ||
| 88619B - COVER, CONTROL | ||||
| 88619-2801003 |
YR21 GRAY,GRAY,TRIM1# |
1 | ||
| 88619-2801005 |
YR21 BEIGE,BEIGE,TRIM4# |
1 | ||
| 88619-2801002 |
YR21 WINE,WINE,TRIM4# |
1 | ||
| 88619-2801004 |
YR21 BLUE,BLUE,TRIM1# |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-87008 |
YR21,22,31 |
1 | ||
| 88649A - WIRING, COOLER, NO.3 | ||||
| 88648-28040 |
YR21;YR27..USA |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28010 |
YR21;YR27..USA FR COOLING UNIT |
1 | ||
| 88650-14051 |
YR21..5F W/SINGLE AIR CONDITIONER |
1 | ||
| 88650-87009 |
YR21;YR27..USA COOL BOX |
1 | ||
| 88650-28010 |
YR2# FR COOLING UNIT |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88899-28030 |
YR21,22,31 |
1 | ||
| Common parts | ||||
| 88569-22190 | ||||
| 88578-28010 | ||||
| 88578-95703 | ||||
| 88688-14080 | ||||
| 90094-90405 | ||||
| 90159-60070 | ||||
| 90179-06115 | ||||
| 93510-14012 | ||||

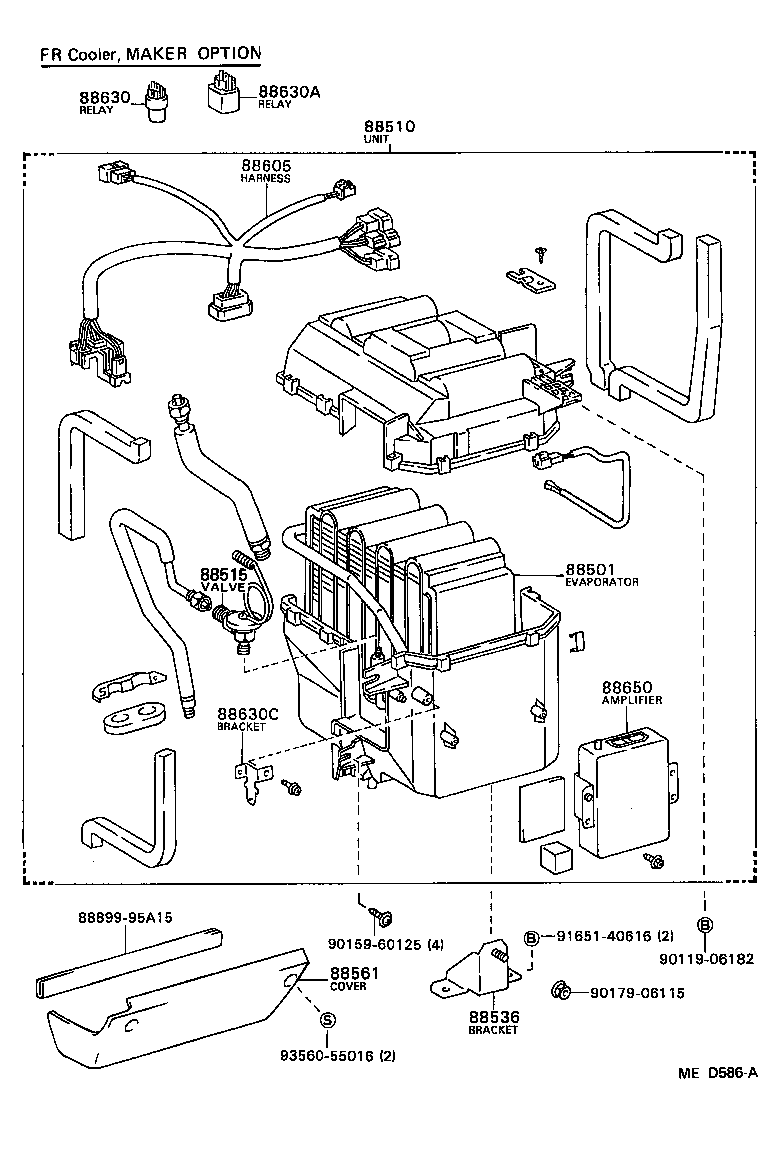

ILLUST NO. 1 OF 4(8308-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87007 |
YR21 RR |
1 | ||
| 88501-28010 |
YR21;YR27..USA FR |
1 | ||
| 88501-87008 |
YR21,22,31 COOL BOX |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28060 |
YR21..5F FR,DEALER OPTION |
1 | ||
| 88510-87011 |
YR21;YR27..USA RR |
1 | ||
| 88510-28041 |
YR21;YR27..USA FR |
1 | ||
| 88510-87011 |
YR2# RR |
1 | ||
| 88510-28041 |
YR21..5F FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR21,22,31 COOL BOX |
1 | ||
| 88515-87002 |
YR27..USA;YR21,22,29,3# RR COOLER |
1 | ||
| 88515-16030 |
YR2# FR COOLER |
1 | ||
| 88515-16030 |
YR21;YR27..USA FR COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-28010 |
YR21;YR27..USA |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88899-28010 |
YR21;YR27..USA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28031 |
YR21..5F |
1 | ||
| 88605-28050 |
YR21..5F W/SINGLE AIR CONDITIONER |
1 | ||
| 88605-28031 |
YR21;YR27..USA |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
YR21;YR27..USA |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
YR21;YR27..USA |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-28010 |
YR21,22,27 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28010 |
YR21;YR27..USA FR COOLING UNIT |
1 | ||
| 88650-14051 |
YR21..5F W/SINGLE AIR CONDITIONER |
1 | ||
| 88650-87009 |
YR21;YR27..USA COOL BOX |
1 | ||
| 88650-28010 |
YR2# FR COOLING UNIT |
1 | ||
| Common parts | ||||
| 88899-95A15 | ||||
| 90119-06182 | ||||
| 90159-60125 | ||||
| 90179-06115 | ||||
| 91651-40616 | ||||
| 93560-55016 | ||||

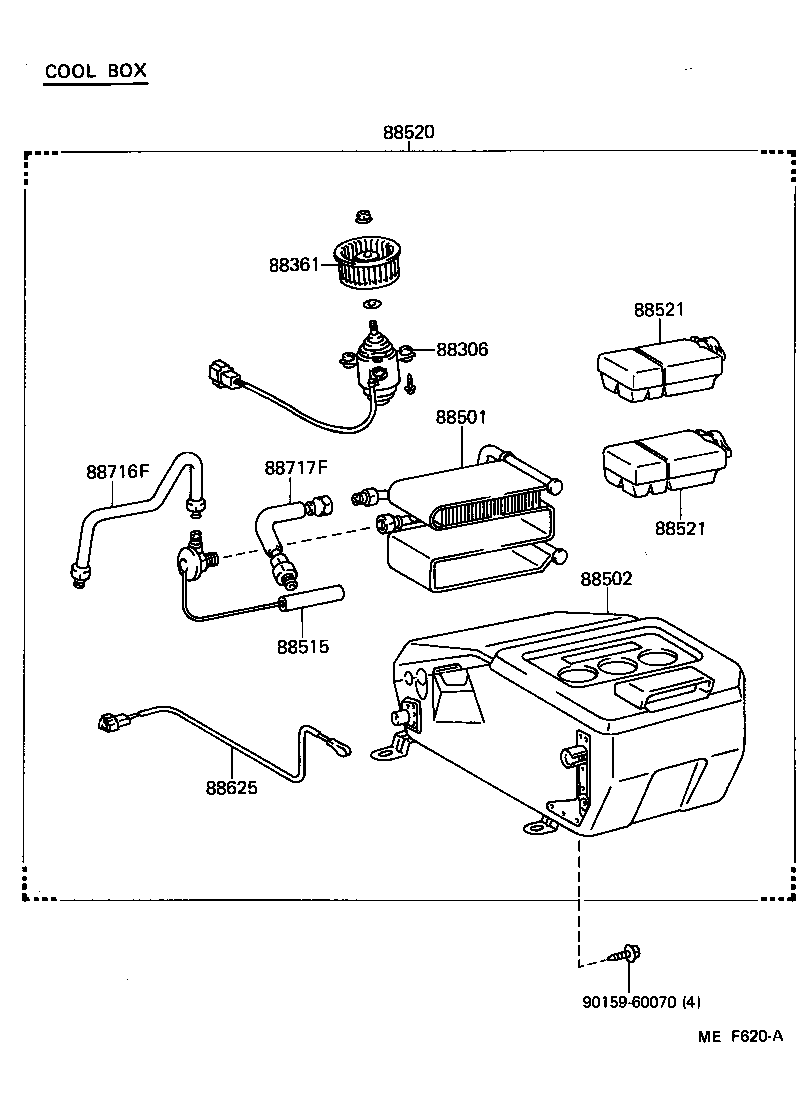

ILLUST NO. 4 OF 4(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-87008 |
YR21,22,31 |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
YR21,22,31 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87007 |
YR21 RR |
1 | ||
| 88501-28010 |
YR21;YR27..USA FR |
1 | ||
| 88501-87008 |
YR21,22,31 COOL BOX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-2805005 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88502-2805002 |
YR21;YR27..USA WINE,WINE,TRIM4# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR21,22,31 COOL BOX |
1 | ||
| 88515-87002 |
YR27..USA;YR21,22,29,3# RR COOLER |
1 | ||
| 88515-16030 |
YR2# FR COOLER |
1 | ||
| 88515-16030 |
YR21;YR27..USA FR COOLER |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-2801005 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88520-2801002 |
YR21;YR27..USA WINE,WINE,TRIM4# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-28020 |
YR21,22,31 |
2 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-28020 |
YR21,22,31 |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-87003 |
YR21,22,31 COOL BOX |
1 | ||
| 88625-20060 |
YR21,22;YR27,29..USA RR COOLER |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-87042 |
YR21,22,31 COOL BOX |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-87036 |
YR21,22,31 COOL BOX |
1 | ||
| Common parts | ||||
| 90159-60070 | ||||

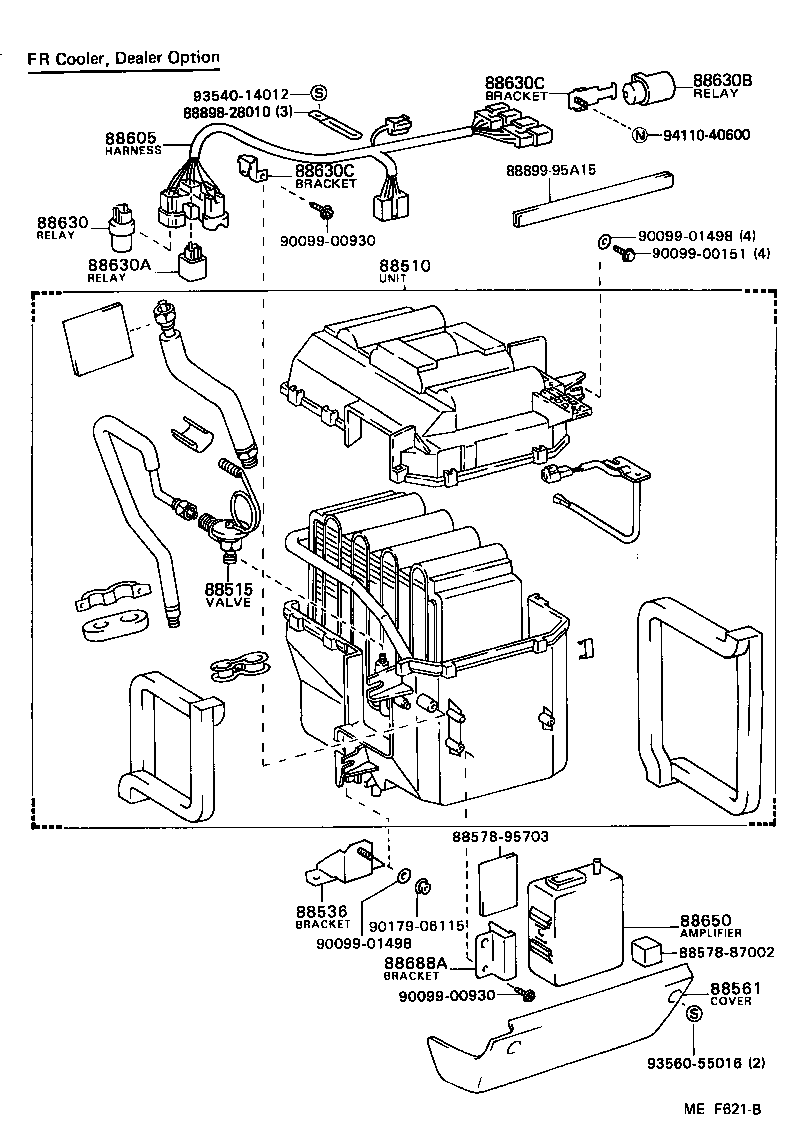

ILLUST NO. 1 OF 4(8408-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28060 |
YR21..5F FR,DEALER OPTION |
1 | ||
| 88510-87011 |
YR21;YR27..USA RR |
1 | ||
| 88510-28041 |
YR21;YR27..USA FR |
1 | ||
| 88510-87011 |
YR2# RR |
1 | ||
| 88510-28041 |
YR21..5F FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR21,22,31 COOL BOX |
1 | ||
| 88515-87002 |
YR27..USA;YR21,22,29,3# RR COOLER |
1 | ||
| 88515-16030 |
YR2# FR COOLER |
1 | ||
| 88515-16030 |
YR21;YR27..USA FR COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-28010 |
YR21;YR27..USA |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88899-28010 |
YR21;YR27..USA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28031 |
YR21..5F |
1 | ||
| 88605-28050 |
YR21..5F W/SINGLE AIR CONDITIONER |
1 | ||
| 88605-28031 |
YR21;YR27..USA |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
YR21;YR27..USA |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
YR21;YR27..USA |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-28010 |
YR21,22,27 |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-28010 |
YR21,22,27 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28010 |
YR21;YR27..USA FR COOLING UNIT |
1 | ||
| 88650-14051 |
YR21..5F W/SINGLE AIR CONDITIONER |
1 | ||
| 88650-87009 |
YR21;YR27..USA COOL BOX |
1 | ||
| 88650-28010 |
YR2# FR COOLING UNIT |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
YR21..5F |
1 | ||
| Common parts | ||||
| 88578-87002 | ||||
| 88578-95703 | ||||
| 88898-28010 | ||||
| 88899-95A15 | ||||
| 90099-00151 | ||||
| 90099-00930 | ||||
| 90099-01498 | ||||
| 90179-06115 | ||||
| 93540-14012 | ||||
| 93560-55016 | ||||
| 94110-40600 | ||||
