YR21LG-MDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

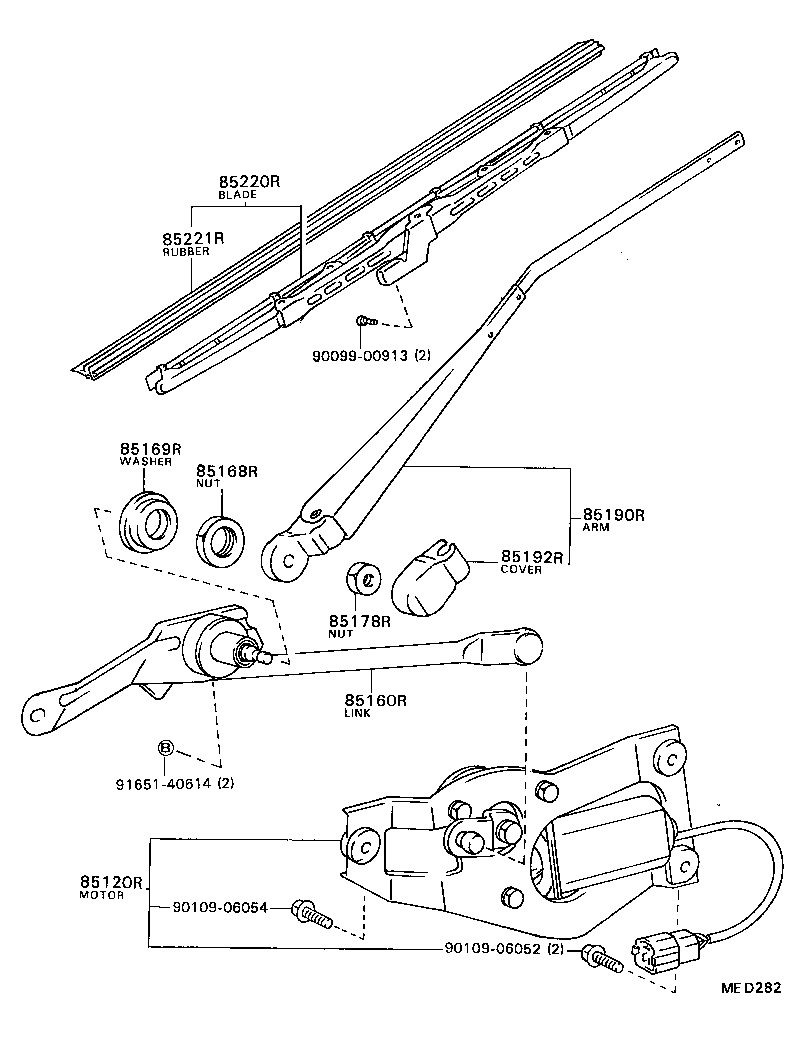

Click highlighted areas on diagram

diagram 85120R 85160R 85168R 85169R 85178R 85190R 85192R 85220R 85221R 9009900913 9010906052 9010906054 9165140614
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-87002

YR21;YR27..USA

 1
85160R - LINK ASSY, REAR WIPER
85160-87004

YR21;YR27..USA

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

YR21;YR27..USA

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-87004

YR21;YR27..USA

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06115

YR21;YR27..USA

 1
85190R - ARM ASSY, REAR WIPER
85190-87004

YR21;YR27..USA

 1
85192R - COVER, REAR WIPER ARM
85192-14020

YR21;YR27..USA

 1
85220R - BLADE ASSY, REAR WIPER
85220-22370

YR21;YR27..USA

 1
85221R - BLADE, REAR WIPER
85221-87002

YR21;YR27..USA

 1
Common parts
90099-00913
90109-06052
90109-06054
91651-40614
