YR21LG-MDEK (1983)
Toyota Van
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-2801002 |
YR2#..DLX,STD WINE,RED/MAROON,TRIM4# |
1 | ||
| 55301-2801002 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-28020 |
YR2# |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-28010 |
YR2#,3# |
1 | ||
| 55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER | ||||
| 55307-87001 |
YR2#,3# |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55316-87001 |
YR2#,3# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-28020 |
YR2# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28010 |
YR2#,3# |
1 | ||
| 55357A - PROTECTOR, EDGE, NO.1 | ||||
| 55358-28020 |
YR2# |
4 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-28010 |
YR2#..DLX,STD WINE |
1 | ||
| 55404-2801002 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-28010 |
YR2#,3# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-28010 |
YR2# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-28010 |
YR2#..DLX,STD |
1 | ||
| 55401-2801002 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55408-2801002 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 55408-2801002 |
YR2#..DLX,STD WINE,RED/MAROON,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-87001 |
YR2#,3# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-2801001 |
YR2#..DLX,STD BLACK,BLACK,TRIM4# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-87001 |
YR2#,3# |
2 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-87001 |
YR2#,3# |
2 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-8700302 |
YR2# W/*TIS,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55432-8700302 |
YR21..DLX W/*TIS,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55432-8700402 |
YR2#..DLX,STD WINE,RED/MAROON,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 58824-87002 |
YR2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-87001 |
YR2#,3# |
2 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12100 |
YR2#..DLX,STD |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12100 |
YR2#..DLX,STD |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55476-28010 |
YR2#,3# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-87002 |
YR2# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-87002 |
YR2#,3# |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55573-87001 |
YR2#,3# RH |
1 | ||
| 55573-32010 |
YR2#,3# LH |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55573-87001 |
YR2#,3# RH |
1 | ||
| 55573-32010 |
YR2#,3# LH |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-2801002 |
YR21..DLX WINE,RED/MAROON,TRIM4# |
1 | ||
| 55511-2801002 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-28010 |
YR2#..DLX,STD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401001 |
YR2# BLACK,BLACK,TRIM1#,4# |
5 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401001 |
YR2# BLACK,BLACK,TRIM1#,4# |
5 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401001 |
YR2# BLACK,BLACK,TRIM1#,4# |
5 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401001 |
YR2# BLACK,BLACK,TRIM1#,4# |
5 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2401001 |
YR2# BLACK,BLACK,TRIM1#,4# |
5 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
YR2# |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
YR2#,3# |
1 | ||
| 55648 - SEAL, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55648-87001 |
YR21 W/*TIS |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-2801002 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2801002 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-8700102 |
YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| Common parts | ||||
| 55539-87005 | ||||
| 90044-67063 | ||||
| 90119-06042 | ||||
| 90119-06048 | ||||
| 90119-08063 | ||||
| 90151-40005 | ||||
| 90159-50144 | ||||
| 90159-50212 | ||||
| 90161-26007 | ||||
| 90167-50014 | ||||
| 90168-50023 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90183-05009 | ||||
| 90183-05076 | ||||
| 90183-05094 | ||||
| 90254-04016 | ||||
| 90463-05001 | ||||
| 90468-05049 | ||||
| 90541-03015 | ||||
| 91661-60816 | ||||
| 93385-16016 | ||||
| 93567-15012 | ||||
| 93567-15016 | ||||
| 93567-55012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||

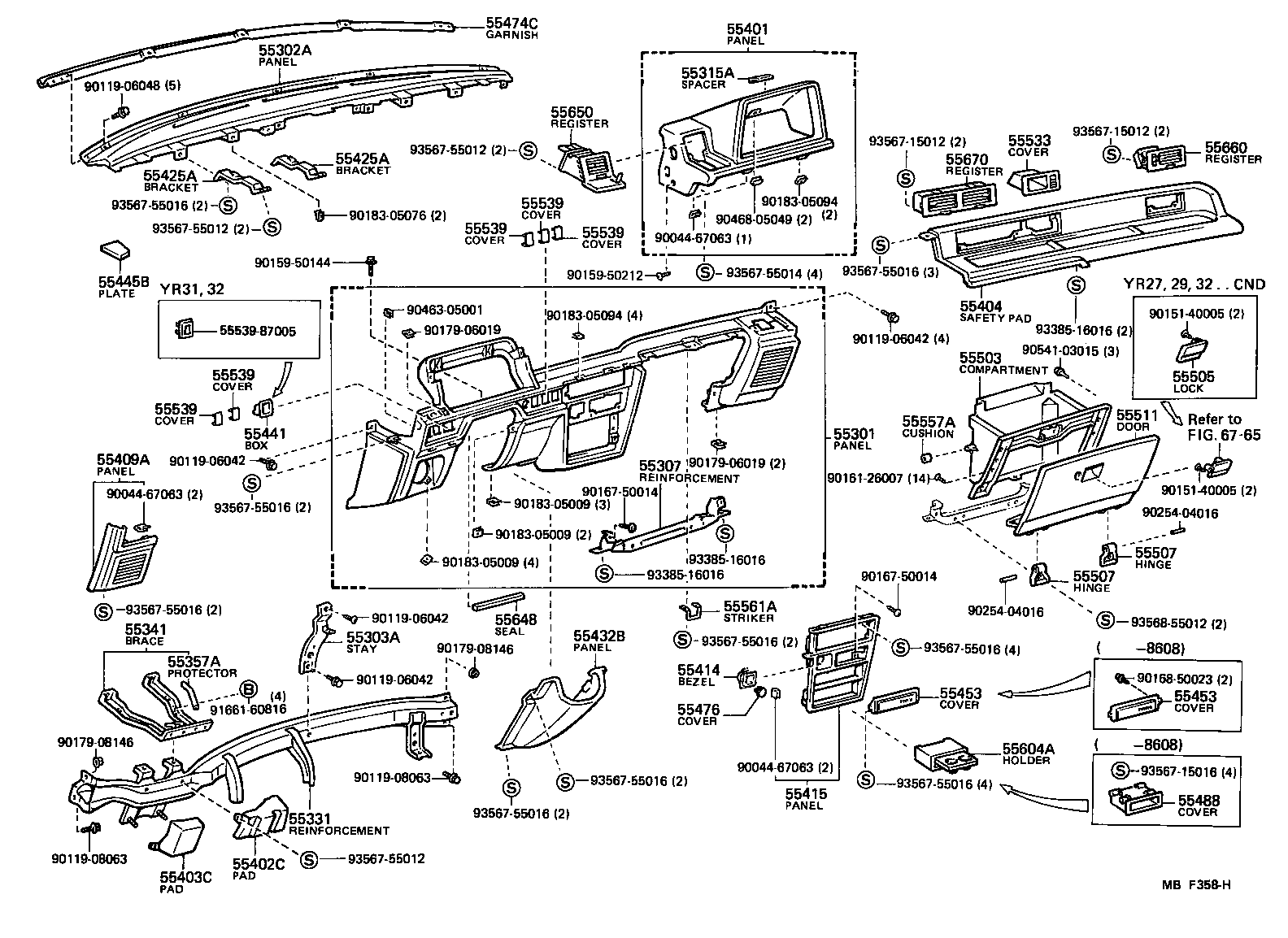

| Linked diagrams | ||||
| 6765 | ||||
