YR21LG-MDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)

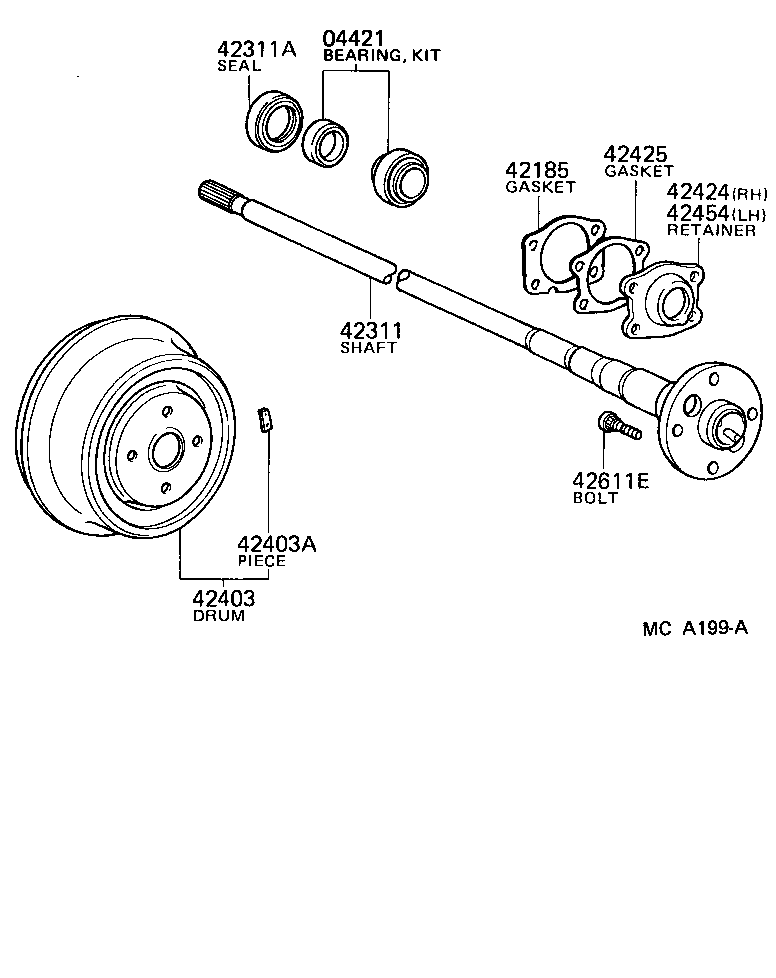

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-27010

YR2#

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-28010

YR2#

 2
42311 - SHAFT, REAR AXLE
42311-22110

YR2#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

YR2#,3#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28020

YR2#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01119

YR2#,3#

30G,30G

 2
90937-01146

YR2#

25G,50G

 2
90937-01178

YR2#

56G,56G

 2
90937-01100

YR2#

40.5G,40.5G

 2
90937-01118

YR2#,3#

20G,20G

 2
90937-01117

YR2#,3#

10G,10G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

YR2#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

YR2#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

YR2#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02035

YR21

 8
