YR21LG-MDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)

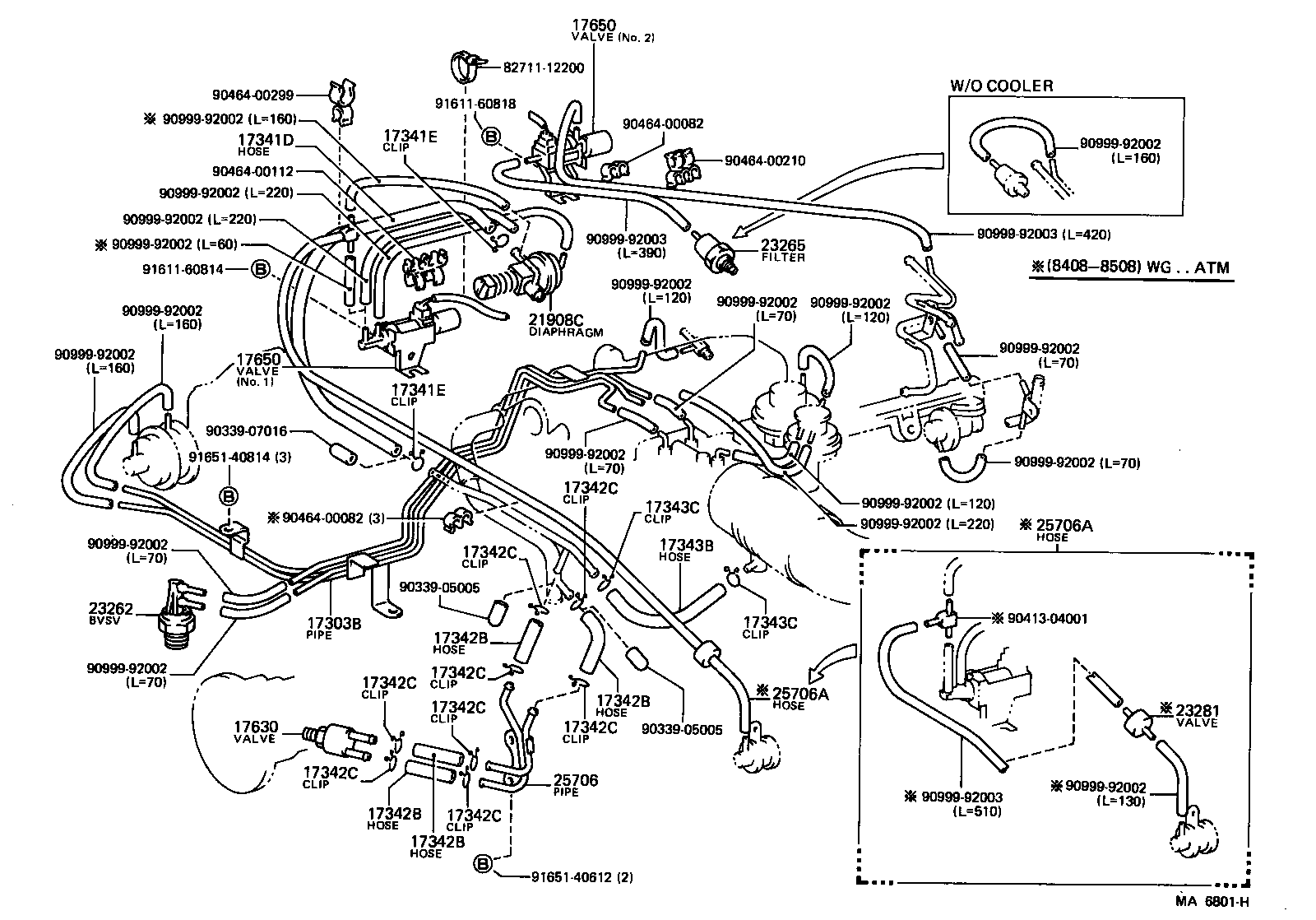

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17342B 17342B 17342B 17342B 17342C 17342C 17342C 17342C 17342C 17342C 17342C 17342C 17343B 17343C 17343C 17630 17650 17650 21908C 23262 23265 23281 25706 25706A 25706A 8271112200 9033905005 9033905005 9033907016 9041304001 9046400082 9046400082 9046400112 9046400210 9046400299 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9161160814 9161160818 9165140612 9165140814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-73010

3YEC..YR2#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-73020

3YEC,4YEC..YR2#,3#

W/COOLER,W/PS & COOLER

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-11085

3YEC,4YEC..YR2#

W/O PS

 2
90467-12058

3YEC,4YEC..YR2#,3#

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-11085

3YEC,4YEC..YR2#

W/O PS

 2
90467-12058

3YEC,4YEC..YR2#,3#

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17343B - HOSE, NO.3(FOR IDLE-UP)
90445-12130

3YEC,4YEC..YR2#,3#

W/PS OR COOLER

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

W/PS OR COOLER

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

W/PS OR COOLER

 2
17630 - VALVE ASSY, AIR CONTROL
17630-28010

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28070

3YEC..YR2#

W/COOLER,NO.2

 1
89570-28060

3YEC..YR2#

W/COOLER,NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28070

3YEC..YR2#

W/COOLER,NO.2

 1
89570-28060

3YEC..YR2#

W/COOLER,NO.1

 1
21908C - DIAPHRAGM SUB-ASSY, IDLE-UP
88606-28010

3YEC,4YEC..YR2#,3#

W/COOLER,W/PS & COOLER

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05017

3YEC,4YEC..YR2#,3#

 1
23265 - FILTER, GAS, NO.1
90917-11022

3YEC,4YEC..YR2#,3#

W/COOLER

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
17645-73010

3YEC..YR2#

W/PS,W/PS & COOLER

 1
Common parts
82711-12200
90339-05005
90339-07016
90413-04001
90464-00082
90464-00112
90464-00210
90464-00299
90999-92002
90999-92003
91611-60814
91611-60818
91651-40612
91651-40814

(8308- )

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
