YR21LG-MDEA (1983)
Toyota Van
ILLUST NO. 4 OF 6(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87203 - DUCT, HEATER AIR, REAR NO.1 | ||||
| 87202-87001 |
YR21;YR27..USA |
1 | ||
| 87203A - DUCT ASSY, HEATER AIR, REAR | ||||
| 87212-87004 |
YR21;YR27..USA |
1 | ||
| 87212-28010 |
YR21 COLD SPEC |
1 | ||
| 87211D - COVER, HEATER AIR DUCT HOLE | ||||
| 55077-87002 |
YR21,22,31..USA |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-87003 |
YR21,22,29,3# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-87001 |
YR21,22,29,3# |
1 | ||
| 87216 - DUCT, HEATER INTERIOR AIR (TO REAR) | ||||
| 87213-28010 |
YR21 COLD SPEC |
1 | ||
| 87213-87002 |
YR21;YR27..USA |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 88565-8700105 |
YR21;YR27..USA UPR,*SUH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88565-8700115 |
YR21;YR27..USA UPR,*SUH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 87226-87003 |
YR21,22,29,3# LWR |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 88565-8700105 |
YR21;YR27..USA UPR,*SUH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88565-8700115 |
YR21;YR27..USA UPR,*SUH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 87226-87003 |
YR21,22,29,3# LWR |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88622-87001 |
YR21;YR27..USA ROOF DUCT |
1 | ||
| 88622-28010 |
YR21 W/BOOST VENTILATOR |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-87005 |
YR21 NO.3 |
1 | ||
| 88549-87004 |
YR21 NO.2 |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-87005 |
YR21 NO.3 |
1 | ||
| 88549-87004 |
YR21 NO.2 |
1 | ||
| 88549A - PLATE, CAUTION | ||||
| 88549-87005 |
YR21 NO.3 |
1 | ||
| 88549-87004 |
YR21 NO.2 |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88560-8700205 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88560-8700202 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| 88560-8700205 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801005 |
YR21;YR27..USA BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88570-2801015 |
YR2# BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801005 |
YR21;YR27..USA BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88570-2801015 |
YR2# BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-8700105 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88571-8700102 |
YR2# WINE,WINE,TRIM4# |
1 | ||
| Common parts | ||||
| 87214-87007 | ||||
| 90109-06032 | ||||
| 90159-50144 | ||||
| 90179-06115 | ||||
| 90467-05022 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93210-56016 | ||||
| 93540-15010 | ||||
| 93560-15014 | ||||
| 93567-54512 | ||||
| 93568-55012 | ||||
ILLUST NO. 3 OF 6(8308-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 55086-28010 |
YR2# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-28020 |
YR2#,3# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-28010 |
YR2# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-28010 |
YR2#,3# |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55087-28010 |
YR2# |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55088-28010 |
YR2#,3# |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-28010 |
YR2# |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55084-28010 |
YR2# |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 87211-28020 |
YR2# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-22011 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 87173-87005 | ||||
| 90159-60125 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
ILLUST NO. 5 OF 6(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87226 - ADAPTER, AIR DUCT | ||||
| 88565-8700105 |
YR21;YR27..USA UPR,*SUH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88565-8700115 |
YR21;YR27..USA UPR,*SUH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 87226-87003 |
YR21,22,29,3# LWR |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88622-87001 |
YR21;YR27..USA ROOF DUCT |
1 | ||
| 88622-28010 |
YR21 W/BOOST VENTILATOR |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-2801015 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88566-2801005 |
YR21;YR27..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801005 |
YR21;YR27..USA BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88570-2801015 |
YR2# BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801005 |
YR21;YR27..USA BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88570-2801015 |
YR2# BEIGE,W/RR COOLER,BEIGE,TRIM4# |
2 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-87009 |
YR2# |
1 | ||
| 88648-87009 |
YR21;YR27..USA |
1 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-87014 |
YR21,22,29,3# |
2 | ||
| Common parts | ||||
| 90099-01514 | ||||
| 90099-02212 | ||||
| 90179-06035 | ||||
| 91655-40616 | ||||
| 93530-25025 | ||||
| 93540-45014 | ||||

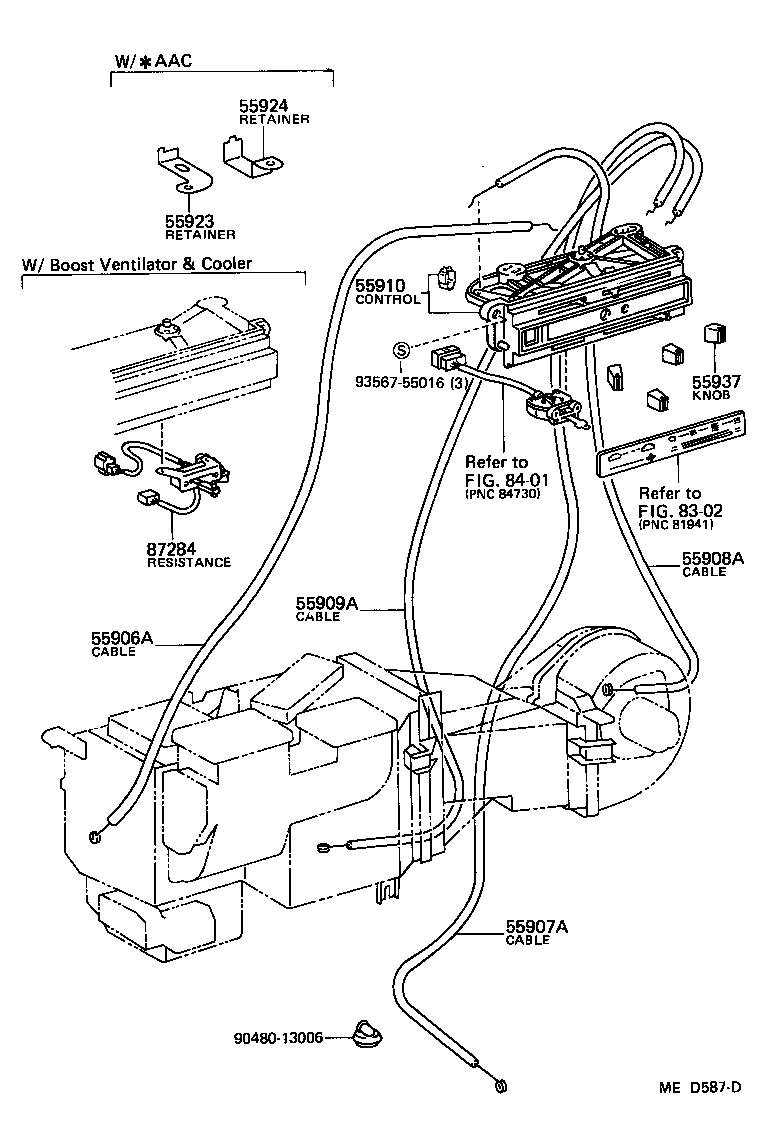

ILLUST NO. 1 OF 6(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-87004 |
YR2# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-28010 |
YR2#,3# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-87003 |
YR2# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28022 |
YR21;YR27..USA RR HEATER |
1 | ||
| 55909-28010 |
YR2#,3# FR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-2802002 |
YR21 RR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55910-2801002 |
YR21 RR,W/FR & RR COOLER,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55910-2801102 |
YR21 RR,W/FR & RR COOLER,WINE,WINE,TRIM4# |
1 | ||
| 55910-2802102 |
YR2# RR,WINE,WINE,TRIM4# |
1 | ||
| 55910-87012 |
YR21..USA FR,W/BOOST VENTILATOR & COOLER |
1 | ||
| 55910-2802002 |
YR2# RR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55910-87006 |
YR2# FR,W/FR HEATER |
1 | ||
| 55910-87008 |
YR21..USA FR,W/BOOST VENTILATOR |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
YR2#,3# |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88622-87001 |
YR21;YR27..USA ROOF DUCT |
1 | ||
| 88622-28010 |
YR21 W/BOOST VENTILATOR |
1 | ||
| Common parts | ||||
| 90480-13006 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

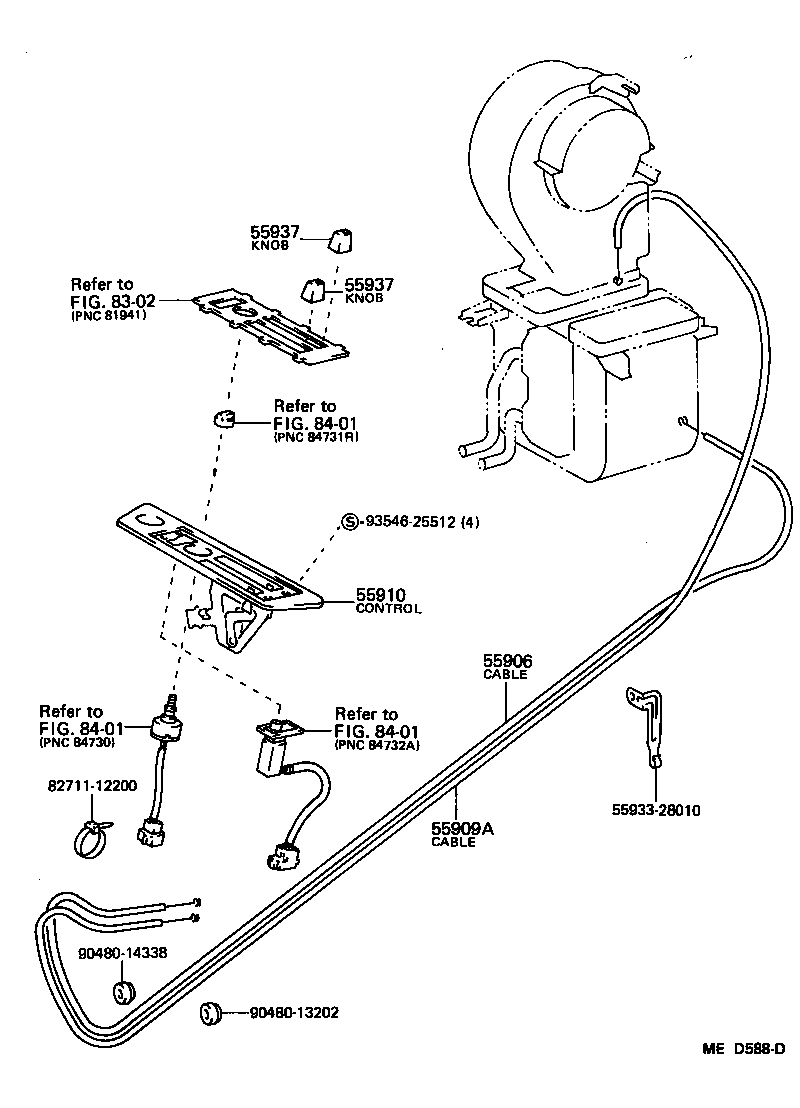

ILLUST NO. 2 OF 6(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-28020 |
YR21 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28022 |
YR21;YR27..USA RR HEATER |
1 | ||
| 55909-28010 |
YR2#,3# FR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-2802002 |
YR21 RR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55910-2801002 |
YR21 RR,W/FR & RR COOLER,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55910-2801102 |
YR21 RR,W/FR & RR COOLER,WINE,WINE,TRIM4# |
1 | ||
| 55910-2802102 |
YR2# RR,WINE,WINE,TRIM4# |
1 | ||
| 55910-87012 |
YR21..USA FR,W/BOOST VENTILATOR & COOLER |
1 | ||
| 55910-2802002 |
YR2# RR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 55910-87006 |
YR2# FR,W/FR HEATER |
1 | ||
| 55910-87008 |
YR21..USA FR,W/BOOST VENTILATOR |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
YR2#,3# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 55933-28010 | ||||
| 82711-12200 | ||||
| 90480-13202 | ||||
| 90480-14338 | ||||
| 93546-25512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
