VCK40L-TRSSKA (1999)
Toyota Tundra

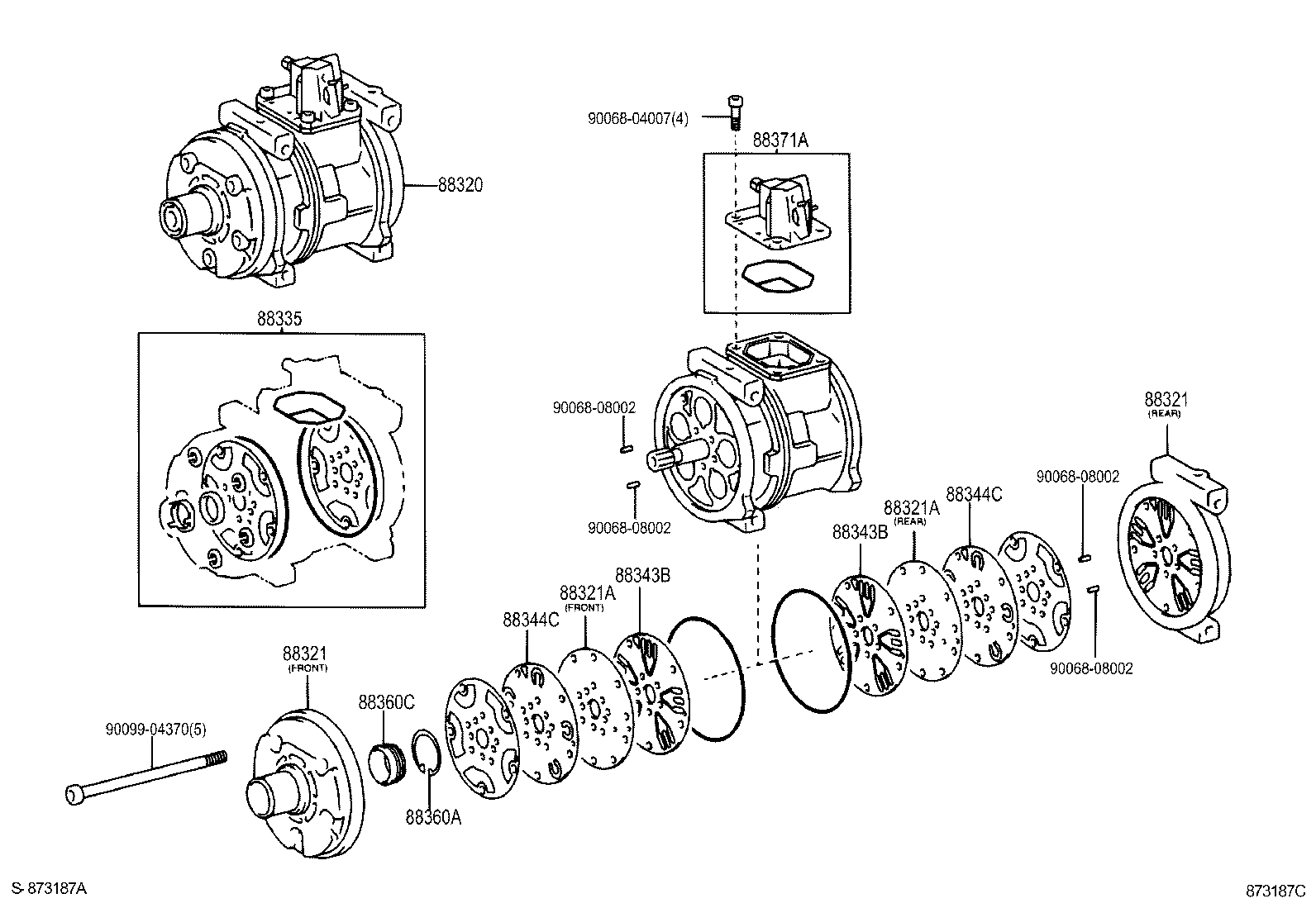

ILLUST NO. 2 OF 2(9902-0408)VCK30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0C020 |
VCK30,40 |
1 | ||
| 88320-0C010 |
UCK30,40 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-2B010 |
VCK30,40 FRONT |
1 | ||
| 88321-48010 |
UCK30,40 |
1 | ||
| 88322-0C020 |
VCK30,40 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-2B010 |
VCK30,40 FRONT |
1 | ||
| 88321-48010 |
UCK30,40 |
1 | ||
| 88322-0C020 |
VCK30,40 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
VCK30,40 REAR |
1 | ||
| 88341-22010 |
VCK30,40 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
VCK30,40 REAR |
1 | ||
| 88341-22010 |
VCK30,40 FRONT |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
VCK30,40 |
1 | ||
| 88335-48070 |
UCK30,40 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-0C040 |
UCK30,40 |
2 | ||
| 88343-0C030 |
VCK30,40 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-0C040 |
UCK30,40 |
2 | ||
| 88343-0C030 |
VCK30,40 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-0C030 |
UCK30,40 |
2 | ||
| 88344-0C020 |
VCK30,40 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-0C030 |
UCK30,40 |
2 | ||
| 88344-0C020 |
VCK30,40 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90068-07005 |
VCK30,40 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-32010 |
UCK30,40 |
1 | ||
| 88360-2B020 |
VCK30,40 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-0C020 |
VCK30,40 |
1 | ||
| Common parts | ||||
| 90068-04007 | ||||
| 90068-08002 | ||||
| 90099-04370 | ||||

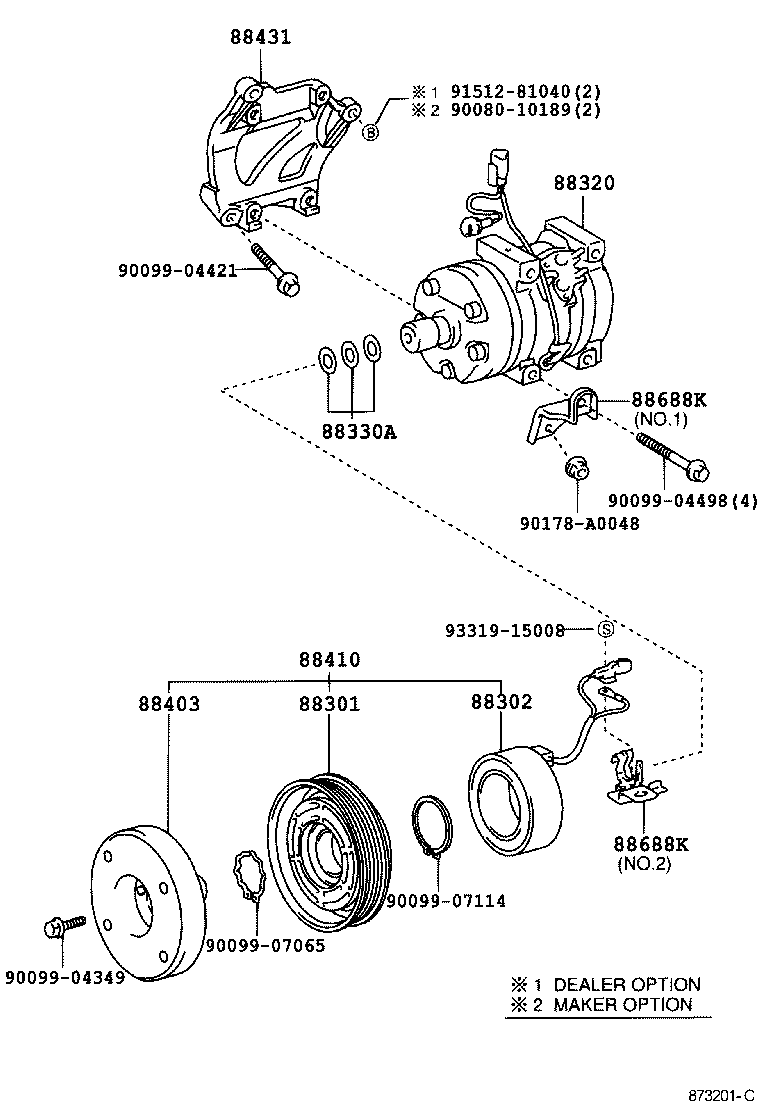

ILLUST NO. 1 OF 2(9902- )UCK3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-0C010 |
UCK30,40 |
1 | ||
| 88412-12150 |
VCK30,40 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
VCK30,40 |
1 | ||
| 88411-0C010 |
UCK30,40 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0C020 |
VCK30,40 |
1 | ||
| 88320-0C010 |
UCK30,40 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
UCK30,40,VCK30,40 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
VCK30,40 |
1 | ||
| 88403-0C010 |
UCK30,40 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-34040 |
VCK30,40 |
1 | ||
| 88410-0C010 |
UCK30,40 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0C011 |
UCK30,40 |
1 | ||
| 88431-0C020 |
VCK30,40 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-0C041 |
UCK30,40 NO.1 |
1 | ||
| 88688-0C040 |
UCK30,40..DLX,SR5 |
1 | ||
| 88688-2D770 |
VCK30,40 |
1 | ||
| 88688-0C040 |
UCK30,40 NO.1 |
1 | ||
| 88688-0C080 |
UCK30,40 NO.2 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-0C041 |
UCK30,40 NO.1 |
1 | ||
| 88688-0C040 |
UCK30,40..DLX,SR5 |
1 | ||
| 88688-2D770 |
VCK30,40 |
1 | ||
| 88688-0C040 |
UCK30,40 NO.1 |
1 | ||
| 88688-0C080 |
UCK30,40 NO.2 |
1 | ||
| Common parts | ||||
| 90080-10189 | ||||
| 90099-04349 | ||||
| 90099-04421 | ||||
| 90099-04498 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90178-A0048 | ||||
| 91512-81040 | ||||
| 93319-15008 | ||||

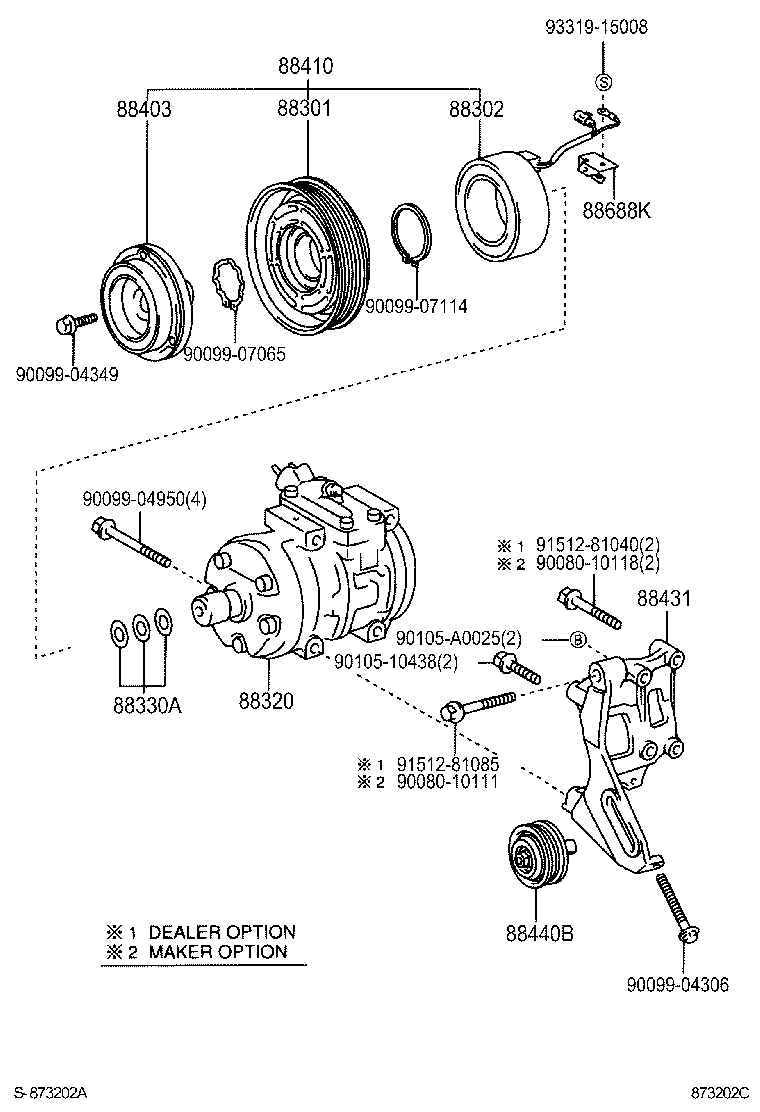

ILLUST NO. 1 OF 2(9902-0408)VCK30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-0C010 |
UCK30,40 |
1 | ||
| 88412-12150 |
VCK30,40 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
VCK30,40 |
1 | ||
| 88411-0C010 |
UCK30,40 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0C020 |
VCK30,40 |
1 | ||
| 88320-0C010 |
UCK30,40 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
UCK30,40,VCK30,40 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
VCK30,40 |
1 | ||
| 88403-0C010 |
UCK30,40 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-34040 |
VCK30,40 |
1 | ||
| 88410-0C010 |
UCK30,40 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0C011 |
UCK30,40 |
1 | ||
| 88431-0C020 |
VCK30,40 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-04040 |
VCK30,40 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-0C041 |
UCK30,40 NO.1 |
1 | ||
| 88688-0C040 |
UCK30,40..DLX,SR5 |
1 | ||
| 88688-2D770 |
VCK30,40 |
1 | ||
| 88688-0C040 |
UCK30,40 NO.1 |
1 | ||
| 88688-0C080 |
UCK30,40 NO.2 |
1 | ||
| Common parts | ||||
| 90080-10111 | ||||
| 90080-10118 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-10438 | ||||
| 90105-A0025 | ||||
| 91512-81040 | ||||
| 91512-81085 | ||||
| 93319-15008 | ||||

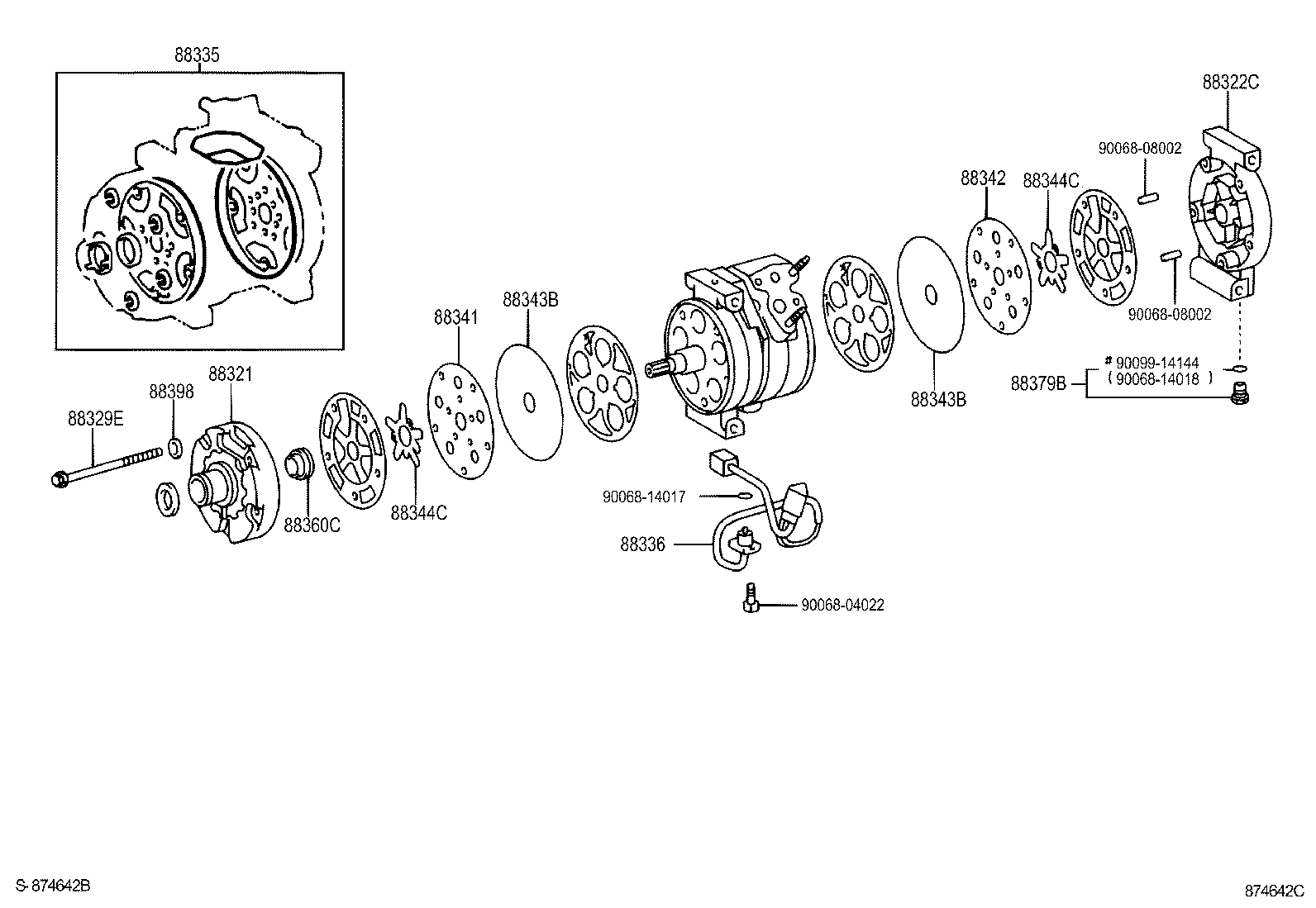

ILLUST NO. 2 OF 2(9902- )UCK3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-2B010 |
VCK30,40 FRONT |
1 | ||
| 88321-48010 |
UCK30,40 |
1 | ||
| 88322-0C020 |
VCK30,40 REAR |
1 | ||
| 88322C - HEAD, CYLINDER, REAR | ||||
| 88322-32060 |
UCK30,40 |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-0C010 |
UCK30,40 |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
VCK30,40 |
1 | ||
| 88335-48070 |
UCK30,40 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-0C010 |
UCK30,40 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-0C010 |
UCK30,40 |
1 | ||
| 88342 - PLATE, COMPRESSOR VALVE, RR | ||||
| 88342-0C010 |
UCK30,40 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-0C040 |
UCK30,40 |
2 | ||
| 88343-0C030 |
VCK30,40 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-0C040 |
UCK30,40 |
2 | ||
| 88343-0C030 |
VCK30,40 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-0C030 |
UCK30,40 |
2 | ||
| 88344-0C020 |
VCK30,40 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-0C030 |
UCK30,40 |
2 | ||
| 88344-0C020 |
VCK30,40 |
2 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-32010 |
UCK30,40 |
1 | ||
| 88360-2B020 |
VCK30,40 |
1 | ||
| 88379B - VALVE, PRESSURE RELIEF | ||||
| 88379-32010 |
UCK30,40 |
1 | ||
| 88398 - PACKING, COMPRESSOR | ||||
| 88398-32010 |
UCK30,40 |
5 | ||
| Common parts | ||||
| 90068-04022 | ||||
| 90068-08002 | ||||
| 90068-14017 | ||||
| 90068-14018 | ||||
| 90099-14144 | ||||
