VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

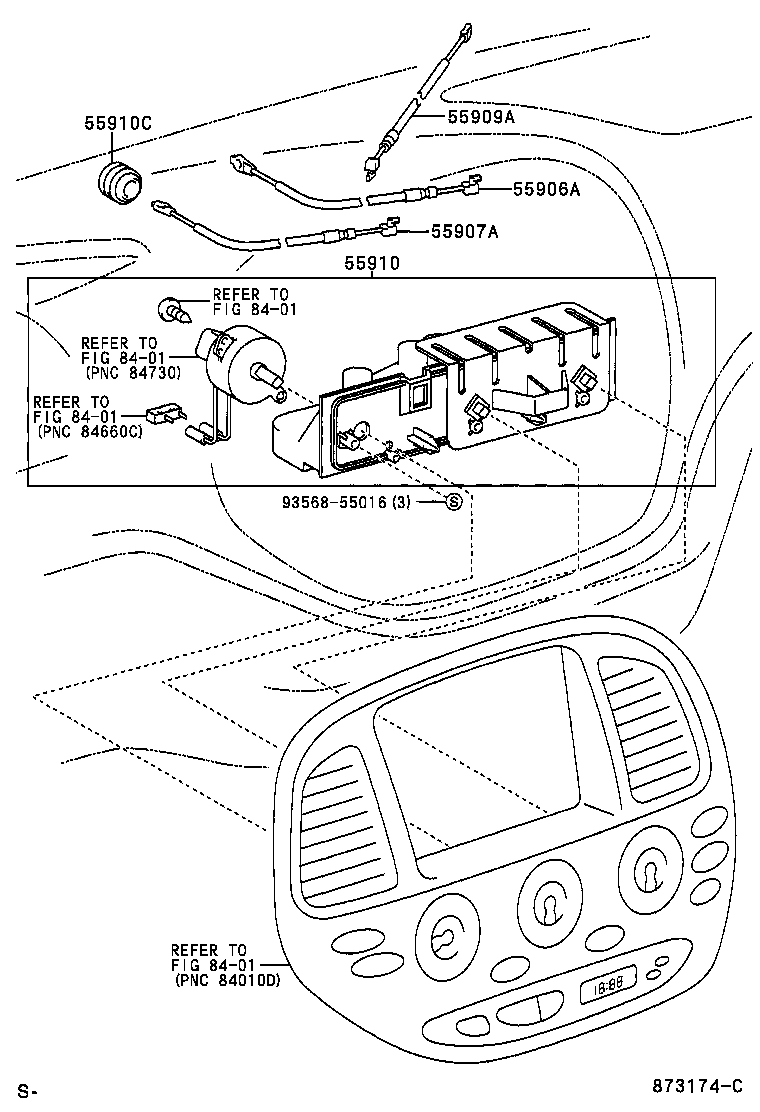

ILLUST NO. 1 OF 4(9902- )

Click highlighted areas on diagram

CONTROL

diagram 55906A 55907A 55909A 55910 55910C 8401 8401 8401 8401 9356855016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0C010

UCK30,40,VCK30,40

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-0C010

UCK30,40,VCK30,40

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0C010

UCK30,40,VCK30,40

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-0C010

UCK30,40,VCK30,40

 1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-13024

UCK30,40,VCK30,40

 1
90480-13033

UCK30,40,VCK30,40

 1
Common parts
93568-55016
Linked diagrams
8401

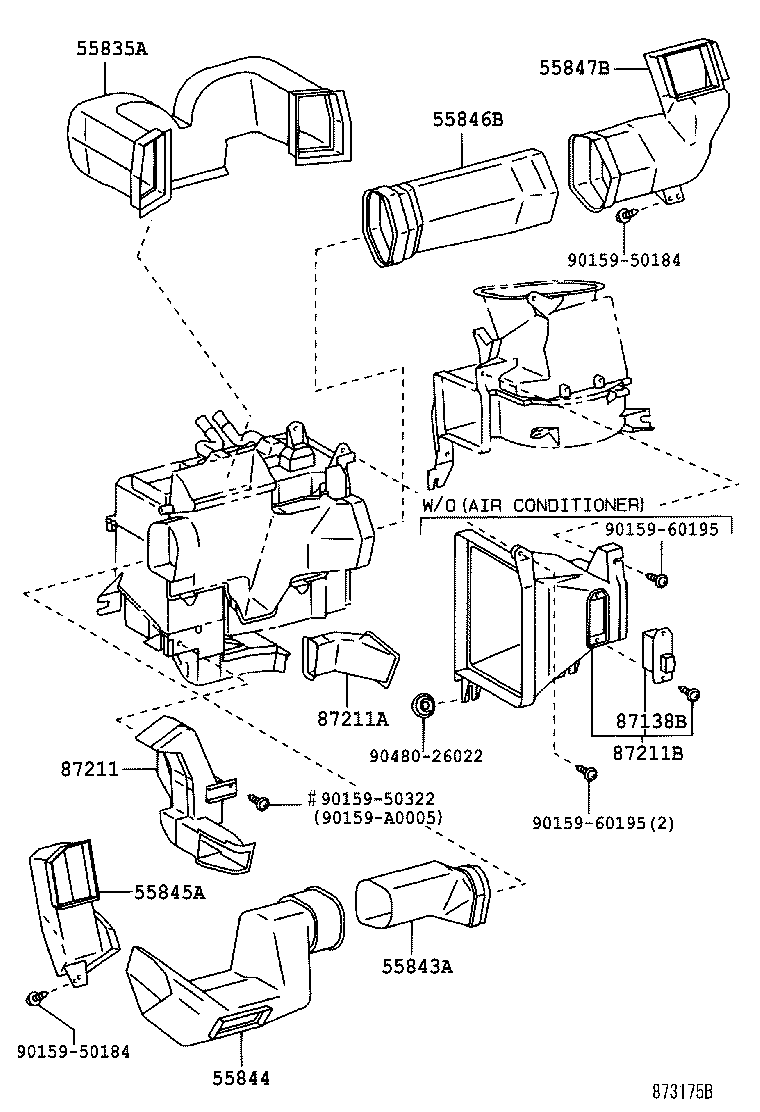

ILLUST NO. 2 OF 4(9902-0208)

Click highlighted areas on diagram

AIR DUCT

diagram 55835A 55843A 55844 55845A 55846B 55847B 87138B 87211 87211A 87211B 9015950184 9015950184 9015950322 9015960195 9015960195 90159A0005 9048026022
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-0C010

UCK30,40,VCK30,40

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0C010

UCK30,40,VCK30,40

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0C010

UCK30,40,VCK30,40

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0C010

UCK30,40,VCK30,40

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-0C010

UCK30,40,VCK30,40

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-0C010

UCK30,40,VCK30,40

 1
87138B - RESISTOR, HEATER BLOWER
87138-0C010

UCK30,40,VCK30,40..DLX,SR5

 1
87211 - DUCT, AIR, NO.1
87211-0C050

UCK30,40,VCK30,40

W/O(REAR AIR DUCT)

 1
87211A - DUCT, AIR, NO.2
87211-0C040

UCK30,40,VCK30,40

 1
87211B - DUCT, AIR, NO.3
87211-0C030

UCK30,40,VCK30,40..DLX,SR5

 1
Common parts
90159-50184
90159-50322
90159-60195
90159-A0005
90480-26022
