VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )

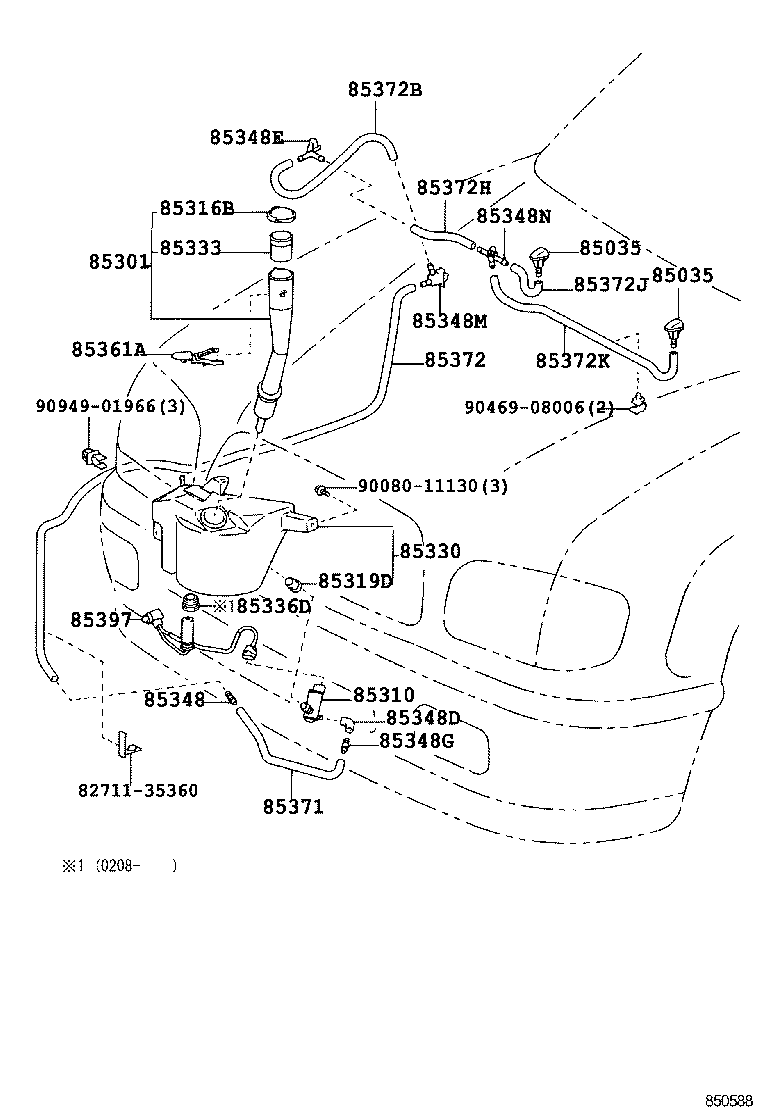

Click highlighted areas on diagram

diagram 8271135360 85035 85035 85301 85310 85316B 85319D 85330 85333 85336D 85348 85348D 85348E 85348G 85348M 85348N 85361A 85371 85372 85372B 85372H 85372J 85372K 85397 9008011130 9046908006 9094901966
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0C010

UCK30,40,VCK30,40

 2
85381-0C010

UCK30,40,VCK30,40..USA

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0C010

UCK30,40,VCK30,40

 2
85381-0C010

UCK30,40,VCK30,40..USA

 2
85301 - INLET SUB-ASSY, WASHER
85301-0C020

UCK30,40,VCK30,40..USA

COLD SPEC

 1
85301-0C010

UCK30,40,VCK30,40..USA

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0C010

UCK30,40,VCK30,40..USA

 1
85330-0C020

UCK30,40,VCK30,40..USA

COLD SPEC

 1
85316B - CAP, WASHER, INLET
85386-0C010

UCK30,40,VCK30,40

 1
85319D - PACKING, FRONT WASHER
90068-32002

UCK30,40,VCK30,40

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0C030

UCK30,40,VCK30,40..USA

W(LEVEL WARNING SWITCH)

 1
85315-0C010

UCK30,40,VCK30,40..USA

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

UCK30,40,VCK30,40

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

UCK30,40,VCK30,40

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

UCK30,40,VCK30,40

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85377-32220

UCK30,40,VCK30,40

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

UCK30,40,VCK30,40

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85377-34010

UCK30,40,VCK30,40

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85378-2B160

UCK30,40,VCK30,40

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-0C010

UCK30,40,VCK30,40

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33017

UCK30,40,VCK30,40

*H,L=310

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33011

UCK30,40,VCK30,40

L=1250

 1
90068-33017

UCK30,40,VCK30,40

L=1280

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33017

UCK30,40,VCK30,40

*H,L=340

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-33017

UCK30,40,VCK30,40

*H,L=250

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90068-33017

UCK30,40,VCK30,40

*H,L=130

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90068-33017

UCK30,40,VCK30,40

*H,L=730

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-0C030

UCK30,40,VCK30,40

 1
Common parts
82711-35360
90080-11130
90469-08006
90949-01966
