VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

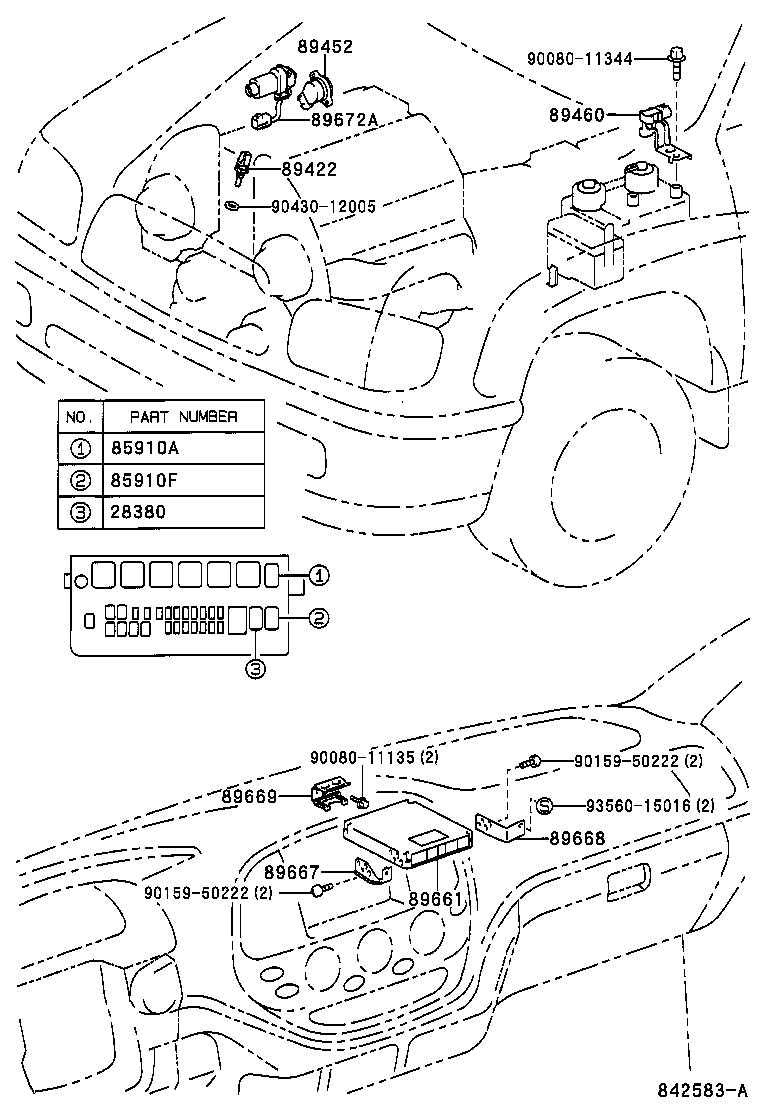

(9902-0208)UCK30,40

Click highlighted areas on diagram

diagram 28380 85910A 85910F 89422 89452 89460 89661 89667 89668 89669 89672A 9008011135 9008011344 9015950222 9015950222 9043012005 9356015016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90084-98031

UCK30,40,VCK30,40

PART NUMBER LABEL=90084-98031

 1
90987-02012

UCK30,40,VCK30,40

PART NUMBER LABEL=90987-02012

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

UCK30,40,VCK30,40

PART NUMBER LABEL=90987-02012

 1
90084-98031

UCK30,40,VCK30,40

PART NUMBER LABEL=90084-98031

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

UCK30,40

 1
89422-35010

VCK30,40

 1
89422-35010

UCK30,40,VCK30,40

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30140

UCK30,40

 1
89452-35020

VCK30,40

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-0C010

UCK30,40,VCK30,40

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0C040

VCK40..4HC

 1
89661-0C041

VCK40..4HC

 1
89661-0C042

VCK40..4HC

 1
89661-0C320

VCK40..4HC

 1
89661-0C080

VCK40..4HC..USA

CALIFORNIA SPEC

 1
89661-0C321

VCK40..4HC

 1
89661-0C370

VCK40..4HC

 1
89661-0C371

VCK40..4HC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0C010

UCK30,40,VCK30,40

 1
89667-0C010

UCK30,40;VCK40..5F;VCK30,40..CND

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0C020

UCK30,40

 1
89668-0C010

UCK30,40,VCK30,40

 1
89668-0C030

VCK30,40

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-34040

UCK30,40,VCK30,40

 1
89669-34041

UCK30,40,VCK30,40

 1
89669-34030

UCK30,40,VCK30,40

 1
89672A - MOTOR, THROTTLE CONTROL
89672-47010

UCK30,40

 1
Common parts
90080-11135
90080-11344
90159-50222
90430-12005
93560-15016

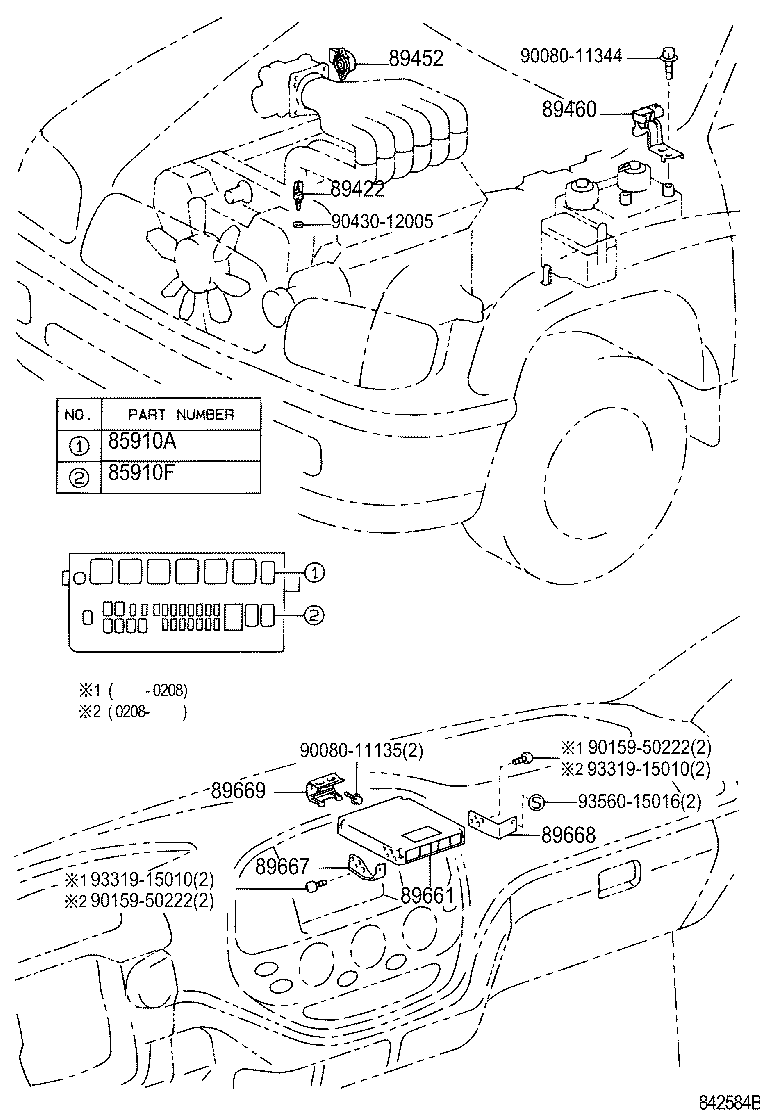

(9902- )VCK30,40

Click highlighted areas on diagram

diagram 85910A 85910F 89422 89452 89460 89661 89667 89668 89669 9008011135 9008011344 9015950222 9015950222 9043012005 9331915010 9331915010 9356015016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90084-98031

UCK30,40,VCK30,40

PART NUMBER LABEL=90084-98031

 1
90987-02012

UCK30,40,VCK30,40

PART NUMBER LABEL=90987-02012

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

UCK30,40,VCK30,40

PART NUMBER LABEL=90987-02012

 1
90084-98031

UCK30,40,VCK30,40

PART NUMBER LABEL=90084-98031

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

UCK30,40

 1
89422-35010

VCK30,40

 1
89422-35010

UCK30,40,VCK30,40

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30140

UCK30,40

 1
89452-35020

VCK30,40

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-0C010

UCK30,40,VCK30,40

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0C040

VCK40..4HC

 1
89661-0C041

VCK40..4HC

 1
89661-0C042

VCK40..4HC

 1
89661-0C320

VCK40..4HC

 1
89661-0C080

VCK40..4HC..USA

CALIFORNIA SPEC

 1
89661-0C321

VCK40..4HC

 1
89661-0C370

VCK40..4HC

 1
89661-0C371

VCK40..4HC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0C010

UCK30,40,VCK30,40

 1
89667-0C010

UCK30,40;VCK40..5F;VCK30,40..CND

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0C020

UCK30,40

 1
89668-0C010

UCK30,40,VCK30,40

 1
89668-0C030

VCK30,40

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-34040

UCK30,40,VCK30,40

 1
89669-34041

UCK30,40,VCK30,40

 1
89669-34030

UCK30,40,VCK30,40

 1
Common parts
90080-11135
90080-11344
90159-50222
90430-12005
93319-15010
93560-15016
