VCK40L-TRSSKA (1999)
Toyota Tundra

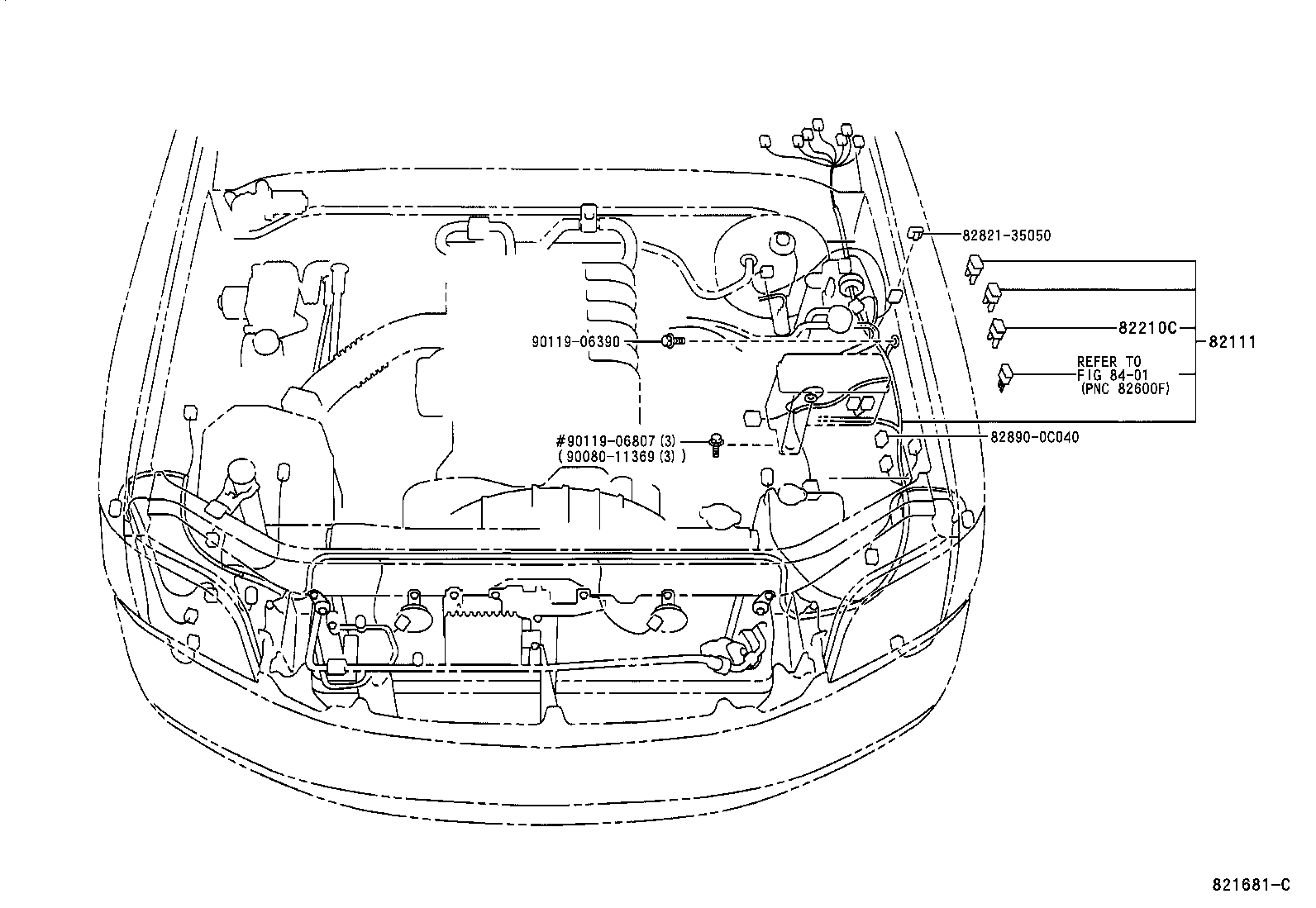

ILLUST NO. 1 OF 8(9902-0208)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0C050 |
VCK30,40 PART NUMBER LABEL=82111-0C050 |
1 | ||
| 82111-0C070 |
UCK30,40 PART NUMBER LABEL=82111-0C070 |
1 | ||
| 82111-0C080 |
UCK30,40 PART NUMBER LABEL=82111-0C080 |
1 | ||
| 82111-0C030 |
UCK30,40..USA PART NUMBER LABEL=82111-0C030 |
1 | ||
| 82111-0C060 |
VCK30,40 PART NUMBER LABEL=82111-0C060 |
1 | ||
| 82111-0C051 |
VCK30,40 PART NUMBER LABEL=82111-0C051 |
1 | ||
| 82111-0C031 |
UCK30,40..USA PART NUMBER LABEL=82111-0C031 |
1 | ||
| 82111-0C011 |
VCK30,40..USA PART NUMBER LABEL=82111-0C011 |
1 | ||
| 82111-0C071 |
UCK30,40 PART NUMBER LABEL=82111-0C071 |
1 | ||
| 82111-0C052 |
VCK30,40 PART NUMBER LABEL=82111-0C052 |
1 | ||
| 82111-0C010 |
VCK30,40..USA PART NUMBER LABEL=82111-0C010 |
1 | ||
| 82111-0C061 |
VCK30,40 PART NUMBER LABEL=82111-0C061 |
1 | ||
| 82111-0C081 |
UCK30,40 PART NUMBER LABEL=82111-0C081 |
1 | ||
| 82111-0C072 |
UCK30,40 PART NUMBER LABEL=82111-0C072 |
1 | ||
| 82111-0C032 |
UCK30,40..USA PART NUMBER LABEL=82111-0C032 |
1 | ||
| 82111-0C082 |
UCK30,40 PART NUMBER LABEL=82111-0C082 |
1 | ||
| 82111-0C012 |
VCK30,40..USA PART NUMBER LABEL=82111-0C012 |
1 | ||
| 82111-0C062 |
VCK30,40 PART NUMBER LABEL=82111-0C062 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
VCK30..5F..SR5;VCK30..4HC..USA;UCK30,40,VCK40..LIMD,SR5 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
UCK30,40,VCK30,40..USA 40A,TERM.:FEMALE,GRN,W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
4 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
UCK30,40;VCK30,40..USA 40A,TERM.:FEMALE,GRN |
2 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
VCK30,40..USA 40A,TERM.:FEMALE,GRN,W(DAY TIME RUNNING LIGHT SYSTEM) |
3 | ||
| 90982-08281 |
UCK30,40 40A,TERM.:FEMALE,GRN,W(ABS) |
3 | ||
| Common parts | ||||
| 82821-35050 | ||||
| 82890-0C040 | ||||
| 90080-11369 | ||||
| 90119-06390 | ||||
| 90119-06807 | ||||
| Linked diagrams | ||||
| 8401 | ||||

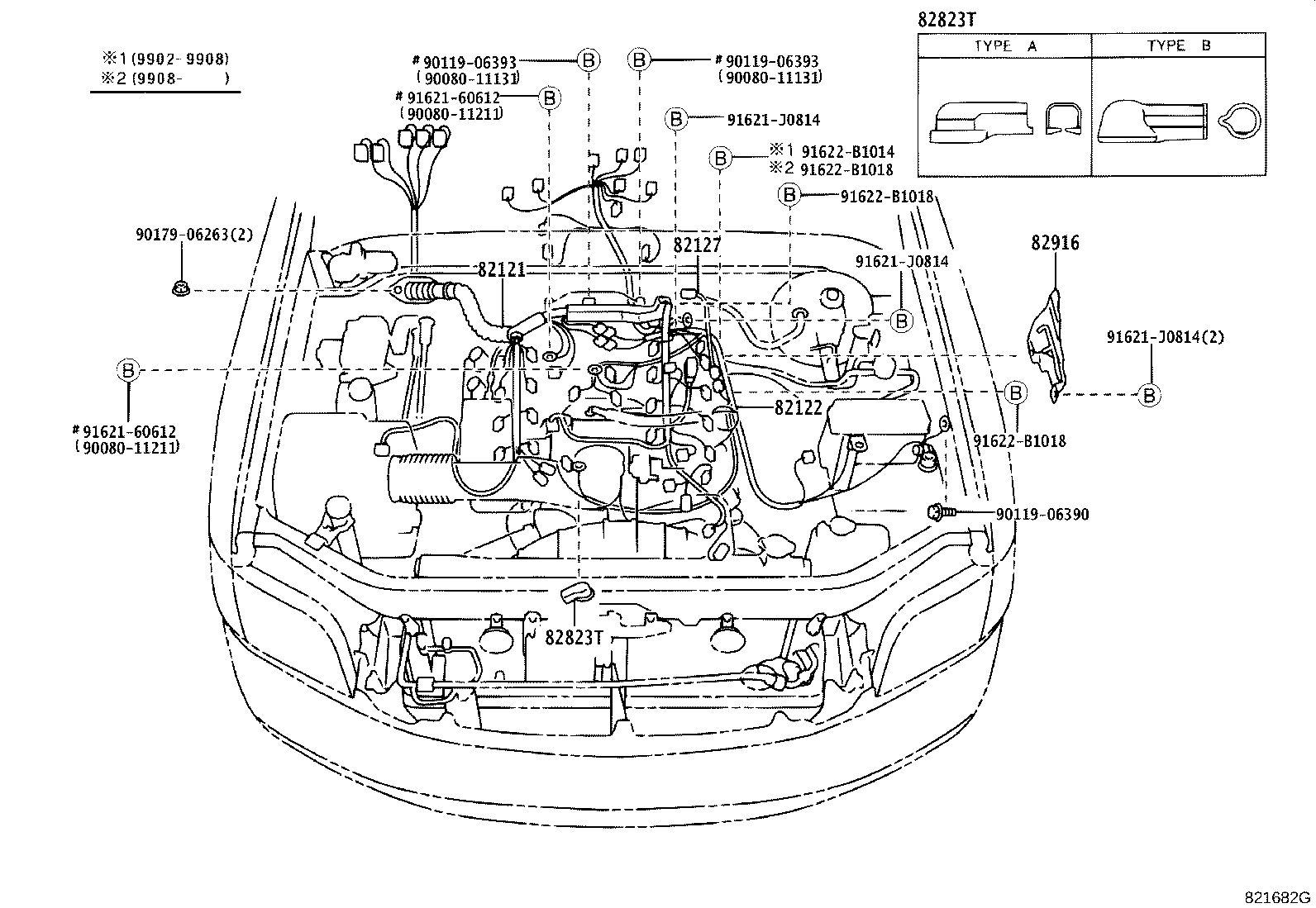

ILLUST NO. 2 OF 8(9902-0208)UCK30,40
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-34310 |
VCK40..4HC..USA CALIFORNIA SPEC |
1 | ||
| 82121-34300 |
VCK40..4HC |
1 | ||
| 82121-34311 |
VCK40..4HC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0C010 |
VCK30,40 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-0C010 |
UCK40,VCK40 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
UCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82823-22050 |
VCK30,40 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
UCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82823-22050 |
VCK30,40 |
1 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-34010 |
UCK30,40 (J) |
1 | ||
| Common parts | ||||
| 90080-11131 | ||||
| 90080-11211 | ||||
| 90119-06390 | ||||
| 90119-06393 | ||||
| 90179-06263 | ||||
| 91621-60612 | ||||
| 91621-J0814 | ||||
| 91622-B1014 | ||||
| 91622-B1018 | ||||

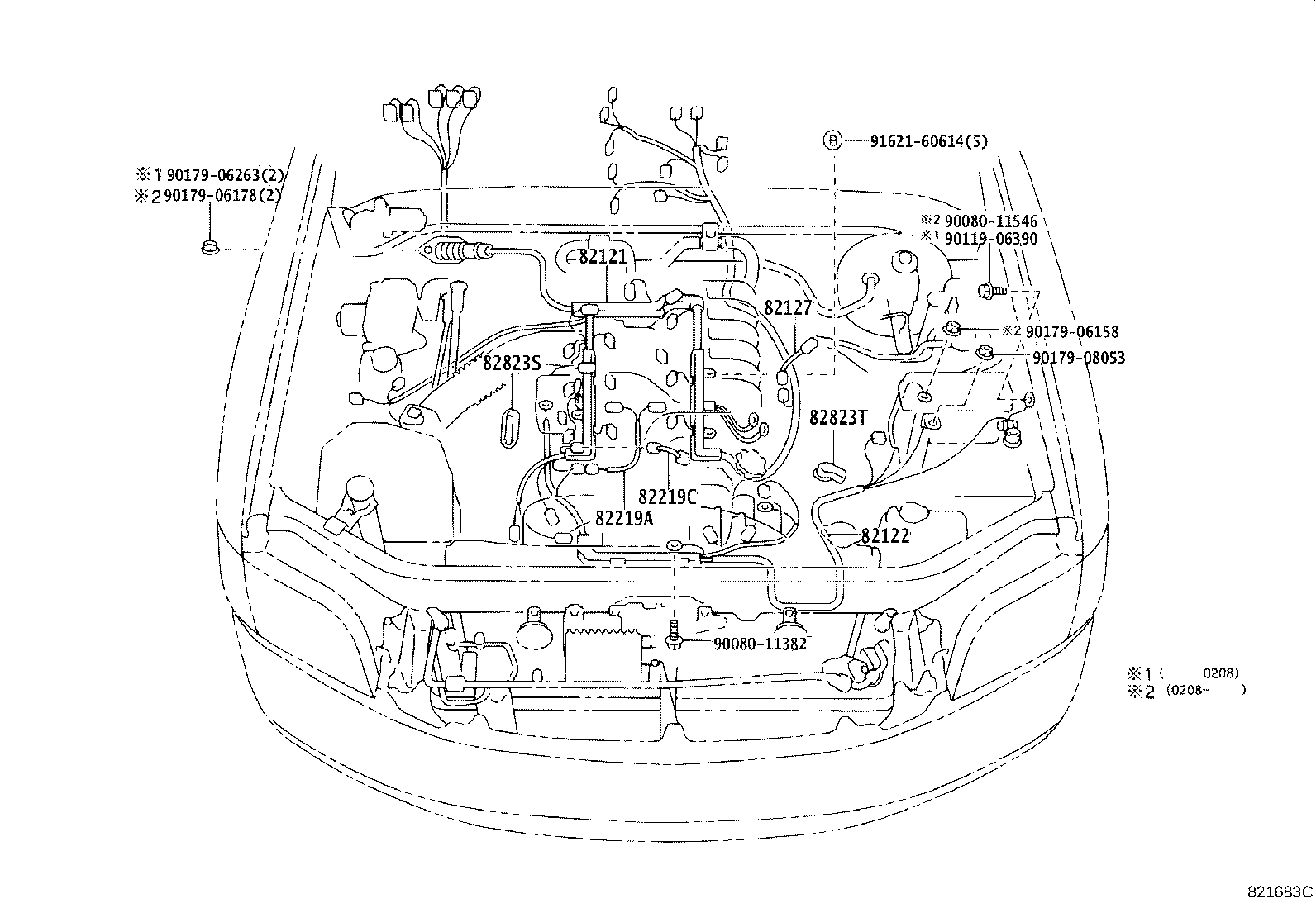

ILLUST NO. 2 OF 8(9902- )VCK30,40
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-34310 |
VCK40..4HC..USA CALIFORNIA SPEC |
1 | ||
| 82121-34300 |
VCK40..4HC |
1 | ||
| 82121-34311 |
VCK40..4HC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0C010 |
VCK30,40 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-0C010 |
UCK40,VCK40 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-34010 |
VCK30,40 |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-34020 |
VCK30,40 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35050 |
VCK30,40 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
UCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82823-22050 |
VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11382 | ||||
| 90080-11546 | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 90179-06178 | ||||
| 90179-06263 | ||||
| 90179-08053 | ||||
| 91621-60614 | ||||

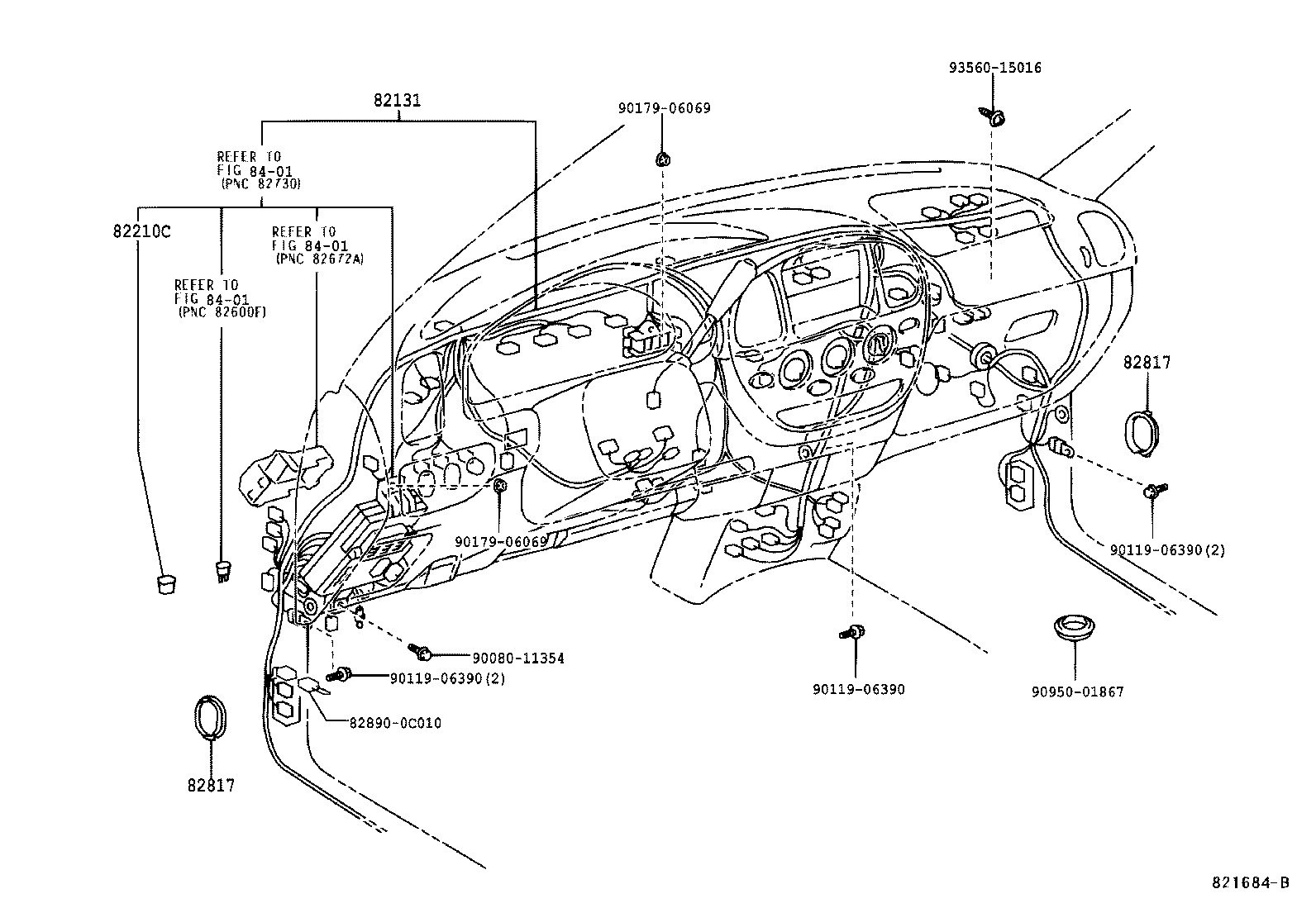

ILLUST NO. 3 OF 8(9902-0208)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-0C050 |
VCK30,40..4HC..(DLX,SR5)..USA PART NUMBER LABEL=82131-0C050 |
1 | ||
| 82131-0C070 |
VCK30,40..4HC..(LIMD,SR5)..USA PART NUMBER LABEL=82131-0C070 |
1 | ||
| 82131-0C230 |
VCK30,40..4HC..(LIMD,SR5)..USA PART NUMBER LABEL=82131-0C230 |
1 | ||
| 82131-0C140 |
VCK30,40..4HC..(DLX,SR5) PART NUMBER LABEL=82131-0C140 |
1 | ||
| 82131-0C130 |
VCK30,40..4HC..(DLX,SR5) PART NUMBER LABEL=82131-0C130 |
1 | ||
| 82131-0C210 |
VCK30,40..4HC..(DLX,SR5)..USA PART NUMBER LABEL=82131-0C210 |
1 | ||
| 82131-0C290 |
VCK30,40..4HC..(DLX,SR5)..USA PART NUMBER LABEL=82131-0C290 |
1 | ||
| 82131-0C160 |
VCK30,40..4HC..(LIMD,SR5) PART NUMBER LABEL=82131-0C160 |
1 | ||
| 82131-0C320 |
VCK30,40..4HC..(LIMD,SR5)..USA PART NUMBER LABEL=82131-0C320 |
1 | ||
| 82131-0C300 |
VCK30,40..4HC..(DLX,SR5)..USA PART NUMBER LABEL=82131-0C300 |
1 | ||
| 82131-0C330 |
UCK30,40..SR5..USA PART NUMBER LABEL=82131-0C330 |
1 | ||
| 82131-0C150 |
VCK30,40..4HC..(LIMD,SR5) PART NUMBER LABEL=82131-0C150 |
1 | ||
| 82131-0C310 |
VCK30,40..4HC..(LIMD,SR5)..USA PART NUMBER LABEL=82131-0C310 |
1 | ||
| 82131-0C370 |
UCK30,40..SR5 PART NUMBER LABEL=82131-0C370 |
1 | ||
| 82131-0C400 |
UCK30,40 PART NUMBER LABEL=82131-0C400 |
1 | ||
| 82131-0C380 |
UCK30,40..SR5 PART NUMBER LABEL=82131-0C380 |
1 | ||
| 82131-0C231 |
VCK30,40..4HC..(LIMD,SR5)..USA PART NUMBER LABEL=82131-0C231 |
1 | ||
| 82131-0C291 |
VCK30,40..4HC..(DLX,SR5) PART NUMBER LABEL=82131-0C291 |
1 | ||
| 82131-0C390 |
UCK30,40 PART NUMBER LABEL=82131-0C390 |
1 | ||
| 82131-0C211 |
VCK30,40..4HC..(DLX,SR5)..USA PART NUMBER LABEL=82131-0C211 |
1 | ||
| 82131-0C311 |
VCK30,40..4HC..(LIMD,SR5) PART NUMBER LABEL=82131-0C311 |
1 | ||
| 82131-0C351 |
UCK30,40..USA PART NUMBER LABEL=82131-0C351 |
1 | ||
| 82131-0C350 |
UCK30,40..USA PART NUMBER LABEL=82131-0C350 |
1 | ||
| 82131-0C331 |
UCK30,40..SR5..USA PART NUMBER LABEL=82131-0C331 |
1 | ||
| 82131-0C371 |
UCK30,40..DLX,SR5 PART NUMBER LABEL=82131-0C371 |
1 | ||
| 82131-0C381 |
UCK30,40..DLX,SR5 PART NUMBER LABEL=82131-0C381 |
1 | ||
| 82131-0C321 |
VCK30,40..4HC..(LIMD,SR5) PART NUMBER LABEL=82131-0C321 |
1 | ||
| 82131-0C401 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C401 |
1 | ||
| 82131-0C212 |
VCK30,40..4HC..(DLX,SR5)..USA PART NUMBER LABEL=82131-0C212 |
1 | ||
| 82131-0C391 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C391 |
1 | ||
| 82131-0C322 |
VCK30,40..4HC..(LIMD,SR5) PART NUMBER LABEL=82131-0C322 |
1 | ||
| 82131-0C301 |
VCK30,40..4HC..(DLX,SR5) PART NUMBER LABEL=82131-0C301 |
1 | ||
| 82131-0C292 |
VCK30,40..4HC..(DLX,SR5) PART NUMBER LABEL=82131-0C292 |
1 | ||
| 82131-0C352 |
UCK30,40..USA PART NUMBER LABEL=82131-0C352 |
1 | ||
| 82131-0C372 |
UCK30,40..DLX,SR5 PART NUMBER LABEL=82131-0C372 |
1 | ||
| 82131-0C392 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C392 |
1 | ||
| 82131-0C332 |
UCK30,40..SR5..USA PART NUMBER LABEL=82131-0C332 |
1 | ||
| 82131-0C382 |
UCK30,40..DLX,SR5 PART NUMBER LABEL=82131-0C382 |
1 | ||
| 82131-0C312 |
VCK30,40..4HC..(LIMD,SR5) PART NUMBER LABEL=82131-0C312 |
1 | ||
| 82131-0C302 |
VCK30,40..4HC..(DLX,SR5) PART NUMBER LABEL=82131-0C302 |
1 | ||
| 82131-0C232 |
VCK30,40..4HC..(LIMD,SR5)..USA PART NUMBER LABEL=82131-0C232 |
1 | ||
| 82131-0C402 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C402 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
VCK30..5F..SR5;VCK30..4HC..USA;UCK30,40,VCK40..LIMD,SR5 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
UCK30,40,VCK30,40..USA 40A,TERM.:FEMALE,GRN,W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
4 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
UCK30,40;VCK30,40..USA 40A,TERM.:FEMALE,GRN |
2 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
VCK30,40..USA 40A,TERM.:FEMALE,GRN,W(DAY TIME RUNNING LIGHT SYSTEM) |
3 | ||
| 90982-08281 |
UCK30,40 40A,TERM.:FEMALE,GRN,W(ABS) |
3 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
UCK30,40,VCK30,40 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
UCK30,40,VCK30,40 |
2 | ||
| Common parts | ||||
| 82890-0C010 | ||||
| 90080-11354 | ||||
| 90119-06390 | ||||
| 90179-06069 | ||||
| 90950-01867 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(9902-0208)RCB
DOOR,ROOF,FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0C011 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82151-0C020 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82151-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82151-0C021 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82151-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82152-0C011 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82151-0C011 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0C020 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 82164-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 82164-0C021 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 82164-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82164B - WIRE, FRAME, NO.2 | ||||
| 82164-0C030 |
VCK30,40 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0C020 |
UCK40,VCK40..RCB..USA W(SLIDE SUN VISOR) |
1 | ||
| 82171-0C010 |
UCK40,VCK30,40..RCB |
1 | ||
| 82346 - WIRE, SPEAKER TWEETER | ||||
| 82346-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
2 | ||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82346 - WIRE, SPEAKER TWEETER | ||||
| 82346-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
2 | ||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| Common parts | ||||
| 82890-0C020 | ||||
| 82890-0C030 | ||||
| 90080-11332 | ||||
| 90119-08827 | ||||
ILLUST NO. 5 OF 8(9902-0408)UCK30,40,VCK30,40
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C020 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C020 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||

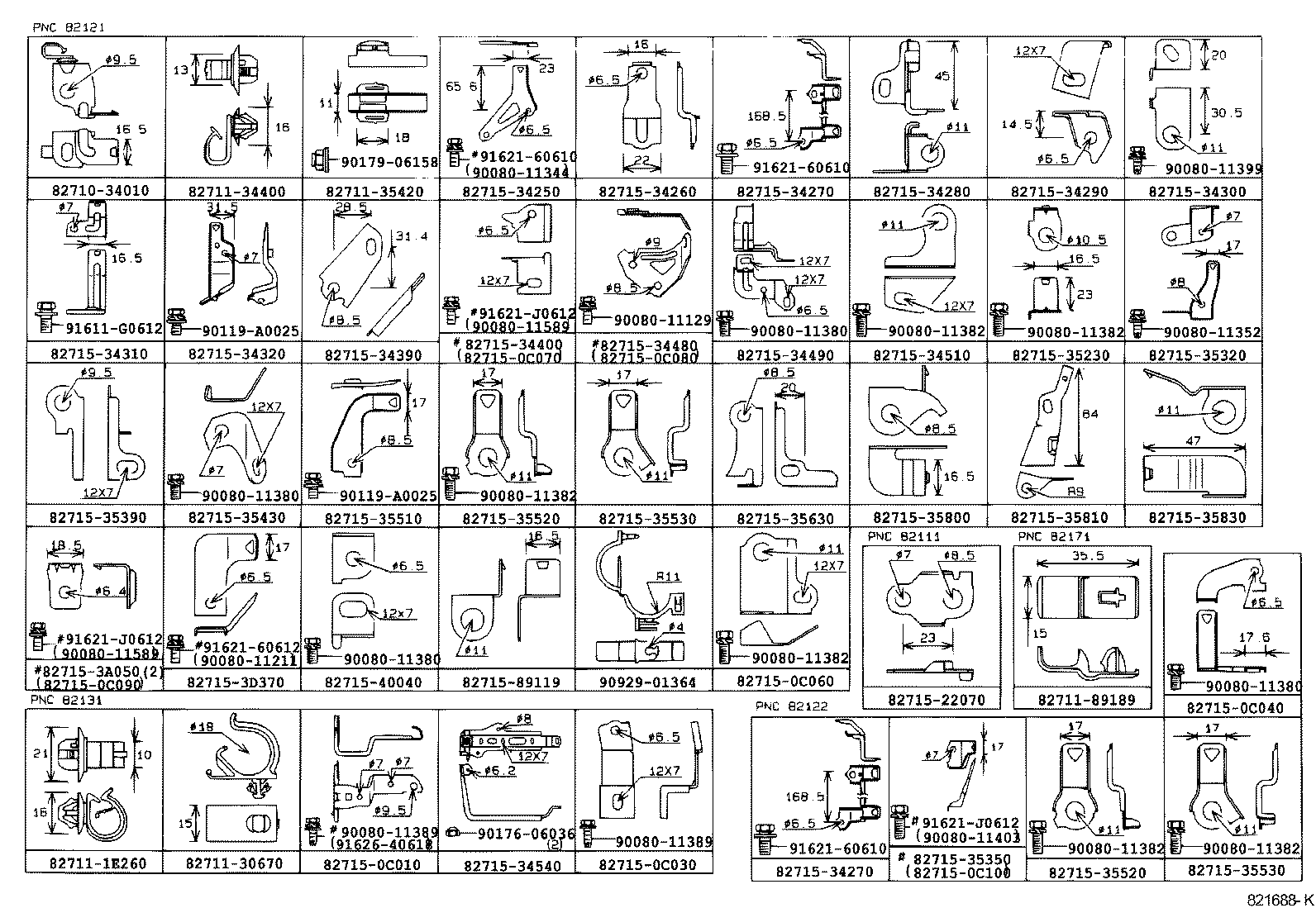

ILLUST NO. 6 OF 8(9902- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34010 | ||||
| 82711-1E260 | ||||
| 82711-30670 | ||||
| 82711-34400 | ||||
| 82711-35420 | ||||
| 82711-89189 | ||||
| 82715-0C010 | ||||
| 82715-0C030 | ||||
| 82715-0C040 | ||||
| 82715-0C060 | ||||
| 82715-0C070 | ||||
| 82715-0C080 | ||||
| 82715-0C090 | ||||
| 82715-0C100 | ||||
| 82715-22070 | ||||
| 82715-34250 | ||||
| 82715-34260 | ||||
| 82715-34270 | ||||
| 82715-34280 | ||||
| 82715-34290 | ||||
| 82715-34300 | ||||
| 82715-34310 | ||||
| 82715-34320 | ||||
| 82715-34390 | ||||
| 82715-34400 | ||||
| 82715-34480 | ||||
| 82715-34490 | ||||
| 82715-34510 | ||||
| 82715-34540 | ||||
| 82715-35230 | ||||
| 82715-35320 | ||||
| 82715-35350 | ||||
| 82715-35390 | ||||
| 82715-35430 | ||||
| 82715-35510 | ||||
| 82715-35520 | ||||
| 82715-35530 | ||||
| 82715-35630 | ||||
| 82715-35800 | ||||
| 82715-35810 | ||||
| 82715-35830 | ||||
| 82715-3A050 | ||||
| 82715-3D370 | ||||
| 82715-40040 | ||||
| 82715-89119 | ||||
| 90080-11129 | ||||
| 90080-11211 | ||||
| 90080-11344 | ||||
| 90080-11352 | ||||
| 90080-11380 | ||||
| 90080-11382 | ||||
| 90080-11389 | ||||
| 90080-11399 | ||||
| 90080-11403 | ||||
| 90080-11589 | ||||
| 90119-A0025 | ||||
| 90176-06036 | ||||
| 90179-06158 | ||||
| 90929-01364 | ||||
| 91611-G0612 | ||||
| 91621-60610 | ||||
| 91621-60612 | ||||
| 91621-J0612 | ||||
| 91626-40618 | ||||
ILLUST NO. 7 OF 8(9902-0408)
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90080-82040 |
VCK30,40 |
1 | ||
| 90080-82041 |
UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-10090 | ||||
| 90080-11187 | ||||
| 90119-A0038 | ||||

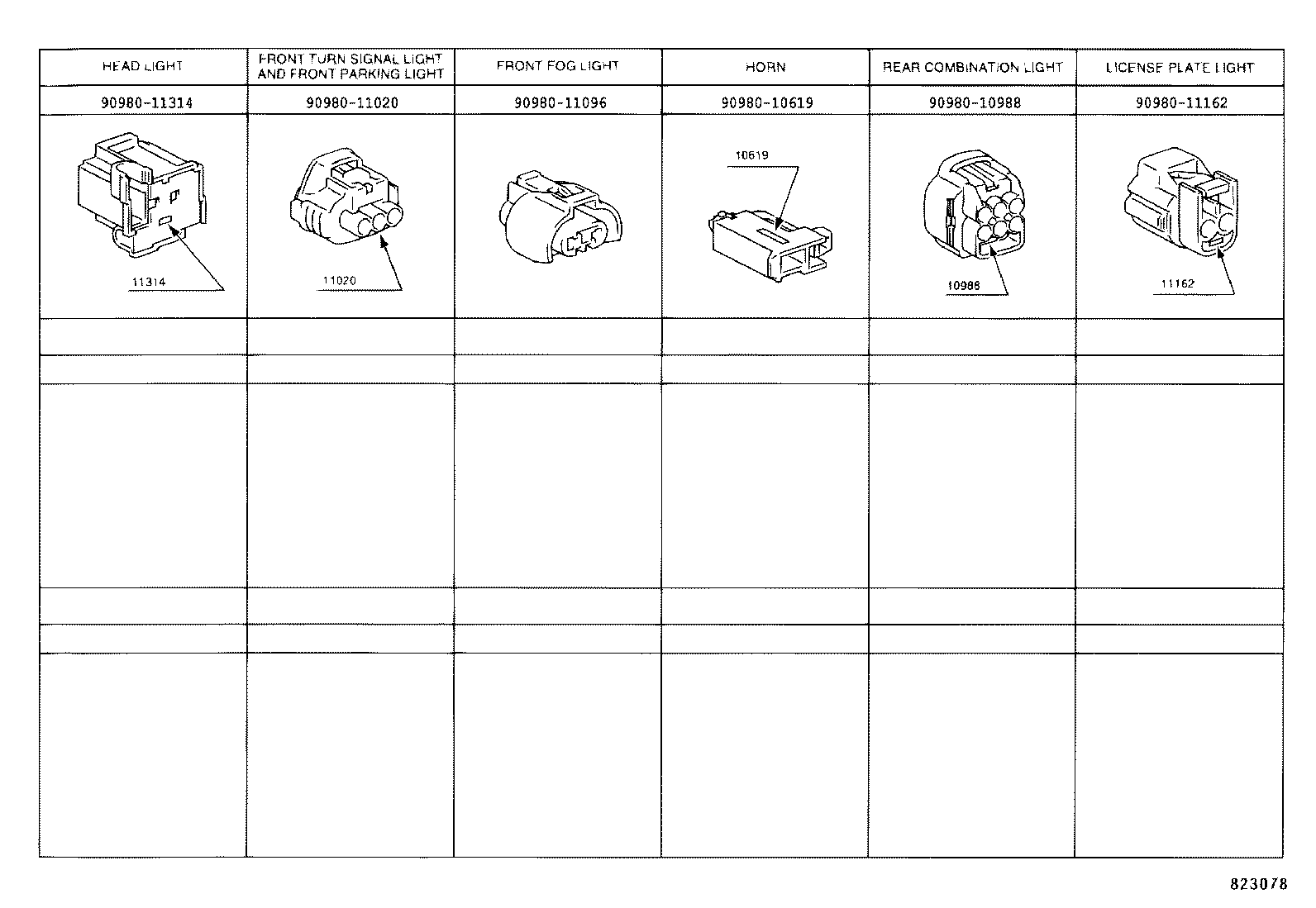

ILLUST NO. 8 OF 8(9902- )UCK30,40,VCK30,40..4HC,5F
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10988 | ||||
| 90980-11020 | ||||
| 90980-11096 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
