Toyota Tundra VCK40 REAR LICENSE PLATE LAMP

VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002

Engine 5VZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

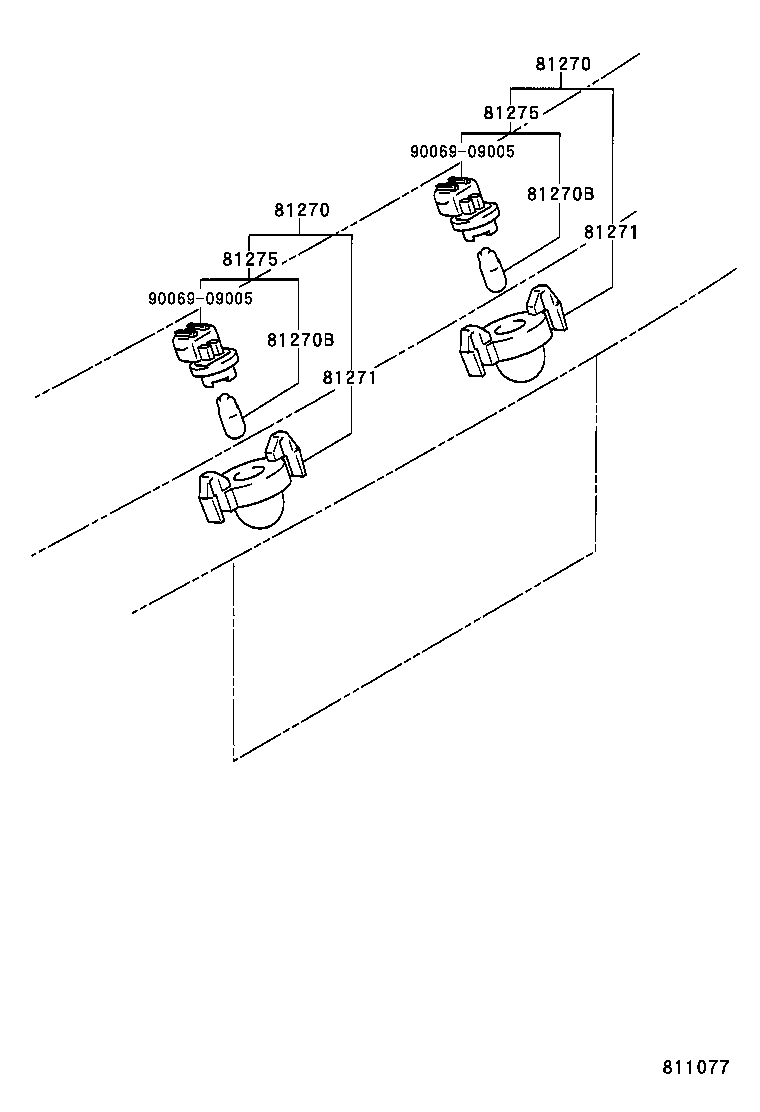

Click highlighted areas on diagram

W/O(REAR BUMPER)

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
81690-0C010	UCK30,40,VCK30,40 LH	02/1999 - 08/2002	1
81270-0C010	UCK30,40,VCK30,40 RH	02/1999 - 08/2002	1
81270 - LAMP ASSY, LICENSE PLATE
81270-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
81690-0C010	UCK30,40,VCK30,40 LH	02/1999 - 08/2002	1
81270-0C010	UCK30,40,VCK30,40 RH	02/1999 - 08/2002	1
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81059	UCK30,40,VCK30,40 12V 5.0W	02/1999 - 08/2002	2
90081-81006	UCK40,VCK30,40..RCB 12V 3.8W	02/1999 - 04/2001	2
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81059	UCK30,40,VCK30,40 12V 5.0W	02/1999 - 08/2002	2
90081-81006	UCK40,VCK30,40..RCB 12V 3.8W	02/1999 - 04/2001	2
81271 - LENS, LICENSE PLATE LAMP
81271-04010	UCK40,VCK30,40..RCB	02/1999 - 04/2001	2
81271 - LENS, LICENSE PLATE LAMP
81271-04010	UCK40,VCK30,40..RCB	02/1999 - 04/2001	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
90075-60005	UCK30,40,VCK30,40	02/1999 - 08/2002	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
90075-60005	UCK30,40,VCK30,40	02/1999 - 08/2002	2
Common parts
90069-09005

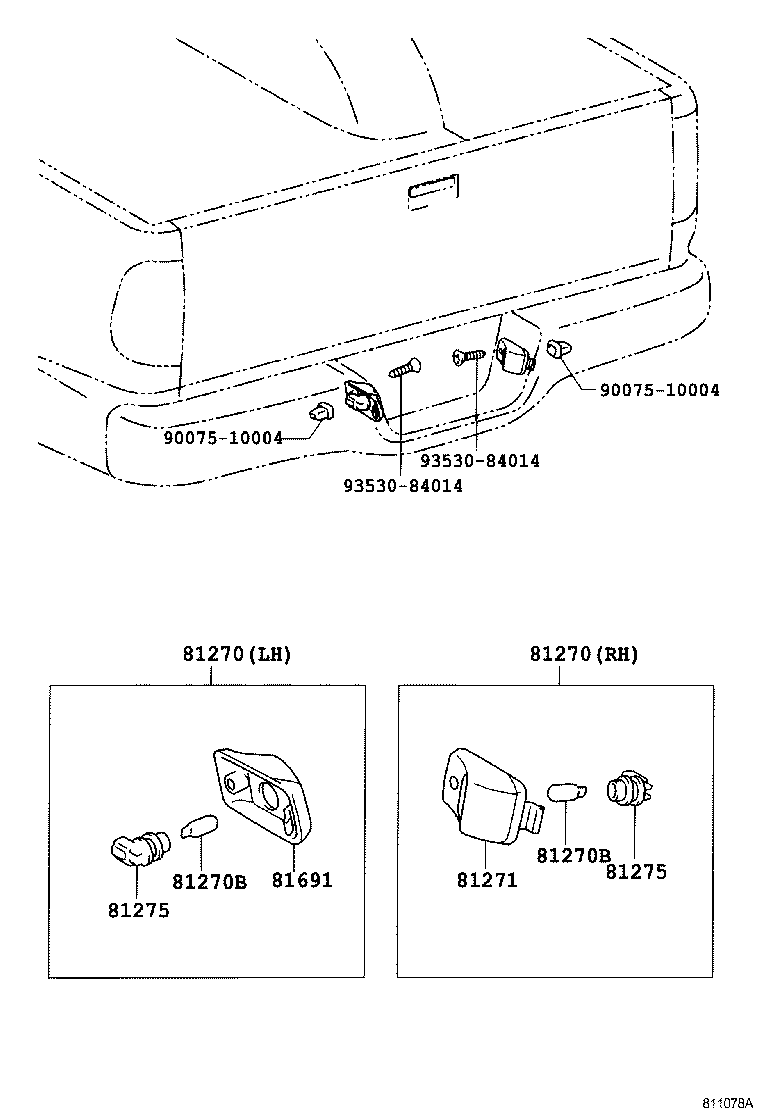

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
81690-0C010	UCK30,40,VCK30,40 LH	02/1999 - 08/2002	1
81270-0C010	UCK30,40,VCK30,40 RH	02/1999 - 08/2002	1
81270 - LAMP ASSY, LICENSE PLATE
81270-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
81690-0C010	UCK30,40,VCK30,40 LH	02/1999 - 08/2002	1
81270-0C010	UCK30,40,VCK30,40 RH	02/1999 - 08/2002	1
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81059	UCK30,40,VCK30,40 12V 5.0W	02/1999 - 08/2002	2
90081-81006	UCK40,VCK30,40..RCB 12V 3.8W	02/1999 - 04/2001	2
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81059	UCK30,40,VCK30,40 12V 5.0W	02/1999 - 08/2002	2
90081-81006	UCK40,VCK30,40..RCB 12V 3.8W	02/1999 - 04/2001	2
81271 - LENS, LICENSE PLATE LAMP
81271-04010	UCK40,VCK30,40..RCB	02/1999 - 04/2001	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
90075-60005	UCK30,40,VCK30,40	02/1999 - 08/2002	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-04010	UCK40,VCK30,40..RCB W/O(REAR BUMPER)	02/1999 - 04/2001	2
90075-60005	UCK30,40,VCK30,40	02/1999 - 08/2002	2
Common parts
90075-10004
93530-84014
