VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )

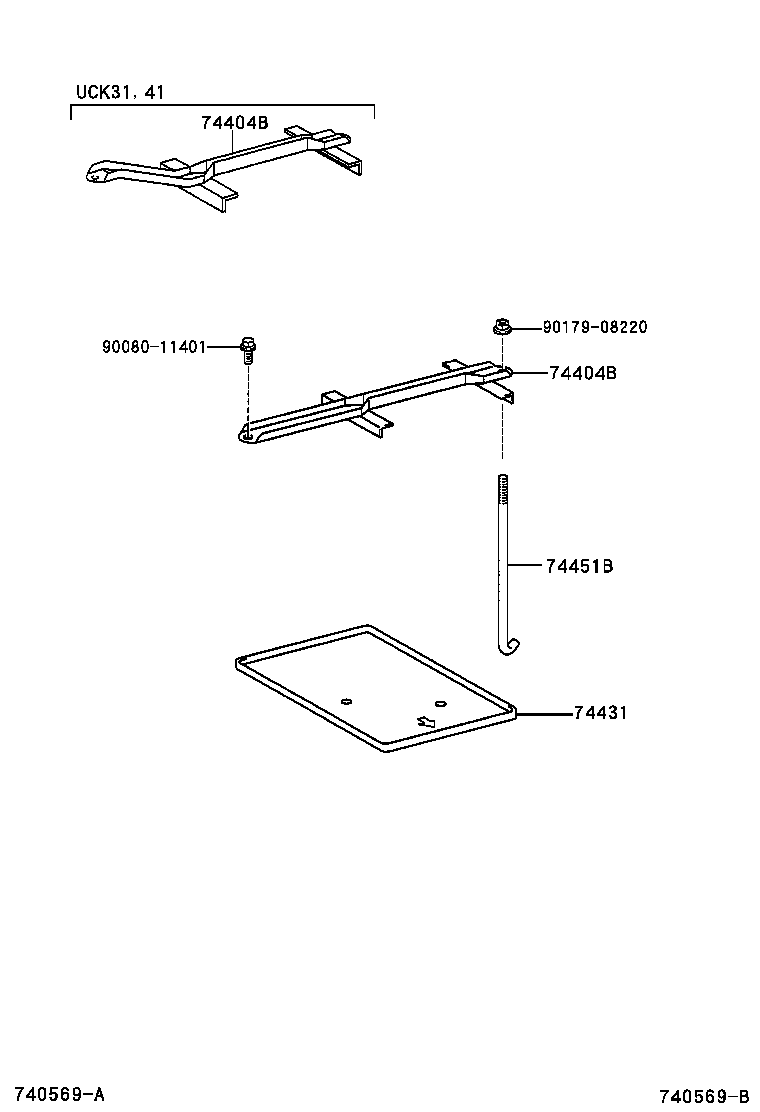

Click highlighted areas on diagram

diagram 74404B 74404B 74431 74451B 9008011401 9017908220
Part # Description Qty Price
74404B - CLAMP SUB-ASSY, BATTERY
74404-0C010

UCK30,40,VCK30,40

 1
74404B - CLAMP SUB-ASSY, BATTERY
74404-0C010

UCK30,40,VCK30,40

 1
74431 - TRAY, BATTERY
74431-AD020

VCK30,40..USA

BATTERY=55D23L

 1
74431-03010

VCK30,40;UCK30,40..USA

BATTERY=80D26L

 1
74431-0C010

UCK30,40

BATTERY=105D31L

 1
74451B - BOLT, BATTERY CLAMP
74451-0C010

UCK30,40,VCK30,40

 1
Common parts
90080-11401
90179-08220
