VCK40L-TRSSKA (1999)
Toyota Tundra

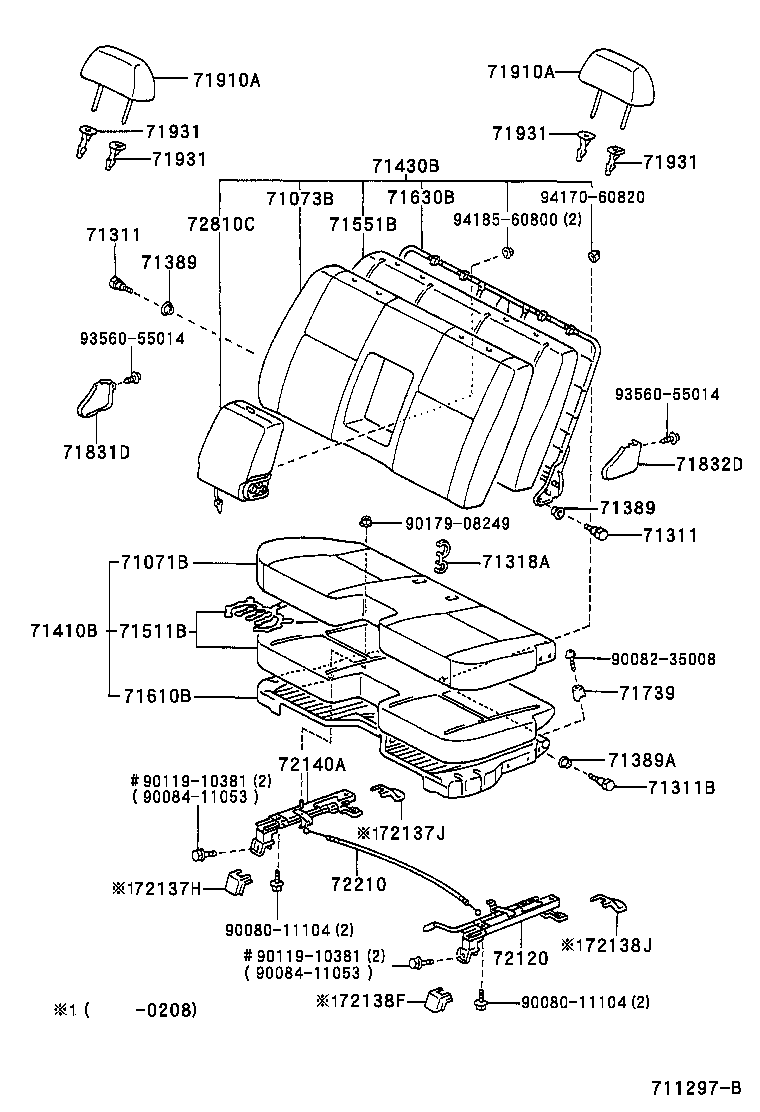

ILLUST NO. 1 OF 2(9902-0408)UCK30,40,VCK30,40..4HC..LIMD,SR5
FRONT 6:4 SPRIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55450D - BOX ASSY, COIN | ||||
| 55450-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 58919C - PLATE, CONSOLE BOX | ||||
| 58919-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C040B3 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C040E1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-0C060E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-0C040B4 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C060B4 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C041E1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-0C060B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C041B3 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C041B4 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C010E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71072-0C010B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C060B4 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C060E1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71072-0C010B4 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C060B3 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71073-0C030B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C030B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71073-0C030E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71073-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71074-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71074-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71074-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71410-0C060E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71410-0C060B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71410-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-0C060B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71420-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71420-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71420-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71420-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71420-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71430-0C030B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71430-0C051B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C051E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71430-0C030B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C030E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430-0C051B2 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440-0C011B2 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440-0C011E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71440-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71440-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71440-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71440-0C011B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71440-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0C030 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71051-0C050 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE A-*104 |
1 | ||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B OR TYPE C-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 |
1 | ||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C020 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71551-0C040 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B OR TYPE C-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71552-0C030 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71552-0C060 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT & LEATHER SEAT) & SEAT = TYPE C-*104 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0C040 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71610-0C030 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-0C040 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71610-0C050 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71630-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71640-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.OAK,TRIM4# |
2 | ||
| 71910-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B3 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
2 | ||
| 71910-0C020E1 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
2 | ||
| 71910-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.OAK,TRIM4# |
2 | ||
| 71910-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B3 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
2 | ||
| 71910-0C020E1 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
2 | ||
| 71910-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 72089 - BRACKET SUB-ASSY, REAR SEAT ARMREST, RH | ||||
| 72089-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.OAK,TRIM4# |
1 | ||
| 72089-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 72089-0C010B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MOON MIST,TRIM10 |
1 | ||
| 72151 - RAIL, SEAT TRACK, LOWER RH | ||||
| 72151-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 72151-34010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 72802 - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 72809B - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-AC010C0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) BLACK,TRIM10,11,4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-0C060B3 |
UCK30,40,VCK30,40..4HC..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 72810-0C060E1 |
UCK30,40,VCK30,40..4HC..SR5 SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 72810-0C060B2 |
UCK30,40,VCK30,40..4HC..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| Common parts | ||||
| 90080-11372 | ||||
| 93219-54010 | ||||
| 93560-54012 | ||||
ILLUST NO. 2 OF 2(9902-0408)UCK30,40,VCK30,40..4HC..LIMD,SR5
FRONT 6:4 SPRIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71025A - BRACKET SUB-ASSY, FRONT SEAT BACK | ||||
| 71025-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 71025-0C011 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C020B1 |
UCK40,VCK40..RCB..4HC..USA MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C020E0 |
UCK40,VCK40..RCB..4HC..USA MD.OAK,TRIM4# |
1 | ||
| 71811-0C020B2 |
UCK40,VCK40..RCB..4HC..USA MOON MIST,TRIM10 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71812-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C020B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C020E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71861-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.OAK,TRIM4# |
1 | ||
| 71861-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MOON MIST,TRIM10 |
1 | ||
| 71861-0C020B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MOON MIST,TRIM10 |
1 | ||
| 71861-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71862-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71875-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C020B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C020B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875-0C020E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C030E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71876-0C020B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MOON MIST,TRIM10 |
1 | ||
| 71876-0C020E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.OAK,TRIM4# |
1 | ||
| 71876-0C030B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MOON MIST,TRIM10 |
1 | ||
| 71876-0C020B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C030B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71876-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-0C040 |
UCK40,VCK40..RCB..4HC..USA W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72011-0C020 |
UCK40,VCK40..RCB..4HC..USA W(FRONT CAPTAIN SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT) |
1 | ||
| 72012-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 72021-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT) |
1 | ||
| 72022-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72060 - ROLLER ASSY, REAR SEAT CUSHION, LOWER | ||||
| 72060-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137-0C040 |
VCK30,40..RCB W(FRONT BENCH SEAT) |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-0C090 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C040 |
VCK40..RCB;UCK40,VCK30..DLX W(FRONT BENCH SEAT) |
1 | ||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
2 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P9 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 72525-16010B8 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-16010E2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72525G - HANDLE, FRONT SEAT BACK LOCK | ||||
| 72525-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.OAK,TRIM4# |
1 | ||
| 72525-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MOON MIST,TRIM10 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010E2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72526-16010B8 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526-16010P9 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MOON MIST,TRIM10 |
1 | ||
| 72551-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 72551-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.OAK,TRIM4# |
1 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 72833A - PLATE, SEAT CENTER ARMREST, INNER | ||||
| 72833-0C030 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 72991-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MOON MIST,TRIM10 |
1 | ||
| 72991-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.OAK,TRIM4# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72992-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 72992-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MOON MIST,TRIM10 |
1 | ||
| 72992-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 72825-0C040 | ||||
| 90080-10047 | ||||
| 90080-10097 | ||||
| 90080-10114 | ||||
| 90080-10248 | ||||
| 90080-11396 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90119-10381 | ||||
| 90179-10065 | ||||
| 91511-60825 | ||||
| 91651-60816 | ||||
(9902-0408)VCK40..RCB ; (9902-0408)UCK40,VCK30..DLX
FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-0C030B3 |
VCK40..RCB..4HC..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C030B2 |
VCK40..RCB..4HC..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C030E1 |
VCK40..RCB..4HC;UCK40,VCK30..4HC..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-0C020B4 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
1 | ||
| 71073-0C020E2 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71073-0C020B5 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-04030 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-04030 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 71311-04020 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71318A - HOOK, FRONT SEAT BACK LOCK | ||||
| 71318-0C010 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-04010 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-04010 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71389A - SPACER, CENTER SEAT HINGE | ||||
| 71389-04020 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-0C030E0 |
VCK40..RCB..4HC;UCK40,VCK30..4HC..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-0C030B1 |
VCK40..RCB..4HC..USA SEAT = TYPE E-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71410-0C030B0 |
VCK40..RCB..4HC..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C020E0 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430-0C020B0 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71051-0C020 |
VCK40..RCB..4HC;UCK40,VCK30..4HC..DLX SEAT = TYPE E-*104 |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71551-0C010 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-0C020 |
VCK40..RCB..4HC;UCK40,VCK30..4HC..DLX SEAT = TYPE E-*104 |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71630-0C010 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-04030 |
VCK40..RCB;UCK40,VCK30..DLX |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-04010B2 |
VCK40..RCB..USA MD.CHARCOAL,TRIM11 |
1 | ||
| 71831-04010E1 |
VCK40..RCB;UCK40,VCK30..DLX MD.OAK,TRIM4# |
1 | ||
| 71831-04010B3 |
VCK40..RCB..USA MOON MIST,TRIM10 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-04010B2 |
VCK40..RCB..USA MD.CHARCOAL,TRIM11 |
1 | ||
| 71832-04010B3 |
VCK40..RCB..USA MOON MIST,TRIM10 |
1 | ||
| 71832-04010E1 |
VCK40..RCB;UCK40,VCK30..DLX MD.OAK,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.OAK,TRIM4# |
2 | ||
| 71910-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B3 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
2 | ||
| 71910-0C020E1 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
2 | ||
| 71910-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.OAK,TRIM4# |
2 | ||
| 71910-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B3 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
2 | ||
| 71910-0C020E1 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
2 | ||
| 71910-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-0C010 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137-0C040 |
VCK30,40..RCB W(FRONT BENCH SEAT) |
1 | ||
| 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C040 |
VCK40..RCB;UCK40,VCK30..DLX W(FRONT BENCH SEAT) |
1 | ||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-0C010 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-0C010 |
VCK40..RCB;UCK40,VCK30..DLX |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-0C060B3 |
UCK30,40,VCK30,40..4HC..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 72810-0C060E1 |
UCK30,40,VCK30,40..4HC..SR5 SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 72810-0C060B2 |
UCK30,40,VCK30,40..4HC..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| Common parts | ||||
| 90080-11104 | ||||
| 90082-35008 | ||||
| 90084-11053 | ||||
| 90119-10381 | ||||
| 90179-08249 | ||||
| 93560-55014 | ||||
| 94170-60820 | ||||
| 94185-60800 | ||||
ILLUST NO. 1 OF 2(9902-0408)UCK30,40,VCK30,40..LIMD,SR5
FRONT CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C040B3 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C040E1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-0C060E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-0C040B4 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C060B4 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C041E1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71071-0C060B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C041B3 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C041B4 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C010E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71072-0C010B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71071-0C060B4 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C060E1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71072-0C010B4 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C060B3 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71073-0C030B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C030B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71073-0C030E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71073-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71074-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71074-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71074-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71410-0C060E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71410-0C060B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71410-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71410-0C060B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71420-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71420-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71420-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71420-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71420-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71430-0C030B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71430-0C051B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C051E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71430-0C030B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71430-0C030E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71430-0C051B2 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0C040B0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440-0C011B2 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440-0C011E1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71440-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 71440-0C040E0 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71440-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71440-0C040B1 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71440-0C011B3 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
1 | ||
| 71440-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0C030 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71051-0C050 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE A-*104 |
1 | ||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B OR TYPE C-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 |
1 | ||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 71511-0C050 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C020 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71551-0C040 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B OR TYPE C-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71552-0C030 |
UCK30,40,VCK30,40..4HC..SR5 W(FRONT 6:4 SPRIT SEAT) & SEAT = TYPE B-*104 |
1 | ||
| 71552-0C060 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT & LEATHER SEAT) & SEAT = TYPE C-*104 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0C040 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71610-0C030 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-0C040 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71610-0C050 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71630-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71640-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.OAK,TRIM4# |
2 | ||
| 71910-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B3 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
2 | ||
| 71910-0C020E1 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
2 | ||
| 71910-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C050E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.OAK,TRIM4# |
2 | ||
| 71910-0C050B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MD.CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B3 |
VCK40..RCB..USA SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM11 |
2 | ||
| 71910-0C020B1 |
VCK40..RCB..USA SEAT = TYPE E-*104,MOON MIST,TRIM10 |
2 | ||
| 71910-0C020E1 |
VCK40..RCB;UCK40,VCK30..DLX SEAT = TYPE E-*104,MEDIUM OAK,TRIM4# |
2 | ||
| 71910-0C050B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0C010E0 |
UCK30,40,VCK30,40 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W(LOCK),MOON MIST,TRIM10 |
2 | ||
| 71931-0C010E0 |
UCK30,40,VCK30,40 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
2 | ||
| 71931-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 W/O(LOCK),MOON MIST,TRIM10 |
2 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 72810-0C011E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM OAK-TYLER,TRIM4# |
1 | ||
| 72810-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 72810-0C011B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL-TYLE,TRIM11 |
1 | ||
| 72810-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 72810-0C011B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM OAK,TRIM4# |
1 | ||
| 72820-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 72820-0C010B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 72820-0C011B0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MOON MIST,TRIM10 |
1 | ||
| 72820-0C011E0 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM OAK-TYLER,TRIM4# |
1 | ||
| 72820-0C011B1 |
VCK40..ACB..5F;VCK40..4HC..SR5;UCK30,40,VCK30..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL-TYLE,TRIM11 |
1 | ||
| Common parts | ||||
| 90084-10008 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56003 | ||||
| 90167-40044 | ||||
ILLUST NO. 2 OF 2(9902-0408)UCK30,40,VCK30,40..LIMD,SR5
FRONT CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C020B1 |
UCK40,VCK40..RCB..4HC..USA MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C020E0 |
UCK40,VCK40..RCB..4HC..USA MD.OAK,TRIM4# |
1 | ||
| 71811-0C020B2 |
UCK40,VCK40..RCB..4HC..USA MOON MIST,TRIM10 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71812-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C020B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C020E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71861-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.OAK,TRIM4# |
1 | ||
| 71861-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MOON MIST,TRIM10 |
1 | ||
| 71861-0C020B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MOON MIST,TRIM10 |
1 | ||
| 71861-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71862-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71875-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C020B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C020B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875-0C020E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C030E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71876-0C020B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MOON MIST,TRIM10 |
1 | ||
| 71876-0C020E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.OAK,TRIM4# |
1 | ||
| 71876-0C030B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MOON MIST,TRIM10 |
1 | ||
| 71876-0C020B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C030B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71876-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-0C040 |
UCK40,VCK40..RCB..4HC..USA W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72011-0C020 |
UCK40,VCK40..RCB..4HC..USA W(FRONT CAPTAIN SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT) |
1 | ||
| 72012-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 72021-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-0C020 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT) |
1 | ||
| 72022-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137-0C040 |
VCK30,40..RCB W(FRONT BENCH SEAT) |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-0C090 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C040 |
VCK40..RCB;UCK40,VCK30..DLX W(FRONT BENCH SEAT) |
1 | ||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
2 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020B9 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 72457-22020E4 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72457-22020P0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P9 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 72525-16010B8 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-16010E2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010E2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72526-16010B8 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526-16010P9 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| Common parts | ||||
| 90080-10248 | ||||
| 90080-11396 | ||||
| 90082-61005 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90119-10381 | ||||
| 90520-01006 | ||||
| 91651-60816 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 2(9902-0408)UCK30,40,VCK30,40..LIMD,SR5
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C020B1 |
UCK40,VCK40..RCB..4HC..USA MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C020E0 |
UCK40,VCK40..RCB..4HC..USA MD.OAK,TRIM4# |
1 | ||
| 71811-0C020B2 |
UCK40,VCK40..RCB..4HC..USA MOON MIST,TRIM10 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71812-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C020B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C020E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71861-0C010E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.OAK,TRIM4# |
1 | ||
| 71861-0C010B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MOON MIST,TRIM10 |
1 | ||
| 71861-0C020B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MOON MIST,TRIM10 |
1 | ||
| 71861-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71862-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71875-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C020B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C020B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71875-0C020E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C030E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71876-0C020B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MOON MIST,TRIM10 |
1 | ||
| 71876-0C020E0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.OAK,TRIM4# |
1 | ||
| 71876-0C030B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MOON MIST,TRIM10 |
1 | ||
| 71876-0C020B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C030B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C010B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 71876-0C010E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-0C040 |
UCK40,VCK40..RCB..4HC..USA W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72011-0C020 |
UCK40,VCK40..RCB..4HC..USA W(FRONT CAPTAIN SEAT) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 72021-0C010 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137-0C040 |
VCK30,40..RCB W(FRONT BENCH SEAT) |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-0C090 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER | ||||
| 72137-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C030 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C040 |
VCK40..RCB;UCK40,VCK30..DLX W(FRONT BENCH SEAT) |
1 | ||
| 72137-0C020 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010P9 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 72525-16010B8 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-16010E2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-10248 | ||||
| 90080-11396 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90119-10381 | ||||
| 90467-10188 | ||||
| 91651-60816 | ||||
| 93560-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
