VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )GSK30,UCK30,40,VCK30,40

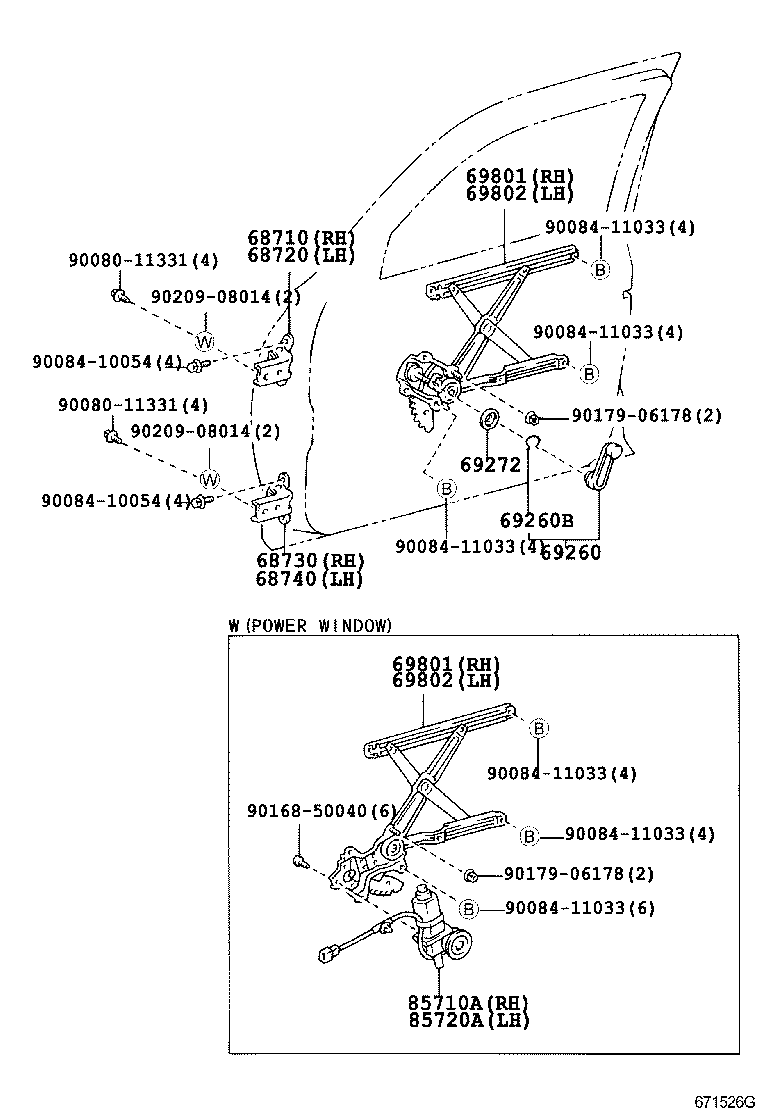

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710A 85720A 9008011331 9008011331 9008410054 9008410054 9008411033 9008411033 9008411033 9008411033 9008411033 9008411033 9016850040 9017906178 9017906178 9020908014 9020908014
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0C010

UCK30,40,VCK30,40

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0C010

UCK30,40,VCK30,40

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-0C010

UCK30,40,VCK30,40

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-0C010

UCK30,40,VCK30,40

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-AA010B3

UCK30,40,VCK30,40..SR5

MD.CHARCOAL,TRIM11

 2
69260-AA010B2

UCK30,40,VCK30,40..SR5

MOON MIST,TRIM10

 2
69260-AA010E0

UCK30,40,VCK30,40..DLX,SR5

MD.OAK,TRIM4#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52001

UCK30,40,VCK30,40..DLX,SR5

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-03010

UCK30,40,VCK30,40..DLX,SR5

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0C010

UCK30,40,VCK30,40..LIMD,SR5

W(POWER WINDOW)

 1
69810-0C010

UCK30,40,VCK30,40..DLX,SR5

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0C010

UCK30,40,VCK30,40..LIMD,SR5

W(POWER WINDOW)

 1
69810-0C010

UCK30,40,VCK30,40..DLX,SR5

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-0C010

UCK30,40,VCK30,40..DLX,SR5

 1
69802-0C010

UCK30,40,VCK30,40..LIMD,SR5

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-0C010

UCK30,40,VCK30,40..DLX,SR5

 1
69802-0C010

UCK30,40,VCK30,40..LIMD,SR5

W(POWER WINDOW)

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-0C010

UCK30,40,VCK30,40..LIMD,SR5

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-0C010

UCK30,40,VCK30,40..LIMD,SR5

 1
Common parts
90080-11331
90084-10054
90084-11033
90168-50040
90179-06178
90209-08014
