VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902- )GSK30,UCK30,40,VCK30,40..SD

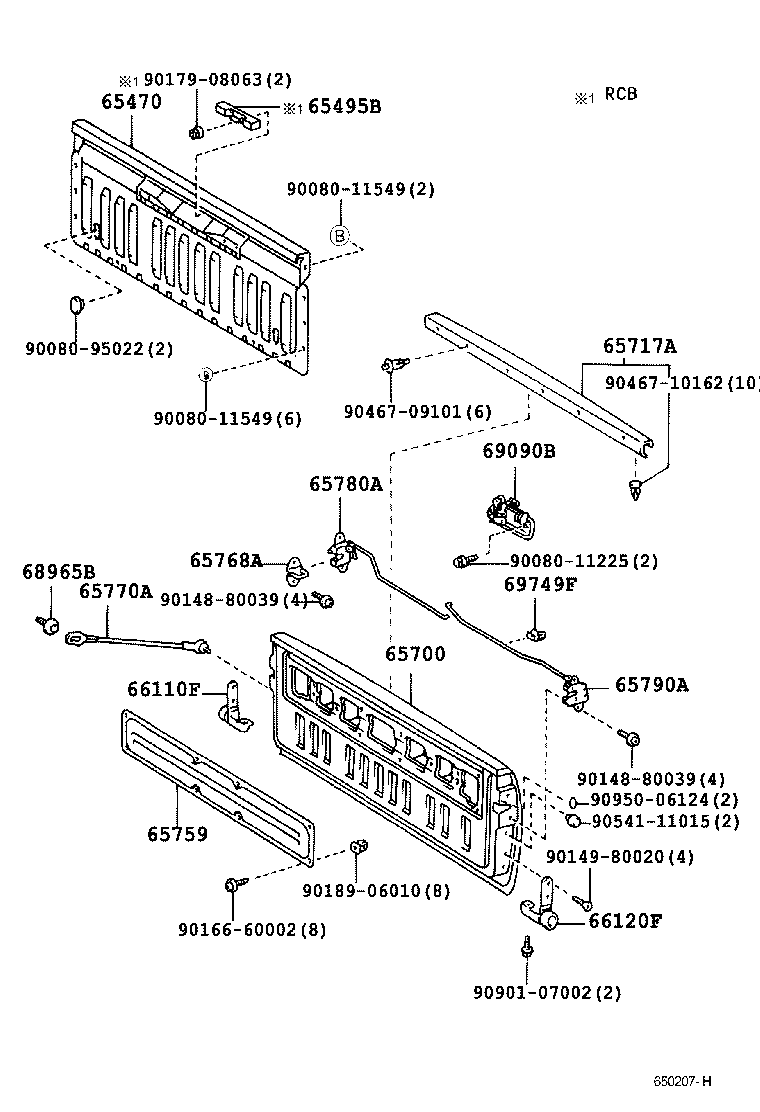

Click highlighted areas on diagram

diagram 65470 65495B 65700 65717A 65759 65768A 65770A 65780A 65790A 66110F 66120F 68965B 69090B 69749F 9008011225 9008011549 9008011549 9008095022 9014880039 9014880039 9014980020 9016660002 9017908063 9018906010 9046709101 9046710162 9054111015 9090107002 9095006124
Part # Description Qty Price
65470 - BOARD ASSY, HEADER
65405-0C010

UCK30,40,VCK30,40

 1
65495B - WEIGHT, HEADER BOARD
65495-34020

UCK40,VCK30,40..RCB

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-0C020

UCK30,40,VCK30,40

 1
65700-0C021

UCK30,40,VCK30,40

 1
65717A - PROTECTOR, TAIL GATE, RH
65717-0C010

UCK30,40,VCK30,40

 1
65759 - COVER, TAIL GATE SERVICE HOLE
65759-0C010

UCK30,40,VCK30,40

 1
65768A - STRIKER, TAIL GATE LOCK
65768-0C010

UCK30,40,VCK30,40

 2
65770A - STAY ASSY, TAIL GATE
65770-0C010

UCK30,40,VCK30,40

 2
65770-0C030

UCK30,40,VCK30,40

LH

 1
65770-0C020

UCK30,40,VCK30,40

RH

 1
65780A - LOCK ASSY, TAIL GATE, RH
65780-0C010

UCK30,40,VCK30,40

 1
65790A - LOCK ASSY, TAIL GATE, LH
65790-0C010

UCK30,40,VCK30,40

 1
66110F - HINGE ASSY, TAIL GATE, RH
66110-0C011

UCK30,40,VCK30,40

 1
66110-0C010

UCK30,40,VCK30,40

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0C011

UCK30,40,VCK30,40

 1
66120-0C010

UCK30,40,VCK30,40

 1
68965B - SHAFT, TAIL GATE STAY
68965-0C010

UCK30,40,VCK30,40

 2
69090B - HANDLE ASSY, TAIL GATE
69090-0C010

UCK30,40,VCK30,40..DLX,SR5

BLACK(LESS COLOR)

 1
69090-0C010

UCK30,40,VCK30,40

BLACK(LESS COLOR)

 1
69749F - CLAMP, RAIL GATE LOCK LINK
69749-34010

UCK30,40,VCK30,40

 2
Common parts
90080-11225
90080-11549
90080-95022
90148-80039
90149-80020
90166-60002
90179-08063
90189-06010
90467-09101
90467-10162
90541-11015
90901-07002
90950-06124
