VCK40L-TRSSKA (1999)

Toyota Tundra

Production Feb 1999 - Aug 2002
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0208)ACB ; (9902-0408)RCB

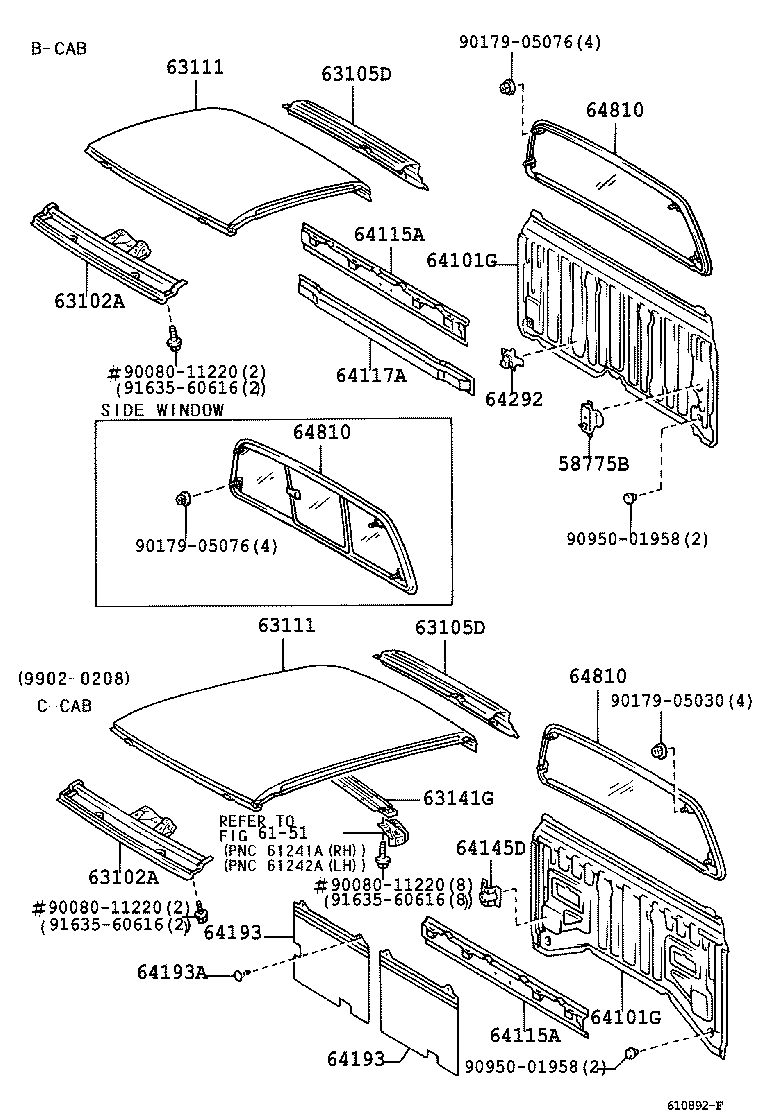

Click highlighted areas on diagram

diagram 58775B 6151 63102A 63102A 63105D 63105D 63111 63111 63141G 64101G 64101G 64115A 64115A 64117A 64145D 64193 64193 64193A 64292 64810 64810 64810 9008011220 9008011220 9008011220 9017905030 9017905076 9017905076 9095001958 9095001958 9163560616 9163560616 9163560616
Part # Description Qty Price
58775B - BRACKET, JACK ROD SUPPORT, NO.1
58775-0C010

UCK40,VCK30,40..RCB

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0C010

UCK30,40,VCK30,40

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0C010

UCK30,40,VCK30,40

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-34030

UCK30,40,VCK30,40

 1
63105-0C030

UCK30,40,VCK30,40

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-34030

UCK30,40,VCK30,40

 1
63105-0C030

UCK30,40,VCK30,40

 1
63111 - PANEL, ROOF
63111-0C020

UCK40,VCK30,40..RCB

 1
63111 - PANEL, ROOF
63111-0C020

UCK40,VCK30,40..RCB

 1
64101G - PANEL SUB-ASSY, BACK
64111-0C020

UCK40,VCK30,40..RCB

 1
64101G - PANEL SUB-ASSY, BACK
64111-0C020

UCK40,VCK30,40..RCB

 1
64115A - REINFORCEMENT, BACK, UPPER
64105-34010

UCK30,40,VCK30,40

 1
64115A - REINFORCEMENT, BACK, UPPER
64105-34010

UCK30,40,VCK30,40

 1
64117A - REINFORCEMENT, CAB BACK, LOWER
64117-34020

UCK40,VCK30,40..RCB

 1
64292 - CLAMP, JACK HANDLE
58706-34020

UCK40,VCK30,40..RCB

 3
58706-34020

UCK40,VCK30,40..RCB

 3
64810 - WINDOW ASSY, BACK
64810-0C020

UCK30,40,VCK30,40..DLX,SR5

*TT,T=3.2,GREEN

 1
64810-0C030

UCK30,40,VCK30,40..LIMD,SR5

*TT,T=3.2,GRAY

 1
64810-0C010

UCK30,40,VCK30,40..DLX,SR5

*TT,T=3.5,GREEN

 1
64810 - WINDOW ASSY, BACK
64810-0C020

UCK30,40,VCK30,40..DLX,SR5

*TT,T=3.2,GREEN

 1
64810-0C030

UCK30,40,VCK30,40..LIMD,SR5

*TT,T=3.2,GRAY

 1
64810-0C010

UCK30,40,VCK30,40..DLX,SR5

*TT,T=3.5,GREEN

 1
64810 - WINDOW ASSY, BACK
64810-0C020

UCK30,40,VCK30,40..DLX,SR5

*TT,T=3.2,GREEN

 1
64810-0C030

UCK30,40,VCK30,40..LIMD,SR5

*TT,T=3.2,GRAY

 1
64810-0C010

UCK30,40,VCK30,40..DLX,SR5

*TT,T=3.5,GREEN

 1
Common parts
90080-11220
90179-05030
90179-05076
90950-01958
91635-60616
Linked diagrams
6151
